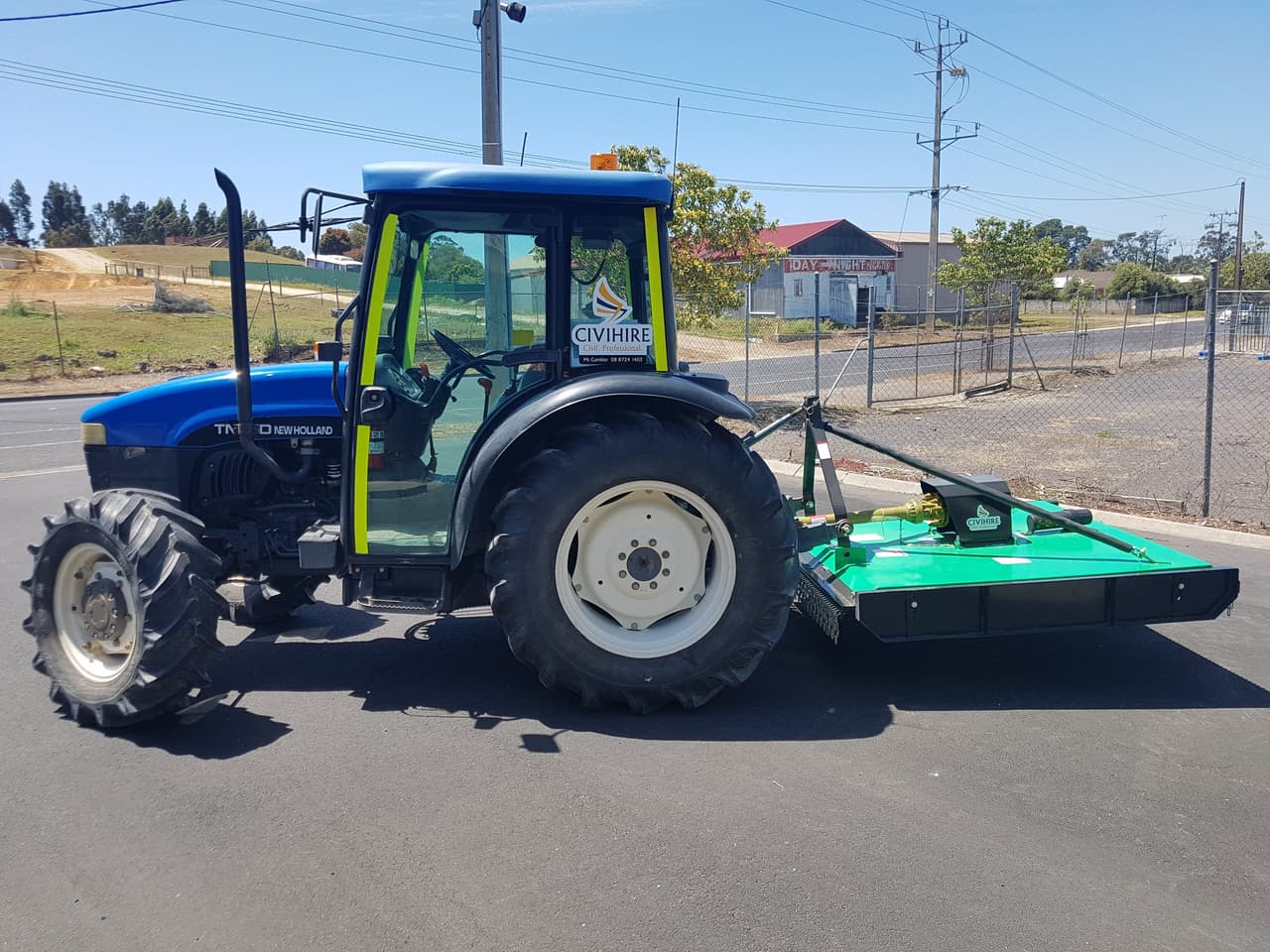

New Holland TN75FA

Last Updated: June 2024

Overview

The New Holland TN75FA is a tractor adept for varying tasks, equipped with a powerful engine rated at 72 horsepower and a displacement of 238 cubic inches. The tractor's capabilities are enhanced by its 4-cylinder engine that operates optimally at 2300 RPM and reaches a maximum torque at 1400 RPM. The TN75FA offers versatility with its 16 forward and 16 reverse gear options through the Synchro Command Plus transmission system. With a notable hitch lift capacity of over 4300 pounds and a robust hydraulic system capable of 12.4 gallons per minute flow capacity, this model can handle a variety of implements and tasks efficiently. The operating weight stands at 5780 lbs, and the tractor demonstrates maneuverability with a turning radius of 10.5 feet. Notably, this tractor may come in either a 4x2 or 4x4 drive type, with an operating voltage of 12 volts and an 85-amp alternator.
Show more...

Key Specifications

Power Output: 72

Transmission: Synchro Command Plus

Drive Type: 4WD

Operating Weight: 5780

Lift Capacity: 4334.3

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Natural
Cylinders
4
Displacement (ci)
238
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
72

Transmission

Type
Synchro Command Plus
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
60 (Width outside frame and Overall Width are both given as 5 ft)
Height (in)
93.6 (Higher of the two heights given: Top of Cab and ROPS/FOPS)
Operating Weight (lb)
5780

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 or 4x4 based on tire data
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
Unknown - size 380/70R24 provided without diameter
Rear Tire Width (in)
Unknown - size 380/70R24 provided without width
Front/Rear Rim Diameter (in)
Unknown - size 380/70R24 suggests a 24-inch rim diameter
Tire Type
Unknown - likely agricultural based on model and rear tire size
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
Unknown - but likely Category 2 based on 'Cat II' hitch type
Hitch Position
Rear
Hitch Capacity (lb)
4334.3
Operator Station Type
Unknown - both Cab and ROPS/FOPS heights are provided
Starter Type
-
Brake Type
-
Hydraulic System Type
-
