New Holland TN70

Last Updated: June 2024

Overview

The New Holland TN70 is a versatile utility tractor that was manufactured by New Holland from 2000 to 2003. It comes in both 2WD and 4WD variants, with a choice of a foldable ROPS or an optional Cab configuration. This tractor is powered by a turbocharged 2.9 L diesel engine from Iveco, generating an output of 69 hp. It offers several transmission options including gear type, partially synchronized, and two-speed power shift with corresponding forward and reverse gear counts. Equipped with power steering, differential hydraulic wet disc brakes, and an open center hydraulic system, the TN70 can handle a variety of tasks. It has a category II hitch with a lift capacity of 3960 lbs, and a 540 rpm independent rear PTO. The tractor's durable build and range of features make it suitable for a variety of utility tasks in farming operations.

Key Specifications

Category: Utility

Power Output: 69 hp

Transmission: Gear type or Partially synchronized or Two-speed power shift

Drive Type: 2WD/4WD

Operating Weight: 4850 to 5800 lbs (dependent on configuration)

Fuel Type: Diesel

Image Gallery

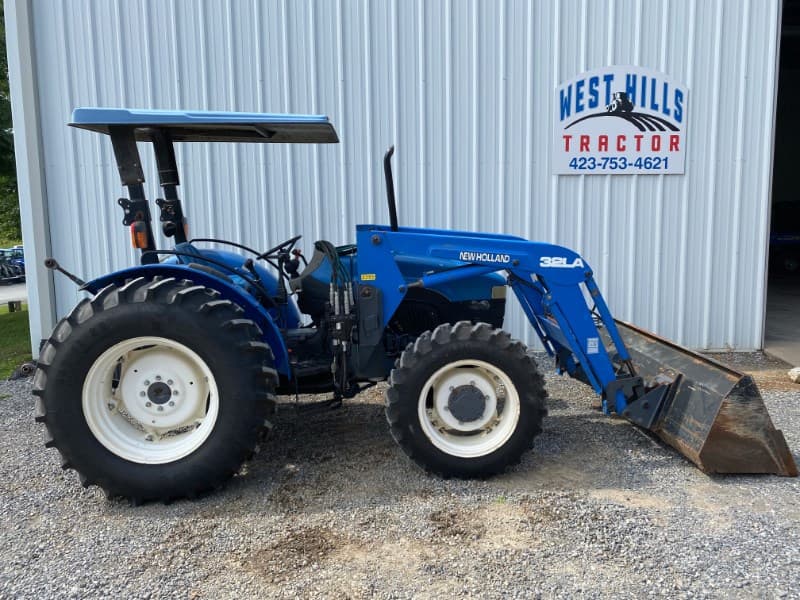

New Holland TN70 Tractor

New Holland TN70 vs. Similar Tractors

Power Output

Average

Greater than 63% of similar tractors.

Hitch Capacity

Average

Greater than 68% of similar tractors.

Operating Weight

Above Average

Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: 8035
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 179 ci
Bore (in): 4.094 in
Stroke (in): 4.528 in
Rated RPM: 2300
Power Output (hp): 69 hp

Transmission

Type: Gear type or Partially synchronized or Two-speed power shift
Forward Gears: 8 or 16 or 32 (depending on transmission type)
Reverse Gears: 8 or 16 (depending on transmission type)
Total Gears: -

Dimensions

Length (in): 155 in
Width (in): 67.2 in
Height (in): 94.9 in (ROP) or 90.6 in (Cab)
Operating Weight (lb): 4850 to 5800 lbs (dependent on configuration)

Power Take-Off (PTO)

PTO Type: Independent with dry disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2003
Hitch Type: -
Hitch Category: II
Hitch Position: -
Hitch Capacity (lb): 3960 lbs
Operator Station Type: Two-post folding ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Open center
