New Holland TM165

Last Updated: July 2024

Overview

The New Holland TM165 is a row-crop tractor with options for 2WD or 4WD front wheel assist configurations, including SuperSteer and Terraglide. It has an 18-speed partial powershift transmission and a 6-cylinder turbocharged diesel engine from New Holland producing 165 rated hp and up to 148.3 hp. Key specs include a 4.4" bore x 5" stroke, 487 lb-ft max torque, and 48.7% torque rise. The closed-center hydraulic system delivers 32.9 GPM flow and 41.9 hp. The 3-point hitch (Cat III/II) can lift up to 8,455 lbs. Detailed performance data from the Nebraska Tractor Test Lab is included.
Show more...

Key Specifications

Category: Row Crop

Power Output: 165; Maximum power: 148.3 HP at 2164 rpm

Transmission: Selective gear fixed ratio with partial (6) range operator controlled powershift

Drive Type: 2WD and 4WD options (front wheel assist)

Operating Weight: 14455; Unladen weight: 13,845 lb (6,280 kg)

Fuel Type: Diesel; Fuel weight: 6.98 lbs/gal

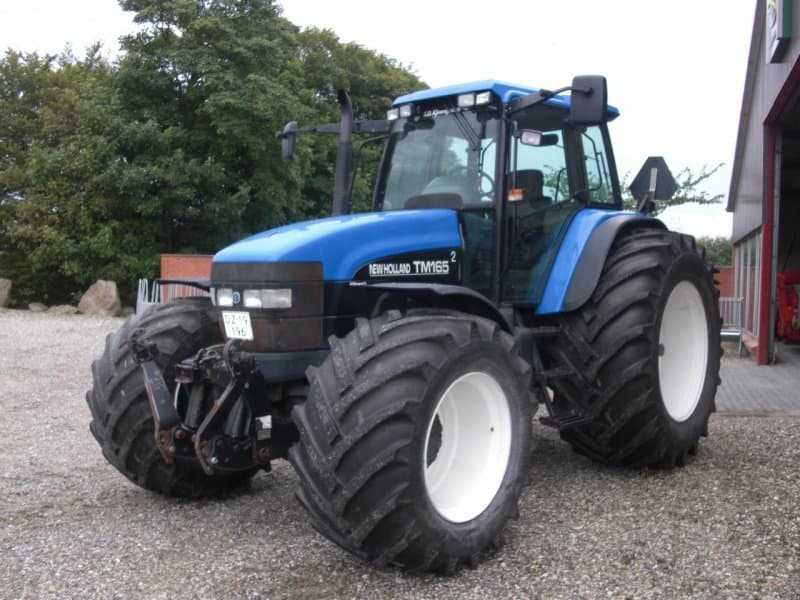

Image Gallery

New Holland TM165 Tractor New Holland TM165 Tractor New Holland TM165 Tractor New Holland TM165 Tractor New Holland TM165 Tractor New Holland TM165 Tractor New Holland TM165 Tractor New Holland TM165 Tractor

New Holland TM165 vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel; Fuel weight: 6.98 lbs/gal
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.40
Stroke (in)
5.00
Rated RPM
2300
Power Output (hp)
165; Maximum power: 148.3 HP at 2164 rpm

Transmission

Type
Selective gear fixed ratio with partial (6) range operator controlled powershift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
180.5 (2WD) / 185.7 (4WD) / 188.1 (Terraglide) / 191.9 (SuperSteer)
Width (in)
79.2
Height (in)
Unknown (Cab: 113.4 inches, Exhaust: 118.9 inches)
Operating Weight (lb)
14455; Unladen weight: 13,845 lb (6,280 kg)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD (SuperSteer / TerraGlide options available); Front tread width: 60.0 in (1524 mm) to 88.0 in (2235 mm), Rear tread width: 60.0 in (1524 mm) to 88.0 in (2235 mm), Wheelbase: 104.3 in (2650 mm) (2WD), 104.3 in (2650 mm) (4WD)
Drive Type
2WD and 4WD options (front wheel assist)
Steering Type
Power
Coolant Capacity (qts)
27.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Rear tires: 20.8R38; Front tires: 16.9R28; Tire pressures: 16 psi (110 kPa) (front), 16 psi (110 kPa) (rear)
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab; Sound level readings provided for different conditions
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing (CCLS); Pump delivery rate: 32.9 GPM at minimum pressure; Hydraulic power: 41.9 HP with delivery pressure of 2465 psi

Test Results

Nebraska Tractor Test Laboratory - Test Date: February to April, 2000

Maximum Power and Fuel Consumption

  • Rated Engine Speed: 143.5 HP (107.0 kW) at 2300 rpm, consuming 9.25 Gal/hr (35.03 l/h) with a fuel efficiency of 0.451 lb/hp.hr (0.274 kg/kW.h)
  • Maximum Power: 148.3 HP (110.6 kW) at 2164 rpm, consuming 9.15 Gal/hr (34.64 l/h) with a fuel efficiency of 0.431 lb/hp.hr (0.262 kg/kW.h)
  • Standard Power Take-off Speed (1000 rpm): 147.8 HP (110.2 kW) at 2121 rpm, consuming 8.98 Gal/hr (34.01 l/h) with a fuel efficiency of 0.425 lb/hp.hr (0.258 kg/kW.h)

Drawbar Performance

  • Maximum Power (9th Gear): 125.0 HP (93.2 kW) with a drawbar pull of 10445 lbs (46.5 kN) at a speed of 4.49 mph (7.22 km/h), with a slip of 4.6%, consuming 0.526 lb/hp.hr (0.320 kg/kW.h)
  • 75% of Maximum Pull (9th Gear): 99.2 HP (74.0 kW) with a drawbar pull of 7815 lbs (34.8 kN) at a speed of 4.76 mph (7.67 km/h), with a slip of 3.3%, consuming 0.568 lb/hp.hr (0.345 kg/kW.h)
  • 50% of Maximum Pull (9th Gear): 67.5 HP (50.3 kW) with a drawbar pull of 5225 lbs (23.2 kN) at a speed of 4.84 mph (7.79 km/h), with a slip of 2.3%, consuming 0.668 lb/hp.hr (0.406 kg/kW.h)

Torque and Engine Performance

  • Maximum Torque: 487.1 lb.-ft. (660.4 Nm) at 1298 rpm
  • Torque Rise: 48.7% with a torque rise at 1800 rpm of 29%

Hydraulic Performance

  • Maximum Force Exerted: 7125 lbs (31.7 kN) with 1 lift assist cylinder, 8455 lbs (37.6 kN) with 2 lift assist cylinders
  • Pump Delivery Rate: 32.9 GPM (124.6 l/min) at minimum pressure
  • Hydraulic Power: 41.9 HP (31.3 kW) with a delivery pressure of 2465 psi (170 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.44 Hp.hr/gal (3.24 kW.h/l)
  • Fuel Consumption: 9.25 Gal/hr (35.03 l/h) at 2300 rpm

    Nebraska Tractor Test Lab.(2000).Nebraska Summary: S346 New Holland TM165. Lincoln, NE:University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2831
