New Holland TM150

Last Updated: July 2024

Overview

The New Holland TM150 is a row-crop tractor with a turbocharged diesel engine produced by New Holland. It has a displacement of 456 cubic inches and generates a maximum power output of 124.0 horsepower at a rated RPM of 2201. The tractor is equipped with a selective gear fixed ratio transmission with partial (6) range operator-controlled powershift, offering 18 forward and 6 reverse gears. Key specifications include a wheelbase of 93.0 inches, rear tires of 20.8R38 and front tires of 16.9R28 (both at 12 psi), and an operating weight of 14130 pounds. The hydraulic system features a pump delivery rate of 31.2 GPM at minimum pressure and 26.8 GPM at maximum hydraulic power. The engine produces a maximum torque of 438.6 lb.-ft. at 1398 rpm with a torque rise of 48.2%. Fuel efficiency at standard PTO speed (1000 rpm) is 16.04 Hp.hr/gal.
Show more...

Key Specifications

Category: Row Crop

Power Output: 124.0

Transmission: Selective gear fixed ratio with partial (6) range operator-controlled powershift

Operating Weight: 14130

Fuel Type: Diesel

Image Gallery

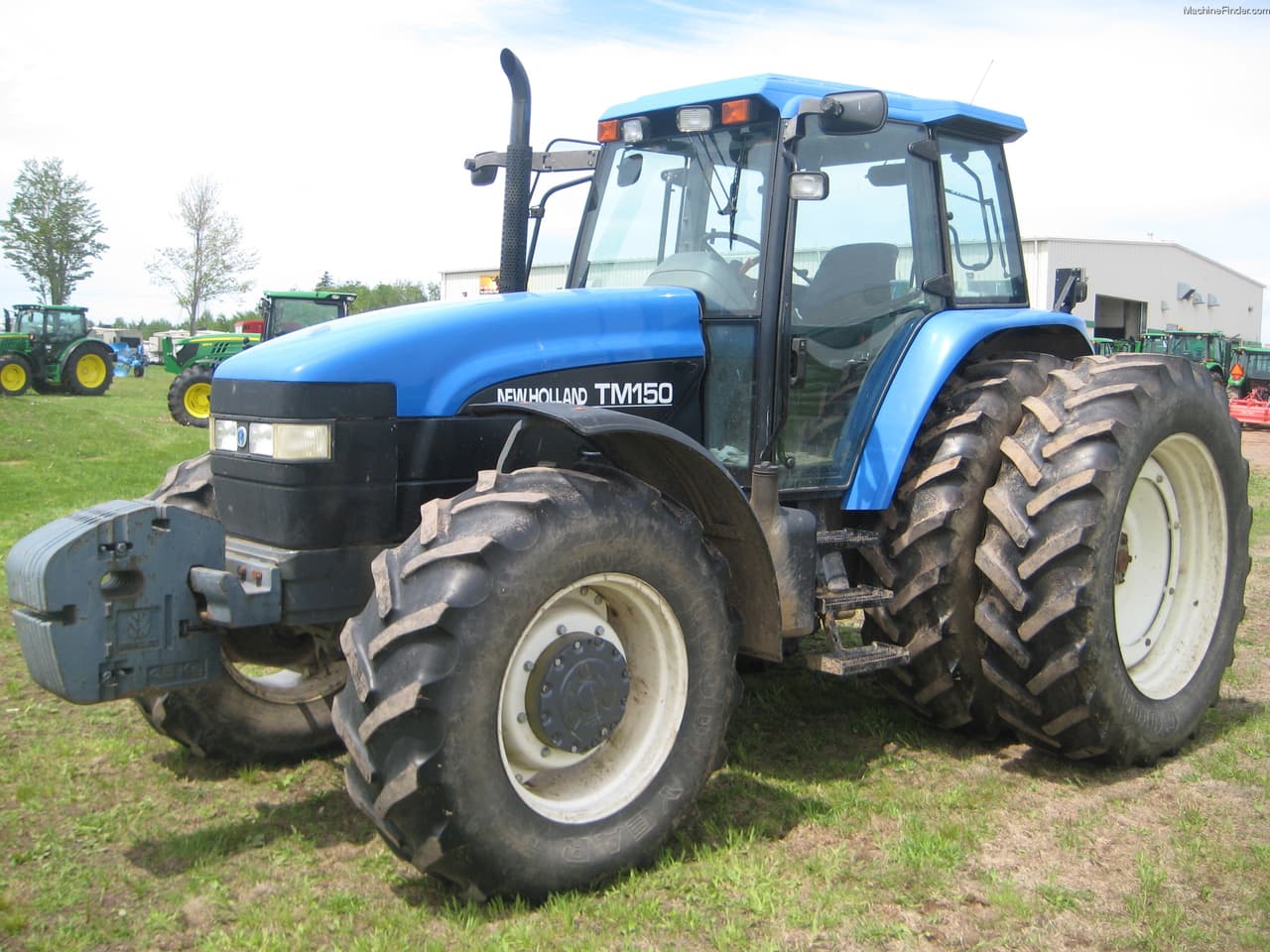

New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor New Holland TM150 Tractor

New Holland TM150 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.4
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
124.0

Transmission

Type
Selective gear fixed ratio with partial (6) range operator-controlled powershift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
180.5 (2WD) / 185.7 (4WD) / 188.1 (Terraglide) / 191.9 (SuperSteer)
Width (in)
79.2
Height (in)
-
Operating Weight (lb)
14130

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
27.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Rear tires: Two 20.8R38, **, 12 psi (83 kPa); Front tires: Two 16.9R28, **, 12 psi (83 kPa)
Manufacture - End Year
2002
Hitch Type
II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center load sensing (CCLS)

Test Results

Nebraska Tractor Test Laboratory - Test Date: February to April, 2000

Maximum Power and Fuel Consumption

  • Maximum Power at Rated Engine Speed: 124.0 HP (92.5 kW) at 2201 rpm
  • Fuel Consumption at Rated Engine Speed: 7.96 Gal/hr (30.15 l/h) with a fuel efficiency of 0.448 lb/hp.hr (0.273 kg/kW.h) and a power efficiency of 15.57 Hp.hr/gal (3.07 kW.h/l)
  • Maximum Power at 1000 PTO Speed: 126.7 HP (94.5 kW) at 2121 rpm
  • Maximum Power (2 hours): 130.9 HP (97.6 kW) at 1856 rpm with a fuel consumption of 7.41 Gal/hr (28.06 l/h)

Drawbar Performance

  • Maximum Power in 8th (2B) Gear: 105.0 HP (78.3 kW) with a drawbar pull of 9555 lbs (42.5 kN) and a speed of 4.12 mph (6.63 km/h), fuel consumption at 0.527 lb/hp.hr (0.321 kg/kW.h)
  • Power at 75% of Maximum Pull in 8th (2B) Gear: 81.9 HP (61.1 kW) with a drawbar pull of 7170 lbs (31.9 kN) and a speed of 4.28 mph (6.89 km/h), fuel consumption at 0.577 lb/hp.hr (0.351 kg/kW.h)
  • Power at 50% of Maximum Pull in 8th (2B) Gear: 56.1 HP (41.8 kW) with a drawbar pull of 4795 lbs (21.3 kN) and a speed of 4.38 mph (7.05 km/h), fuel consumption at 0.662 lb/hp.hr (0.403 kg/kW.h)

Torque and Engine Performance

  • Maximum Torque: 438.6 lb.-ft. (594.7 Nm) at 1398 rpm
  • Torque Rise: 48.2% with a rise at 1800 engine rpm of 28%

Hydraulic Performance

  • Maximum Force Exerted Through Whole Range: 7125 lbs (31.7 kN) with 1 lift assist cylinder, and 8320 lbs (37.0 kN) with 2 lift assist cylinders
  • Pump Delivery Rate at Minimum Pressure: 31.2 GPM (118.2 l/min)
  • Pump Delivery Rate at Maximum Hydraulic Power: 26.8 GPM (101.4 l/min) with a delivery pressure of 2540 psi (175 bar) and a hydraulic power of 39.7 HP (29.6 kW)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.04 Hp.hr/gal (3.16 kW.h/l)
  • Fuel Consumption at Standard PTO Speed: 7.89 Gal/hr (29.88 l/h) at 2121 rpm



Nebraska Tractor Test Lab. (2000). Nebraska Summary: S345 New Holland TM150. Lincoln, NE: University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2832
