New Holland TM130

Last Updated: July 2024

Overview

The New Holland TM130 is a model from the TM Series that was manufactured between 2002 and 2007. Equipped with a 6-cylinder turbocharged, air-to-air intercooled engine, this tractor provides a power output of 113.3 horsepower at rated engine speed with a displacement of 456 cubic inches. The engine delivers power at a rated RPM of 2200, with the engine's peak torque of 348.0 lb.-ft. reached at 1400 RPM, offering a torque rise of 28.7%. For handling different tasks, the TM130 comes with an 18-speed Power Command powershift forward transmission and 6 reverse gears. It has a Category 2 three-point hitch with a lift capacity of 7510 lbs through the whole range (with boost cylinder). The unladen weight is 11915 lbs. The overall length of the tractor is 186 inches, and its height to the top of the cab or ROPS/FOPS is 111.6 inches. The hydraulic system offers a pump delivery rate of 31.6 GPM at minimum pressure, providing 41.9 HP of hydraulic power. In drawbar performance tests, it achieved 95.1 HP in 8th gear with a fuel efficiency of 13.21 Hp.hr/gal.

Key Specifications

Power Output: 113.3

Transmission: Power Command powershift

Operating Weight: 11915

Lift Capacity: 7510

Image Gallery

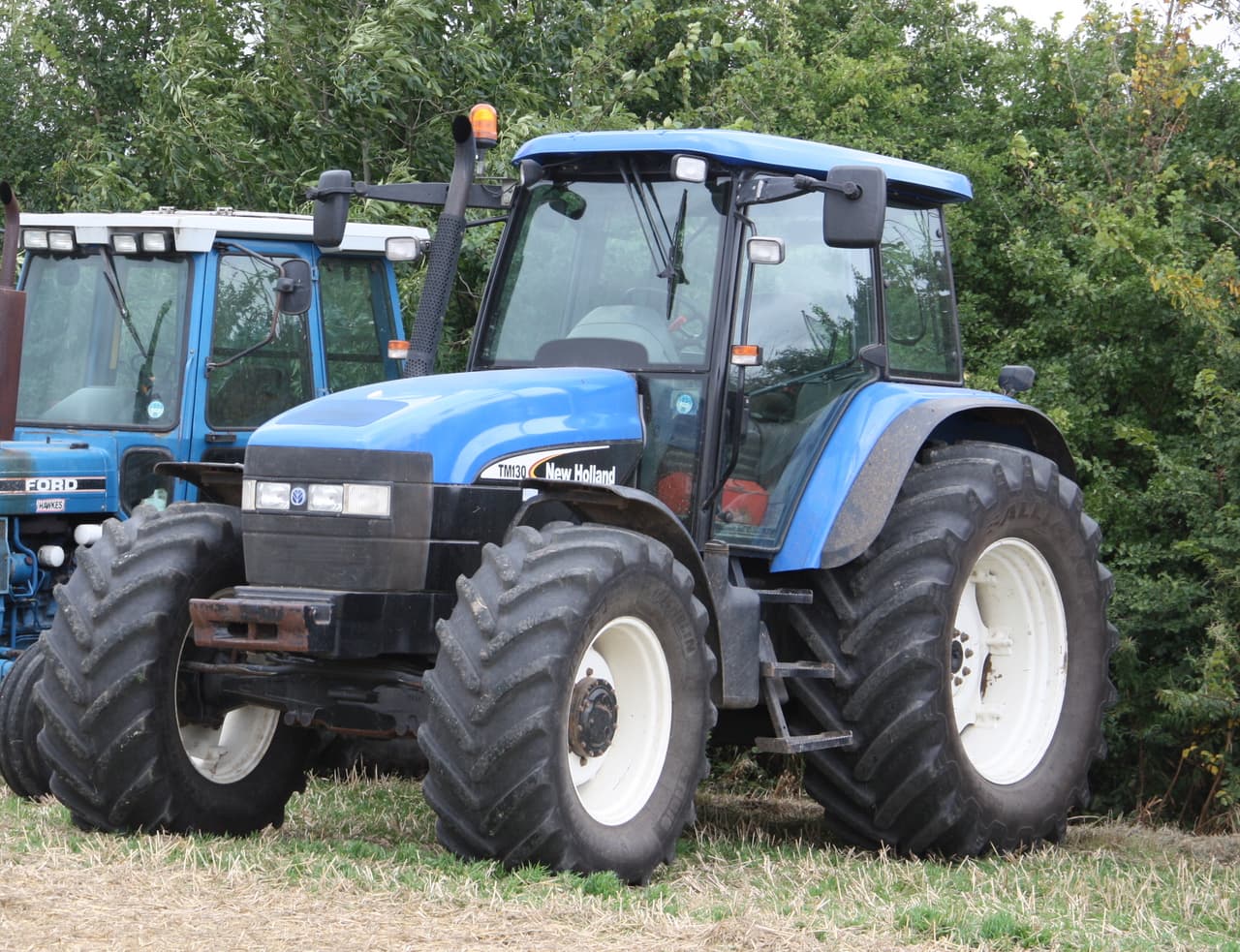

New Holland TM130 Tractor

Technical Specifications

Engine

Manufacturer: -
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: Turbocharged, air-to-air intercooled
Cylinders: 6
Displacement (ci): 456
Bore (in): -
Stroke (in): -
Rated RPM: 2200
Power Output (hp): 113.3

Transmission

Type: Power Command powershift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 186
Width (in): -
Height (in): 111.6
Operating Weight (lb): 11915

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 26.8
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2007
Hitch Type: Cat II
Hitch Category: Category 2
Hitch Position: Rear
Hitch Capacity (lb): 7510
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: December 2002 to March 2003

Maximum Power and Fuel Consumption

Maximum Power at Rated Engine Speed: 113.3 HP (84.5 kW) at 2200 rpm
Fuel Consumption at Rated Speed: 7.22 Gal/hr (27.33 l/h) with a fuel efficiency of 0.448 lb/hp.hr (0.272 kg/kW.h)
Standard PTO Speed (1000 rpm): 112.8 HP (84.1 kW) at 2121 rpm

Drawbar Performance

Maximum Power in 8th Gear (2B): 95.1 HP (70.9 kW) with a drawbar pull of 8725 lbs (38.8 kN) and a speed of 4.09 mph (6.58 km/h)
Fuel Consumption in 8th Gear (2B): 0.532 lb/hp.hr (0.323 kg/kW.h) with a fuel efficiency of 13.21 Hp.hr/gal (2.60 kW.h/l)

Torque and Engine Performance

Maximum Torque: 348.0 lb.-ft. (471.9 Nm) at 1400 rpm
Torque Rise: 28.7%

Hydraulic Performance

Maximum Force Exerted through Whole Range: 7510 lbs (33.4 kN) (with boost cylinder)
Pump Delivery Rate at Minimum Pressure: 31.6 GPM (119.5 l/min)
Hydraulic Power: 41.9 HP (31.2 kW) at a delivery pressure of 2540 psi (175 bar)

Efficiency at Reduced Engine Speed

75% of Pull in 9th Gear (3B): 77.1 HP (57.5 kW) at 1952 rpm with a fuel efficiency of 13.49 Hp.hr/gal (2.66 kW.h/l)

Nebraska Tractor Test Lab.(2002).Nebraska Summary: S340 New Holland TM130. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2835
