New Holland TM125

Last Updated: July 2024

Overview

The New Holland TM125 is a robust row-crop tractor with a maximum power output of 110.2 HP at 2060 rpm from its turbocharged 6-cylinder diesel engine. Key performance metrics include a maximum torque of 371.4 lb-ft at 1301 rpm with a 47.5% torque rise, fuel consumption of 6.55 Gal/hr at maximum power, and a drawbar performance of 87.2 HP with 7890 lbs of pull. The hydraulic system can exert up to 7215 lbs of force with lift assist. PTO performance is rated at 109.7 HP at 2121 rpm. The tractor has an operating weight of 11,765 lbs with a rear weight of 7185 lbs and front weight of 4745 lbs. Detailed tire sizes and oil types are per the test results specifications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 110.2

Transmission: Power shift

Operating Weight: 11765

Fuel Type: Turbocharged diesel

Image Gallery

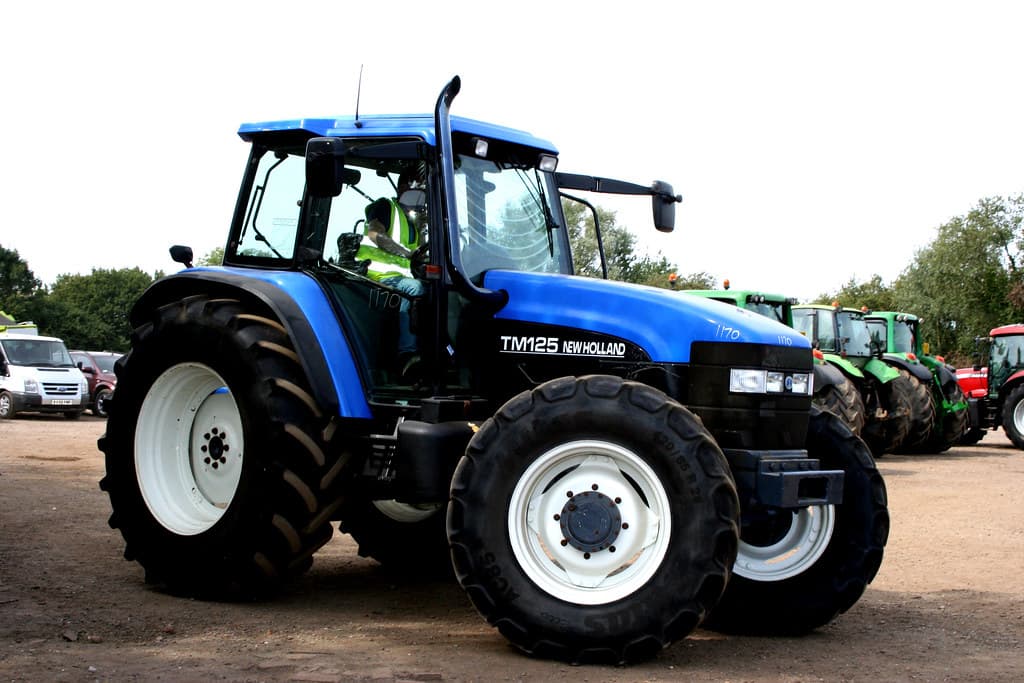

New Holland TM125 Tractor New Holland TM125 Tractor New Holland TM125 Tractor New Holland TM125 Tractor New Holland TM125 Tractor New Holland TM125 Tractor

New Holland TM125 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Average
Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.4
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
110.2

Transmission

Type
Power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
Unknown (assuming no extension: 180.5 for 2WD, 185.7 for 4WD)
Width (in)
89.0
Height (in)
-
Operating Weight (lb)
11765

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
26.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Load Sensing (CCLS)

Test Results

Nebraska Tractor Test Laboratory - Test Date: February to May, 2000

Maximum Power and Fuel Consumption

  • Maximum Power: 110.2 HP (82.2 kW) at 2060 rpm
  • Fuel Consumption at Maximum Power: 6.55 Gal/hr (24.79 l/h) with a fuel efficiency of 0.416 lb/hp.hr (0.253 kg/kW.h)
  • Standard PTO Speed: 109.7 HP (81.8 kW) at 2121 rpm with a fuel efficiency of 0.423 lb/hp.hr (0.258 kg/kW.h)

Drawbar Performance

  • Maximum Power (8th Gear): 87.2 HP (65.0 kW) with a drawbar pull of 7890 lbs (35.1 kN) and a speed of 4.14 mph (6.66 km/h)
  • Fuel Consumption at Maximum Power: 0.539 lb/hp.hr (0.328 kg/kW.h) with a fuel efficiency of 12.94 Hp.hr/gal (2.55 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 371.4 lb.-ft. (503.6 Nm) at 1301 rpm
  • Torque Rise: 47.5% with a power increase at 1800 rpm of 26%

Hydraulic Performance

  • Maximum Force Exerted: 7215 lbs (32.1 kN) with lift assist cylinder
  • Pump Delivery Rate: 30.9 GPM (116.9 l/min) at minimum pressure and rated engine speed
  • Hydraulic Power: 39.3 HP (29.3 kW) at delivery pressure of 2610 psi (180 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.50 Hp.hr/gal (3.25 kW.h/l)
  • Fuel Consumption: 6.66 Gal/hr (25.21 l/h) at 2121 rpm



Nebraska Tractor Test Lab.(2000). Nebraska Summary: S343 New Holland TM125. University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2804
