New Holland TL90A

Last Updated: June 2024

Overview

The New Holland TL90A is a utility tractor that was manufactured from 2004 to 2007. It features a 4x2 2WD drive type and hydrostatic power steering. Equipped with a powerful turbocharged diesel engine, it produces 91 hp from its 273 cubic inch displacement. The tractor operates with a Synchro Command transmission and could have either a mechanical or power shuttle with up to 24 forward and 12 reverse gears. The three-point hitch system is categorized as Category II and has a lift capacity of 5743.1 lbs at 24 inches, making it suitable for various attachments and tasks. The open center hydraulic system and hydraulic wet disc brakes further enhance its functionality in agricultural settings.
Show more...

Key Specifications

Category: Utility

Power Output: 91

Transmission: Synchro Command, Mechanical Shuttle, Power Shuttle

Drive Type: 4x2 2WD

Operating Weight: 8488 (2WD)

Fuel Type: Diesel

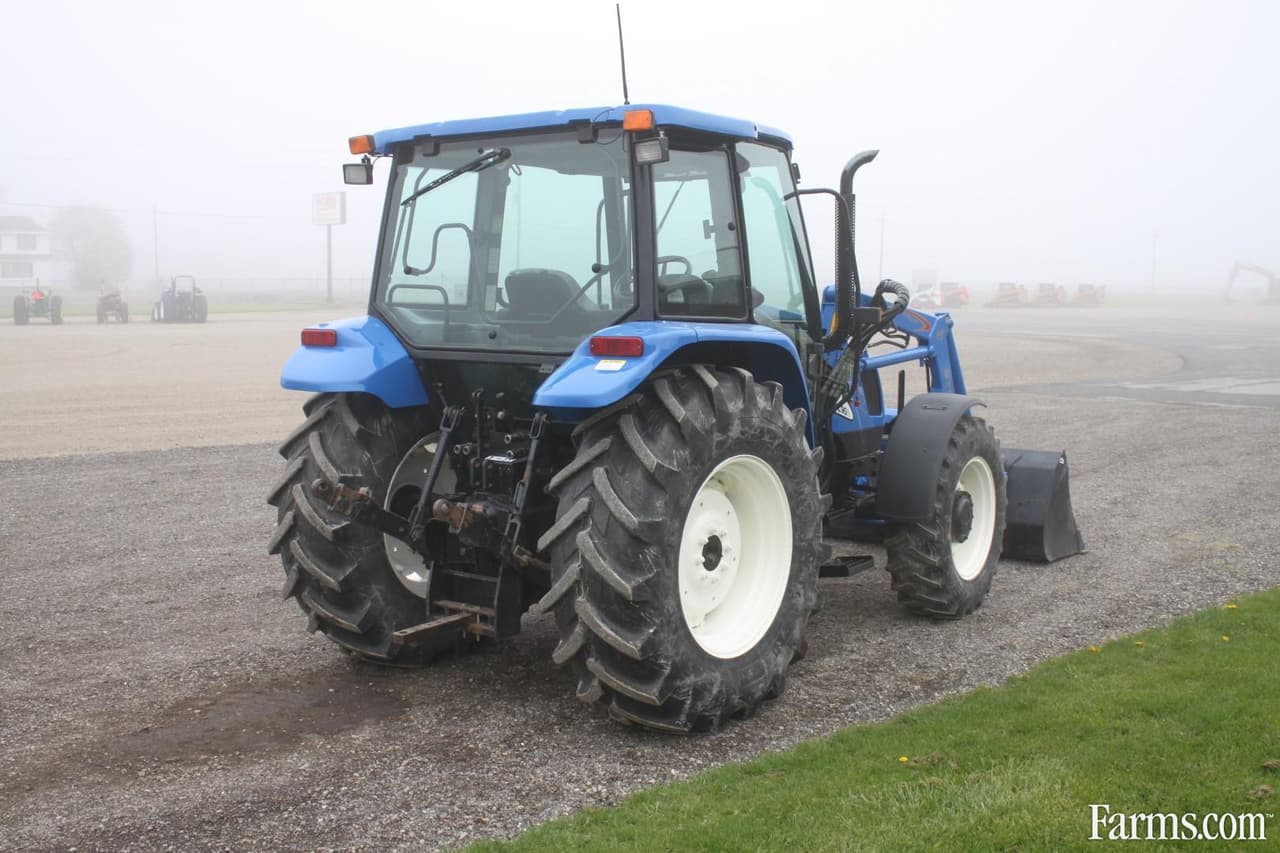

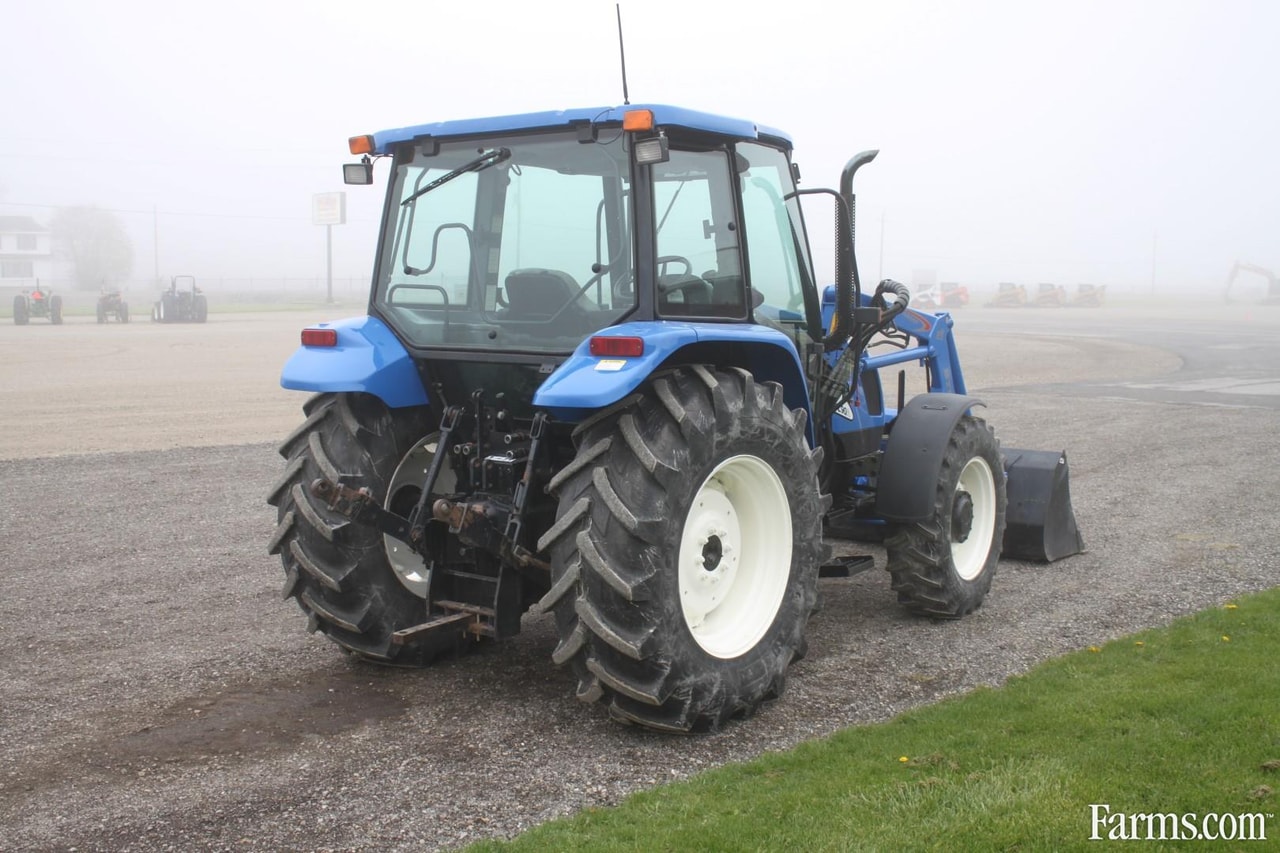

Image Gallery

New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor New Holland TL90A Tractor

New Holland TL90A vs. Similar Tractors

Power Output
Above Average
Greater than 77% of similar tractors.
Hitch Capacity
Above Average
Greater than 79% of similar tractors.
Operating Weight
Above Average
Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH, NEF
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
273
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2500
Power Output (hp)
91

Transmission

Type
Synchro Command, Mechanical Shuttle, Power Shuttle
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
171.7
Width (in)
79.2
Height (in)
96.6
Operating Weight (lb)
8488 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4x2 2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
12.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
2007
Hitch Type
Three-Point Hitch, Cat II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
5743.1 (lbs)
Operator Station Type
-
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
