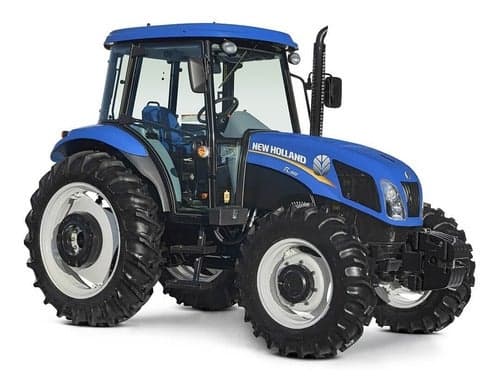

New Holland TL60E Exitus

Last Updated: June 2024

Overview

The New Holland TL60E Exitus is equipped with a MWM-International diesel engine, capable of delivering 61 horsepower at a rated RPM of 2400. The tractor features a 12-speed manual transmission with 12 forward and 4 reverse gears, and a mechanical dry disc clutch. The cooling system is liquid-cooled, and the engine's displacement is 177 cubic inches, with a bore and stroke of 4.02 and 4.72 inches respectively. It is designed with a 4x2 2WD chassis and power steering for easier maneuverability. The TL60E Exitus offers a 2WD wheelbase of 84.7 inches and a longer 4WD wheelbase of 92.5 inches, highlighting its adaptability to different working conditions. Standard agricultural tires are fitted, with the front tires size being 7.5x16 for the 2WD version and 12.4x24 for the 4WD variant. Electric start and an open-center hydraulics system add to the tractor's reliability and operational efficiency. The height with ROPS is 100.2 inches, and the height to the exhaust is 106.3 inches. Operating weight varies between 6349 pounds for the 2WD model and 7011 pounds for the 4WD model. However, detailed information on tire dimensions and other specifications are not provided.
Show more...

Key Specifications

Power Output: 61

Transmission: Manual

Drive Type: 2WD

Operating Weight: 2WD: 6349 | 4WD: 7011

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM-International
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
177
Bore (in)
4.02
Stroke (in)
4.72
Rated RPM
2400
Power Output (hp)
61

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
2WD: 145.7 | 4WD: 158.5
Width (in)
-
Height (in)
Height (ROPS): 100.2 | Height (exhaust): 106.3
Operating Weight (lb)
2WD: 6349 | 4WD: 7011

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Rollover Protection Structure)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
