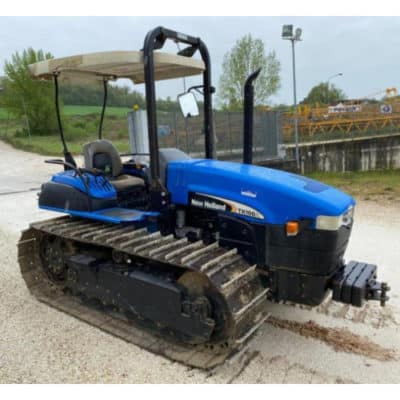

New Holland TK80A

Last Updated: June 2024

Overview

The New Holland TK80A is a track tractor designed to deliver consistent performance under various agricultural conditions. It is powered by an engine that produces 77 horsepower and has a natural induction system with a rated speed of 2500 rpm. The tractor features a displacement of 238 cubic inches across 4 cylinders, supporting a power output that facilitates demanding tasks. The TK80A comes equipped with a traction clutch transmission, boasting 8 forward and 8 reverse gears. It has a considerable operating weight of 8460 lbs, which ensures stability and traction, and a rear hitch with a Category 2 rating and a lift capacity of 4075 lbs, which is suitable for a variety of implements. Among its additional features are the 66 horsepower PTO power, three remote control valves, a pump flow capacity of 11.9 gallons per minute, relief valve pressure of 2755 psi, and a 32-gallon fuel capacity. With a top speed of 7.5 mph, this tractor can manage field operations with efficiency. The track configuration enables the tractor to navigate through challenging terrains with minimal soil compaction.
Show more...

Key Specifications

Category: Crawler

Power Output: 77

Transmission: Traction Clutch

Drive Type: Track

Operating Weight: 8460

Lift Capacity: 4075

New Holland TK80A vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Hitch Capacity
Below Average
Greater than 17% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Natural
Cylinders
4
Displacement (ci)
238
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
77

Transmission

Type
Traction Clutch
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
11.1
Width (in)
56.7
Height (in)
-
Operating Weight (lb)
8460

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Track
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat. I,II
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
4075
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
