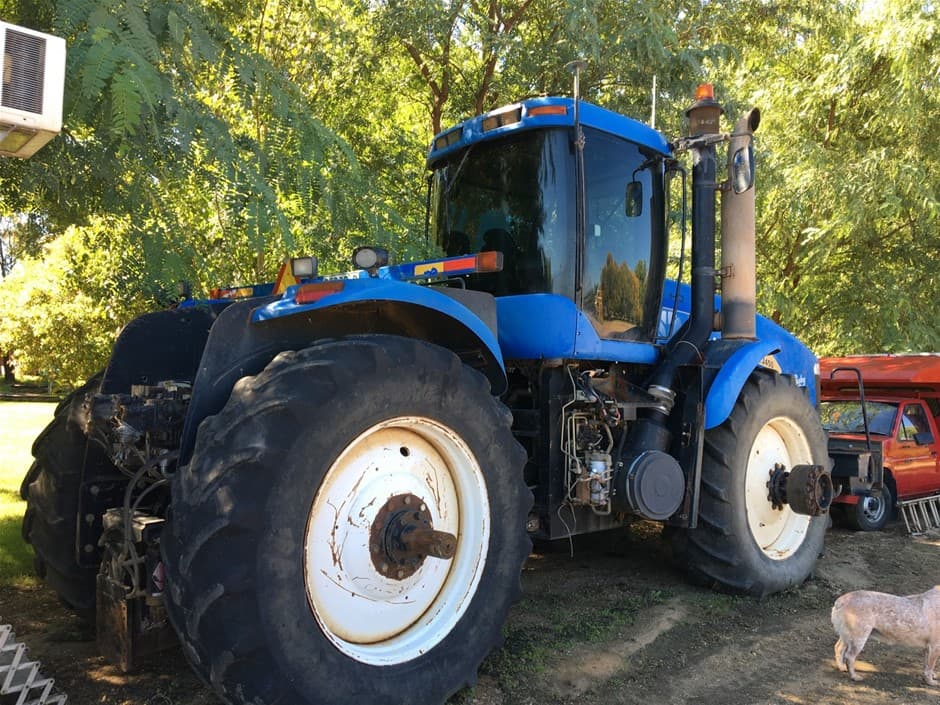

New Holland TJ280

Last Updated: June 2024

Overview

The New Holland TJ280 is a robust tractor designed for heavy-duty work with an articulated 4x4 four-wheel-drive setup. The tractor comes equipped with a powerful CNH 6-cylinder, 24-valve, turbocharged aftercooled diesel engine, delivering 280 horsepower at 2,000 rated RPM and a peak horsepower of 308. Its liquid cooling system helps maintain optimal engine temperatures during extended periods of operation. The TJ280 features a 16-speed full power shift transmission that is adaptable to a variety of tasks, from plowing to complex planting operations. Its hydrostatic power steering provides ease of control over the tractor's articulated chassis, while the electric starter ensures reliable ignition. A highlight of this model is the transmission's total of 18 gears, with 16 forward and 2 reverse, allowing precise movement and speed control. The TJ280’s notable dimensions include a length of 276 inches, height of 142 inches, and a wheelbase of 139 inches, all contributing to its stability for tasks that demand significant power. The tractor's operating weight is 39,600 pounds, which underscores its capability for agricultural and possibly construction-oriented tasks. With its manufacture years being 2006-07, the TJ280 represents New Holland's TJ II series of tractors designed for high performance.
Show more...

Key Specifications

Power Output: 280

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 39600

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
CNH
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged aftercooled
Cylinders
6
Displacement (ci)
506.5
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2000
Power Output (hp)
280

Transmission

Type
full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
18

Dimensions

Length (in)
276
Width (in)
-
Height (in)
142
Operating Weight (lb)
39600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
45.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
42
Tire Type
Ag
Manufacture - End Year
2007
Hitch Type
IVN/III (optional)
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed center load sensing (CCLS)
