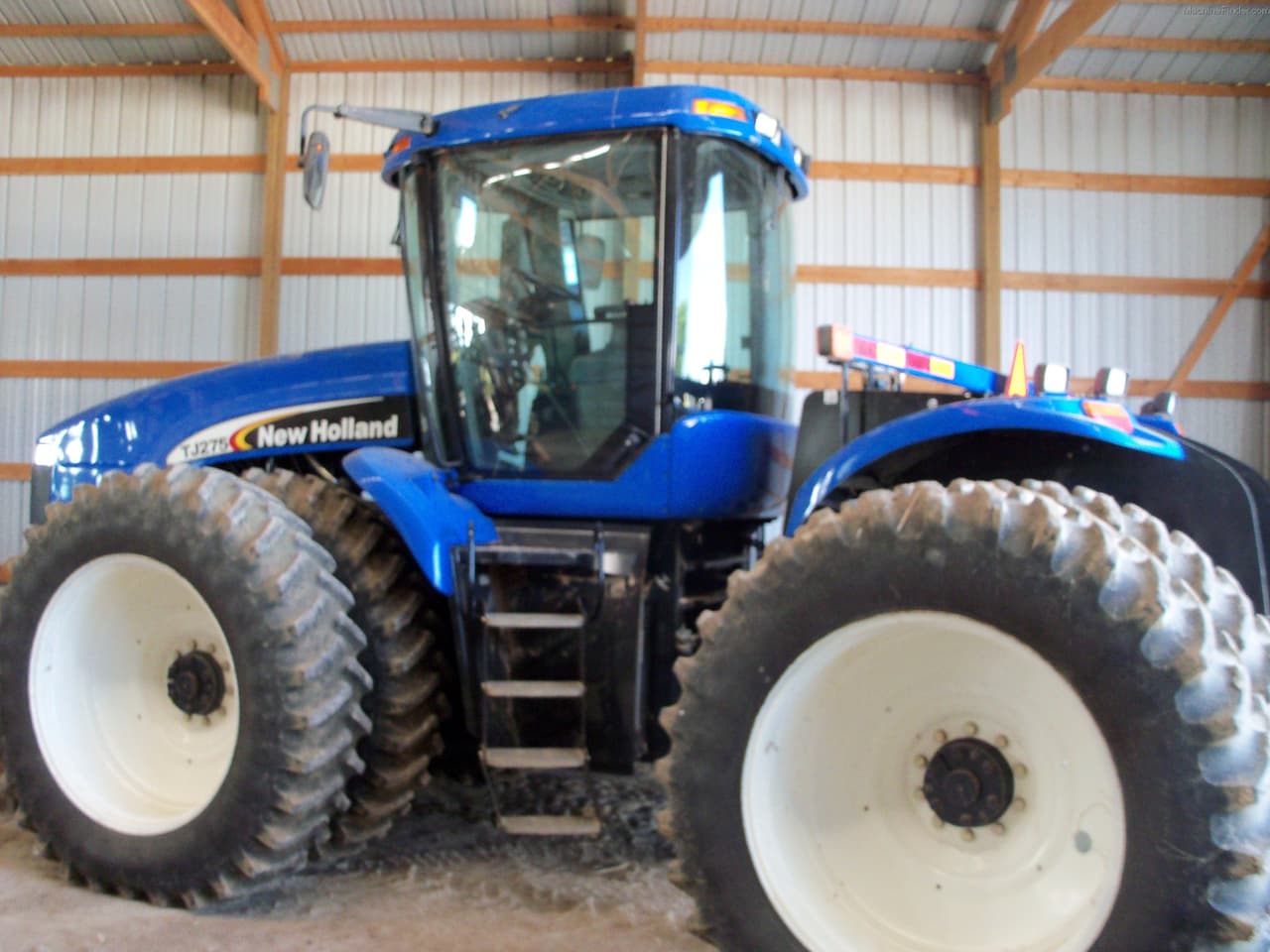

New Holland TJ275

Last Updated: June 2024

Overview

The New Holland TJ275 is a robustly built tractor that showcases a significant power output of 275 horsepower, suitable for heavy-duty tasks in large-scale farming operations. It comes equipped with a turbocharged aftercooled diesel engine by CDC, model 6TAA-8304, with a displacement of 504.5 cubic inches. The full power shift transmission system of this tractor includes 16 forward gears and 2 reverse gears, offering versatility and flexibility for various agricultural demands. The TJ275 also features hydrostatic power steering for ease of handling. The tractor's wheelbase measures 139 inches which provides stability for various terrains and operations. An operating weight of 31,785 lbs underscores its substantial construction and capability for heavy agricultural use. The TJ275 was manufactured from 2002 to 2005, and its rear hitch system is classified as Category III.
Show more...

Key Specifications

Power Output: 275

Transmission: Full power shift

Operating Weight: 31785

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
CDC
Model
6TAA-8304
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
504.5
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2000
Power Output (hp)
275

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
295.5
Width (in)
-
Height (in)
145.2
Operating Weight (lb)
31785

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
45.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2005
Hitch Type
Rear
Hitch Category
III
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
