New Holland TG285

Last Updated: June 2024

Overview

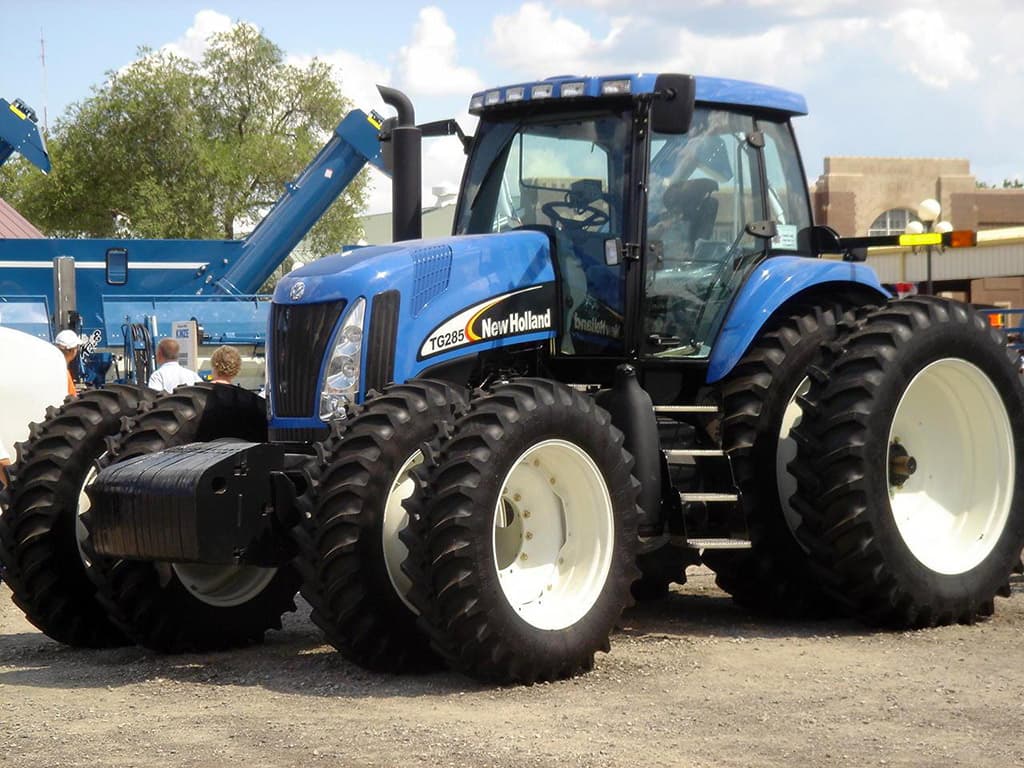

The New Holland TG285 is a row-crop tractor known for its robust performance and versatility. Produced by New Holland from 2002 to 2006, this tractor operates with a 285 horsepower diesel engine, featuring a 505 cubic inch displacement and turbocharged induction. The full power shift transmission provides 18 forward and 4 reverse gears, catering to a wide range of farming activities. Equipped with MFWD as standard and offering power steering, the TG285 boasts superior handling and maneuverability. The tractor maintains a solid stance with a wheelbase of 129.3 inches and an operating weight of 21,175 lbs. While the exact tire specifications and dimensions remain unknown, it offers potential for customization with its hitch system rated for Category 3 implements and the addition of a creeper gear transmission for specialized tasks. Safety and efficiency are bolstered by the closed center load sensing hydraulic system and an optional TerraGlide front axle, enhancing the tractor's capability in various field conditions.
Show more...

Key Specifications

Category: Row Crop

Power Output: 285

Transmission: Full power shift

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 21175

Fuel Type: Diesel

New Holland TG285 vs. Similar Tractors

Power Output
Above Average
Greater than 86% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
505
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2200
Power Output (hp)
285

Transmission

Type
Full power shift
Forward Gears
18
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
21175

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2006
Hitch Type
III/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
