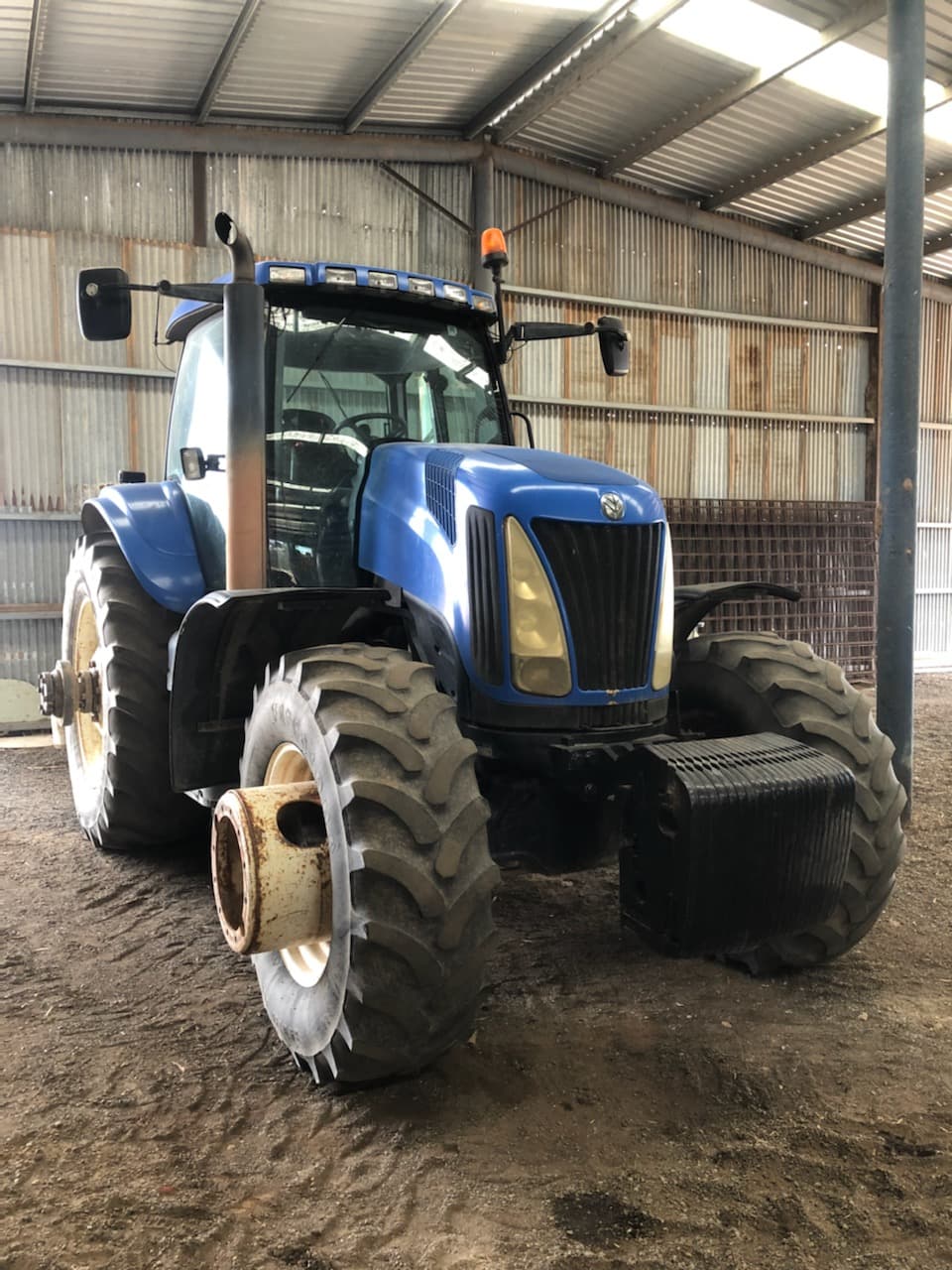

New Holland TG255

Last Updated: June 2024

Overview

The New Holland TG255 is a row-crop tractor known for its significant pulling power and ability to handle a wide variety of farming tasks. With an engine rated at 255 horsepower (190.2 kW) and a robust turbocharged diesel engine, it delivers the performance needed for demanding agricultural applications. This tractor features a full power shift transmission with 18 forward and 4 reverse gears. The closed center load sensing hydraulic system ensures efficient operation of implements. The TG255 was manufactured by New Holland from 2002 to 2006, and it is equipped with a 6-cylinder liquid-cooled engine with a displacement of 505 cubic inches. The chassis design includes a 4x4 MFWD 4WD configuration that provides superior traction in various field conditions. Additional details such as the front axle specifications indicate advanced steering capabilities with SuperSteer and TerraGlide options.
Show more...

Key Specifications

Category: Row Crop

Power Output: 255

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 21250

Fuel Type: Turbocharged diesel

New Holland TG255 vs. Similar Tractors

Power Output
Above Average
Greater than 83% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Turbocharged, air-to-air intercooled
Cylinders
6
Displacement (ci)
505
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2200
Power Output (hp)
255

Transmission

Type
Full power shift
Forward Gears
18
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
21250

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2006
Hitch Type
-
Hitch Category
Category III/IIIN
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center load sensing
