New Holland TD75D

Last Updated: June 2024

Overview

The New Holland TD75D is a utility tractor that was manufactured by New Holland and Turk Traktor from 2002 to 2006. Powered by an Iveco 8045.06 engine with 72 horsepower (53.7 kW) and a capacity of 238 cubic inches (3.9 L), it is liquid-cooled and utilizes a Bosch injection pump alongside a dual element dry air cleaner, with thermostart pre-heating. The tractor has a mechanical shuttle transmission type with 12 forward and reverse gears. Steering is hydrostatic power, and the tractor comes in a 4x2 2WD configuration. The operating weight ranges from 5702 to 6915 pounds, and it has a notable height of 103.1 inches (261 cm). The TD75D is designed with an open center hydraulic system and features a Category 3 rear hitch. With a ROPS operator station and standard agricultural tires, the tractor is suited for a variety of tasks in the utility domain.
Show more...

Key Specifications

Category: Utility

Power Output: 72

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 5702 to 6915

Fuel Type: Diesel

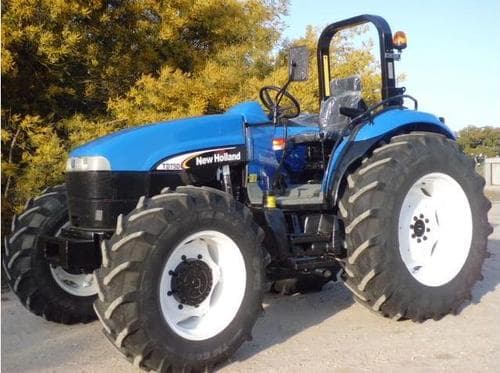

Image Gallery

New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor New Holland TD75D Tractor

New Holland TD75D vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
8045.06
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
238
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
72

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
103.1
Operating Weight (lb)
5702 to 6915

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2006
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
Open center
