New Holland TD5040

Last Updated: June 2024

Overview

The New Holland TD5040 is a utility tractor that was manufactured from 2009 to 2019. It is powered by an FPT NEF 4-cylinder, 8-valve, turbocharged intercooled diesel engine with a displacement of 274.6 cubic inches. The engine churns out 88 horsepower, with an engine rated RPM of 2500 and a maximum torque of 276.6 lb-ft at 1300 RPM. The tractor is a 2WD with hydrostatic power steering and features a partially synchronized mechanical shuttle transmission with 12 forward and reverse gears. The chassis includes standard agricultural tires, front size 7.50-18 and rear size 18.4/R30. The TD5040 is available with both ROPS and a cab option, with heights of 107.7 inches and 102.4 inches respectively. The maximum hitch lift capacity is 13,010 pounds.
Show more...

Key Specifications

Category: Utility

Power Output: 88

Transmission: Partially synchronized mechanical shuttle

Drive Type: 2WD

Operating Weight: 6,636 (2WD ROPS), 7,716 (4WD ROPS), 7,275 (2WD cab), 8,223 (4WD cab)

Fuel Type: diesel

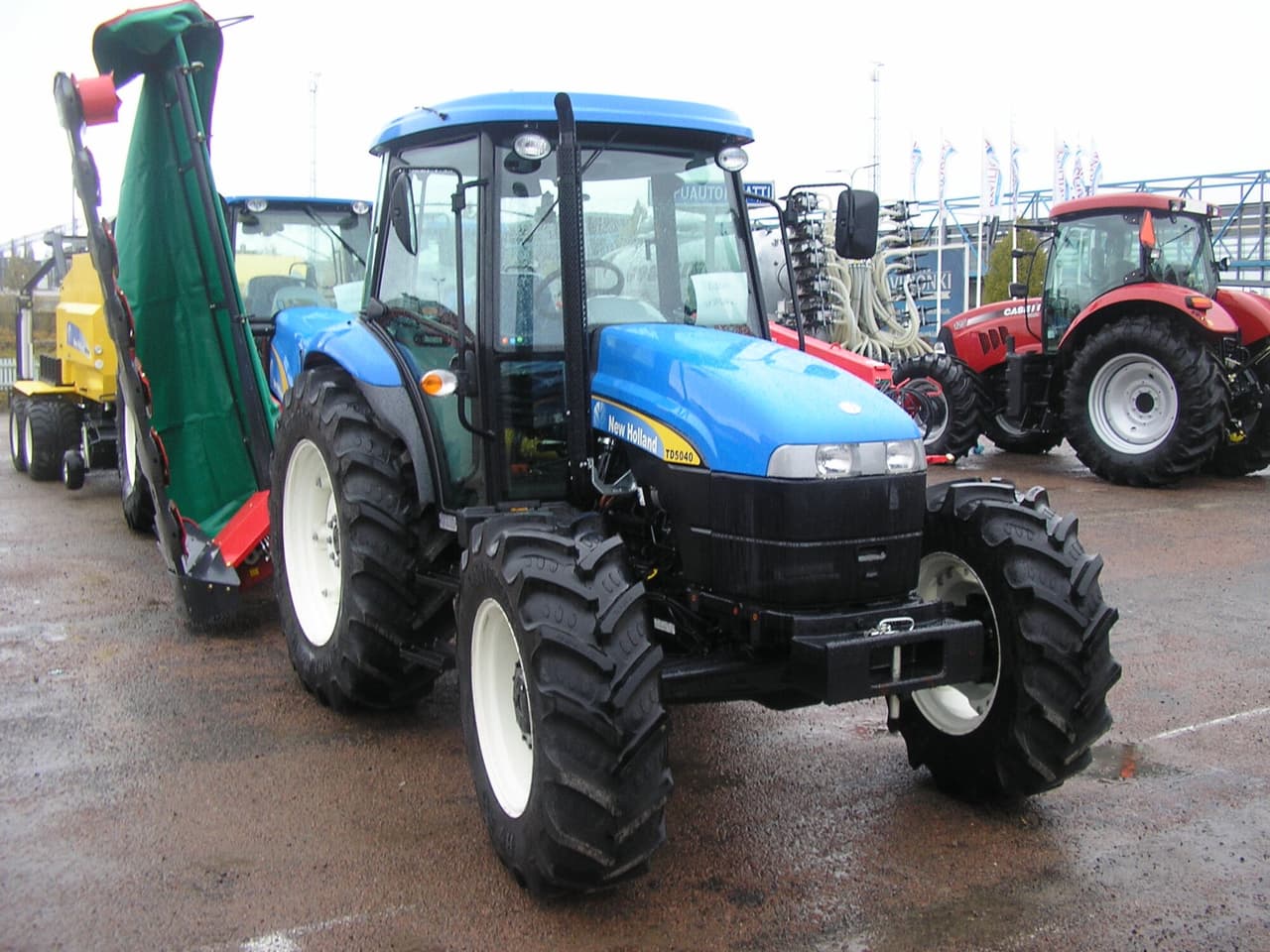

Image Gallery

New Holland TD5040 Tractor New Holland TD5040 Tractor New Holland TD5040 Tractor New Holland TD5040 Tractor New Holland TD5040 Tractor New Holland TD5040 Tractor

New Holland TD5040 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Hitch Capacity
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
NEF
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
diesel
Induction Type
turbocharged intercooled
Cylinders
4
Displacement (ci)
274.6
Bore (in)
4.094
Stroke (in)
5.196
Rated RPM
2500
Power Output (hp)
88

Transmission

Type
Partially synchronized mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
165.9
Width (in)
-
Height (in)
107.7 (ROPS), 102.4 (cab)
Operating Weight (lb)
6,636 (2WD ROPS), 7,716 (4WD ROPS), 7,275 (2WD cab), 8,223 (4WD cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18 (for tire size 7.50-18)
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
30 (for tire size 18.4R30)
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2019
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
13,010 lbs
Operator Station Type
Both ROPS and Cab available
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
