New Holland TC48DA

Last Updated: June 2024

Overview

The New Holland TC48DA is a utility-type tractor that was part of New Holland's Boomer TC-A Series. Manufactured from 2003 to 2008, this model is recognized for its versatility and durability. It is equipped with a Shibaura N844L four-cylinder liquid-cooled diesel engine capable of delivering 48 horsepower. Incorporating a synchro shuttle transmission, the TC48DA offers 12 forward and reverse gears. The tractor's specified tire options reflect its ability to handle a diverse range of agricultural tasks, from fieldwork to turf maintenance. Its operating weight is 4,315 pounds when outfitted with a four-wheel-drive system and ROPS, providing stability and safety for the operator. Additional specifications, such as hitch lift capacity and PTO speeds, were not provided and remain unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 48

Transmission: Synchro Shuttle

Drive Type: 4WD (Assumed based on the presence of tire specs for 4WD option)

Operating Weight: 4315

Fuel Type: Diesel

Image Gallery

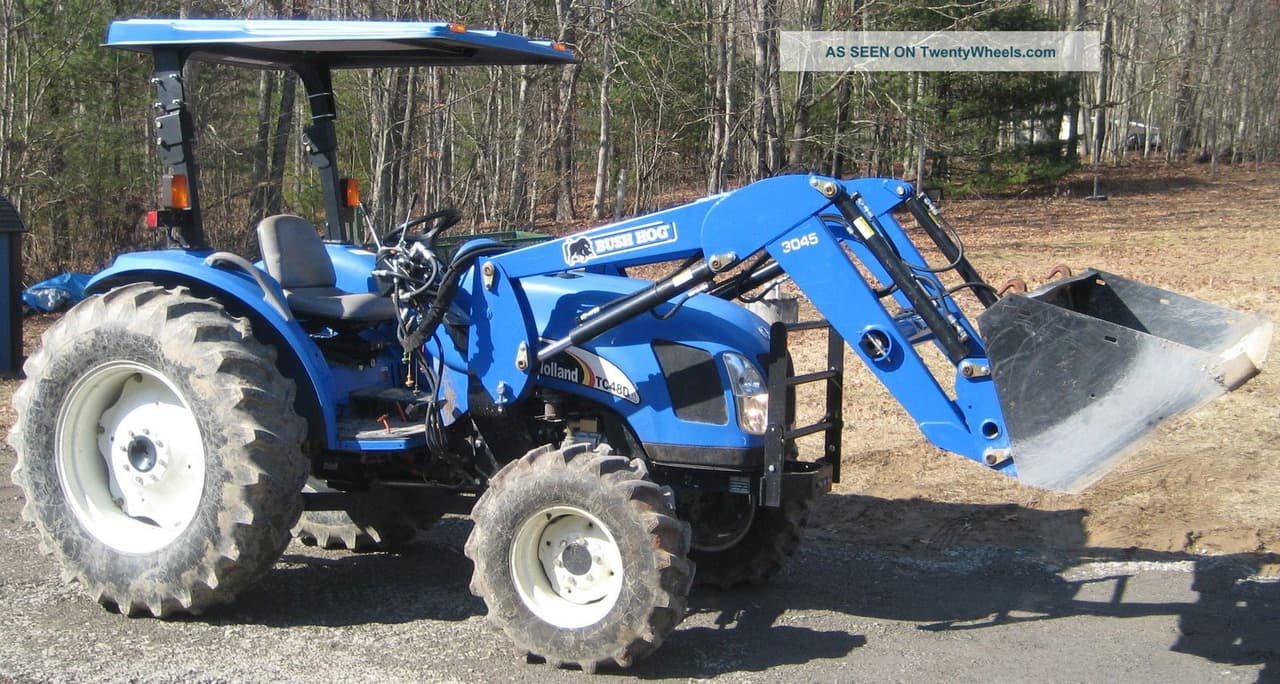

New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor New Holland TC48DA Tractor

New Holland TC48DA vs. Similar Tractors

Power Output
Average
Greater than 46% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated (Assumed based on the lack of mention of turbocharging or supercharging)
Cylinders
4
Displacement (ci)
135.2
Bore (in)
3.307
Stroke (in)
3.937
Rated RPM
2800
Power Output (hp)
48

Transmission

Type
Synchro Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
137.3
Width (in)
64.4
Height (in)
91
Operating Weight (lb)
4315

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4WD (Assumed based on the presence of tire specs for the 4WD option)
Drive Type
4WD (Assumed based on the presence of tire specs for 4WD option)
Steering Type
Power (Assumed from the steering flow specification)
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial (multiple options available)
Manufacture - End Year
2008
Hitch Type
Three-Point Hitch (Assumed from "Rear Type: II/I")
Hitch Category
Category 2/1 (Assumed from "Rear Type: II/I")
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Roll-Over Protection Structure) (Assumed from operating weight spec)
Starter Type
Electric (Assumed from starter volts spec)
Brake Type
-
Hydraulic System Type
Open Center
