New Holland TC29

Last Updated: June 2024

Overview

The New Holland TC29 is a compact utility tractor that was offered in 2WD or 4WD configurations, manufactured from 1999 to 2003. It was equipped with a 1.3 L, Shibaura J843 three-cylinder diesel engine. This tractor offered a choice between a gear-type transmission with 9 forward and 3 reverse gears or a hydrostatic transmission with infinite forward and reverse gears across three ranges. Standard features included hydrostatic power steering, wet disc brakes, a two-post foldable ROPS, and a fuel tank capacity of 27.5 liters. It also featured a Category 1 three-point hitch with a lift capacity of 1630 lbs at 24 inches. The tractor’s weight ranges from 2474 to 2588 pounds. The TC29 was part of New Holland's Boomer TC Series.

Key Specifications

Category: Utility

Power Output: 29

Transmission: Gear type, Hydrostatic

Drive Type: 4Ã—4 MFWD 4WD

Operating Weight: 2469

Fuel Type: Diesel

Image Gallery

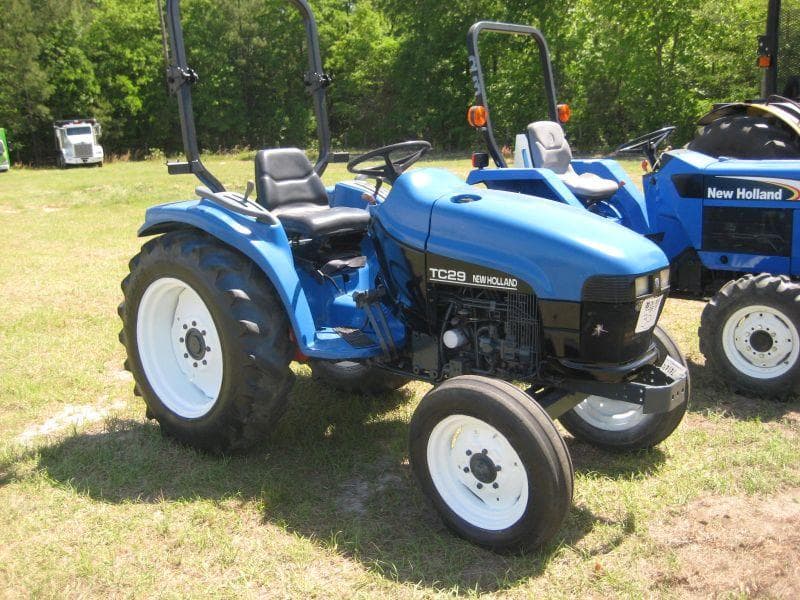

New Holland TC29 Tractor

New Holland TC29 vs. Similar Tractors

Power Output

Below Average

Greater than 23% of similar tractors.

Hitch Capacity

Excellent

Greater than 93% of similar tractors.

Operating Weight

Below Average

Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: J843
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 81.2
Bore (in): 3.31
Stroke (in): 3.15
Rated RPM: 2800
Power Output (hp): 29

Transmission

Type: Gear type, Hydrostatic
Forward Gears: 9 (Gear type)
Reverse Gears: 3 (Gear type)
Total Gears: -

Dimensions

Length (in): 106.3
Width (in): 53.9
Height (in): 87.8
Operating Weight (lb): 2469

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2000 (Middle PTO, optional)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4Ã—4 MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag Standard (5.50-16 front, 11.2-24 rear)
Manufacture - End Year: 2003
Hitch Type: Three-Point Hitch
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): 1630 lbs at 24 inches
Operator Station Type: Two-post foldable ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
