New Holland TC18

Last Updated: June 2024

Overview

The New Holland TC18 is a versatile compact utility tractor that was part of New Holland's TC series. Manufactured between 1999 and 2003, it is available in either a two-wheel drive (2WD) or four-wheel drive (4WD) version. It comes equipped with a Shibaura S753 engine, a three-cylinder diesel engine with a 58.2 cubic inch displacement, producing up to 18.5 horsepower at 2600 RPM. The TC18 provides a choice of transmissions: a gear type with 6 forward and 2 reverse speeds or a hydrostatic transmission with infinite ranges. It features hydrostatic power steering and a two-post foldable ROPS operator station. With a rear three-point hitch capable of lifting up to 1265 lbs and optional PTOs, this compact tractor suits various tasks, making it useful for small-scale farming, landscaping, and property maintenance.

Key Specifications

Category: Utility

Power Output: 18.5

Transmission: Gear / Hydrostatic

Drive Type: 4x2 2WD or 4x4 MFWD 4WD

Operating Weight: 1355 (2WD) / 1440 (4WD)

Fuel Type: Diesel

Image Gallery

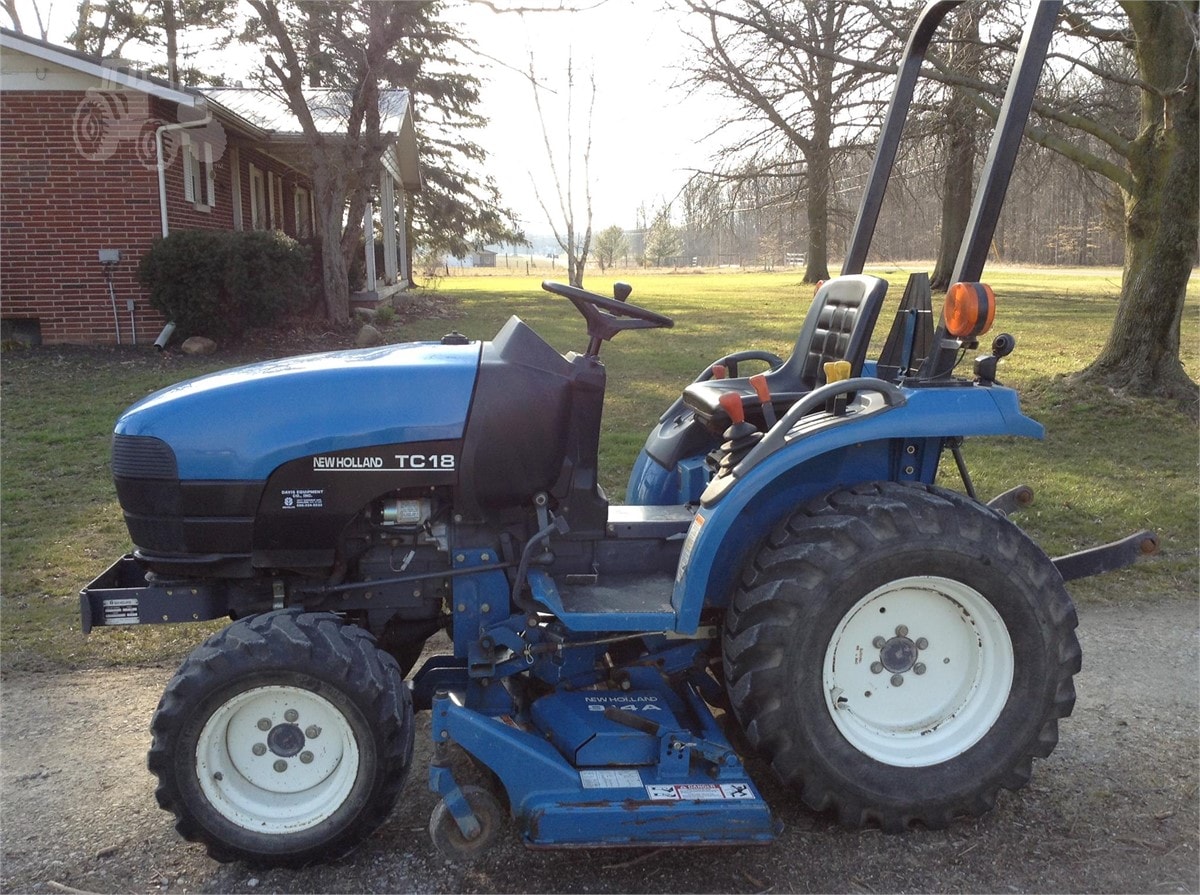

New Holland TC18 Tractor

New Holland TC18 vs. Similar Tractors

Power Output

Poor

Greater than 7% of similar tractors.

Hitch Capacity

Excellent

Greater than 93% of similar tractors.

Operating Weight

Excellent

Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: S753
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 58.2
Bore (in): 2.95
Stroke (in): 2.83
Rated RPM: 2600
Power Output (hp): 18.5

Transmission

Type: Gear / Hydrostatic
Forward Gears: 6 (Gear) / Infinite (2-range) (Hydrostatic)
Reverse Gears: 2 (Gear) / Infinite (2-range) (Hydrostatic)
Total Gears: -

Dimensions

Length (in): 106.3
Width (in): 40.9
Height (in): 79.9
Operating Weight (lb): 1355 (2WD) / 1440 (4WD)

Power Take-Off (PTO)

PTO Type: Transmission or live (HST), Optional Middle PTO
PTO Speed 1 (rpm): Rear: 540 / Middle: 2000 (Optional)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4x2 2WD or 4x4 MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural, Lawn/turf, Industrial (specific types listed)
Manufacture - End Year: 2003
Hitch Type: Three-Point Hitch (Category I specified)
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): 1265 lbs (at 24 inches behind)
Operator Station Type: Two-post foldable ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
