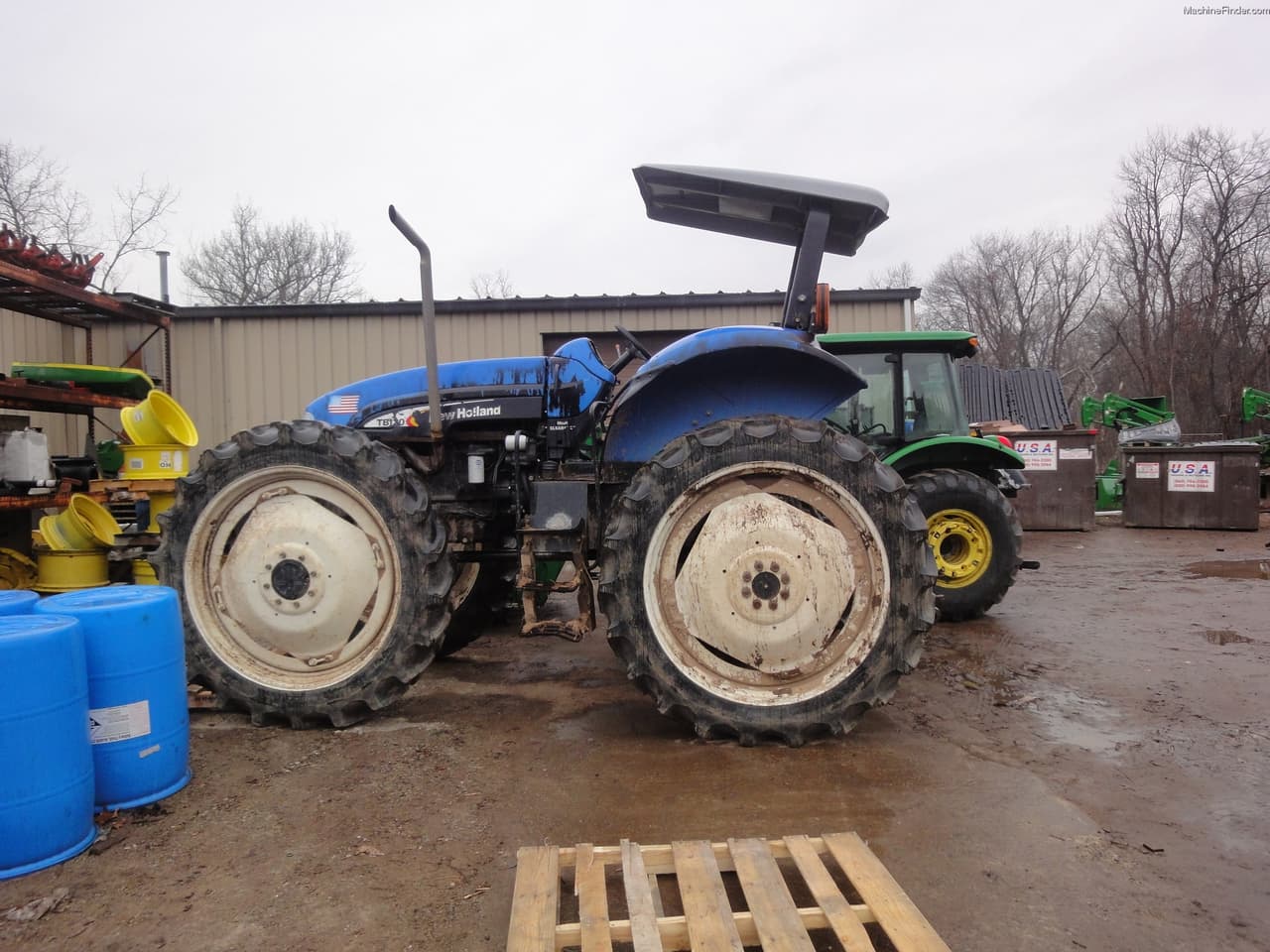

New Holland TB120

Last Updated: June 2024

Overview

The New Holland TB120 is a utility tractor that's well-suited for a variety of tasks in farming and other applications. It features a 120 hp engine that provides sufficient power for many agricultural tasks. The tractor operates with a 2WD chassis and is equipped with power steering for ease of maneuverability. The transmission is multi-faceted, with gear, two-speed power shift, and creeper options, although the specific number of forward and reverse gears are not known. The liquid-cooled diesel engine maintains peak performance with a displacement of 456 cubic inches. It offers 120 horsepower at 2100 RPM and impressive levels of torque. An electric starter system facilitates easy engine ignition, while the open-center hydraulic system underlines the tractor's operational efficiency. With an operating weight ranging between 6525 and 7380 pounds and a height of 99.5 inches under ROPS, the TB120 promises durability and reliability. It comes standard with a Category II hitch at the rear, and while the lift capacity is not specified, it is indicative of the tractor's suitability for moderate to heavy-duty work.
Show more...

Key Specifications

Category: Utility

Power Output: 120

Transmission: Gear / Two-speed power shift / Creeper

Drive Type: 2WD

Operating Weight: 6525 (2WD) or 7380 (4WD)

Fuel Type: Diesel

New Holland TB120 vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.
Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
456
Bore (in)
4.4
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
120

Transmission

Type
Gear / Two-speed power shift / Creeper
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
156.5 (2WD) or 161.5 (4WD)
Width (in)
-
Height (in)
99.5 (ROPS)
Operating Weight (lb)
6525 (2WD) or 7380 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
16.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
