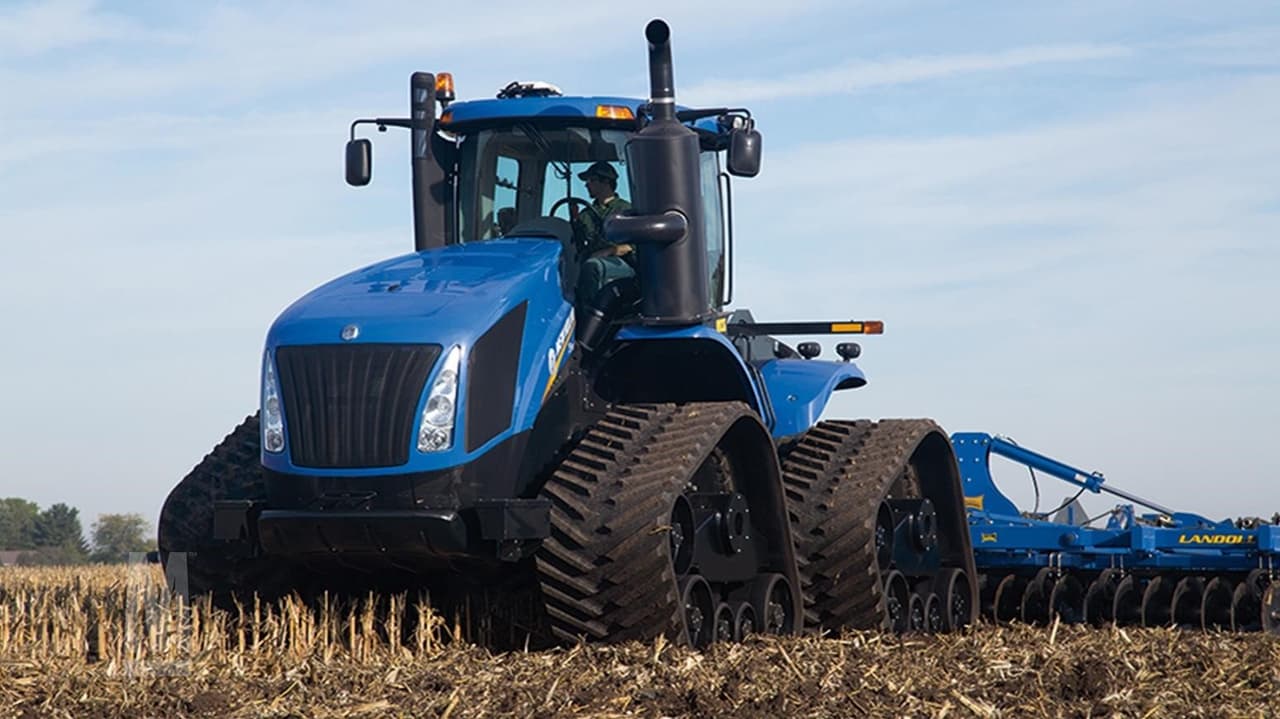

New Holland T9.700 SmartTrax II

Last Updated: June 2024

Overview

The New Holland T9.700 SmartTrax II is a high-horsepower, articulated tractor equipped with an advanced FPT Cursor 13 TST six-cylinder, 24-valve, liquid-cooled, turbocharged engine that offers 620 horsepower rated power and a maximum power of 682 horsepower, adhering to Tier IV emissions standards. With an impressive displacement of 787 cubic inches and a robust torque output of 2169 lb-ft at 1400 RPM, it offers exceptional power and efficiency in various operations. The tractor features a full power shift transmission with 17 forward and 2 reverse gears, allowing for seamless operation. The tractor's engineering also includes a hydrostatic power articulated steering system and a closed center load sensing hydraulic system. Built to handle demanding tasks, the T9.700 SmartTrax II maintains a steady presence in the field with an operating weight of 58730 lbs. Despite its substantial power, the exact dimensions of the tractor's length and tire specifications are not specified. It remains unclear what additional features this model may include, such as GPS capabilities or automated systems. Owners of this tractor model benefit from its robust build and significant power for performance-driven tasks.
Show more...

Key Specifications

Power Output: 620 (Rated Power ECE R120), 682 (Maximum Power ECE R120)

Transmission: Full power shift

Operating Weight: 58730

Fuel Type: Diesel

Lift Capacity: 15668.3 (at 24 inches)

Technical Specifications

Engine

Manufacturer
FPT
Model
Cursor 13 TST
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Two-stage turbocharged inter-cooled and aftercooled
Cylinders
6
Displacement (ci)
787
Bore (in)
5.31
Stroke (in)
5.91
Rated RPM
2100
Power Output (hp)
620 (Rated Power ECE R120), 682 (Maximum Power ECE R120)

Transmission

Type
Full power shift
Forward Gears
17
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
36
Height (in)
142.8 (CEG_Height - Top of Cab, converted from 11.9 ft)
Operating Weight (lb)
58730

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power articulated
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Unknown (CEG_3 Point Hitch Type indicates size, not type)
Hitch Category
IV-N/III
Hitch Position
-
Hitch Capacity (lb)
15668.3 (at 24 inches)
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing (CCLS)
