New Holland T9.530

Last Updated: June 2024

Overview

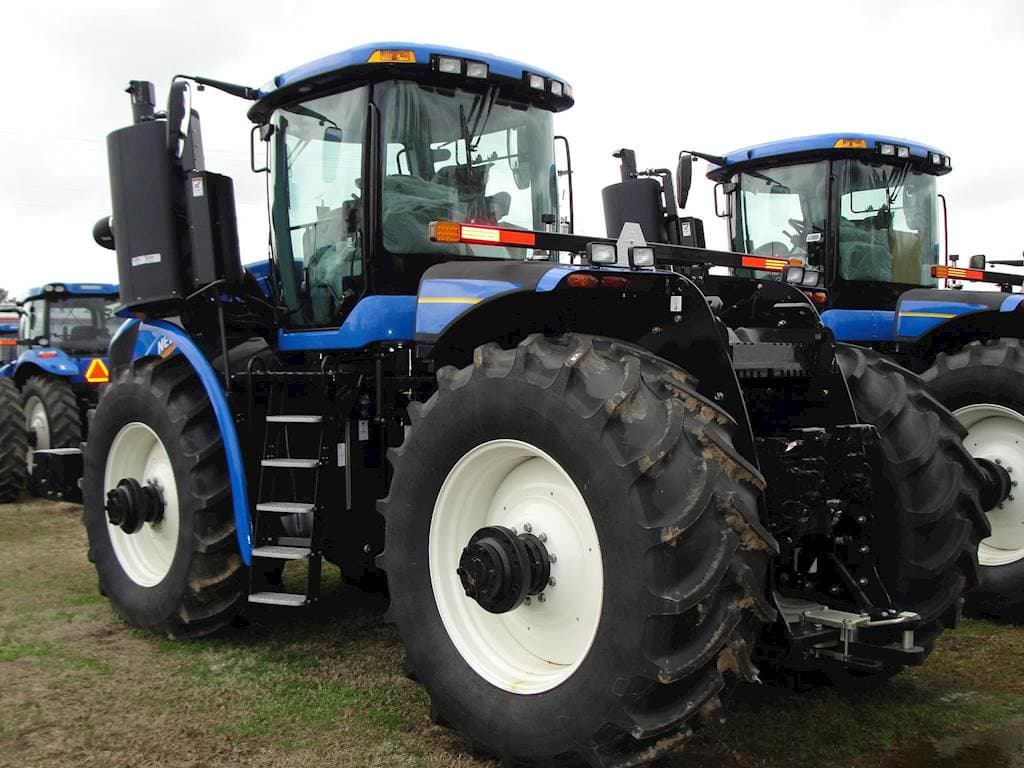

The New Holland T9.530 is a large, 4WD tractor, with an articulated chassis designed for heavy traction tasks and demanding agricultural work. Equipped with a FPT Cursor 13 SST engine, the tractor delivers a rated power of 470 hp (350.5 kW) and can reach up to 517 hp (385.5 kW). The full power shift transmission offers 17 forward and 2 reverse gears, enabling versatile operations across a variety of tasks. This model comes with hydrostatic power articulated steering, a closed center load sensing hydraulic system, and an electronic high pressure common rail fuel system. The tires are a sizable 710/70 R42, suitable for reducing compaction and improving traction on diverse terrains. The large dimensions and hefty weight of the tractor testify to its capability and stability in challenging environments.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 470

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 36048

Fuel Type: diesel

Image Gallery

New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor New Holland T9.530 Tractor

New Holland T9.530 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
Cursor 13 SST
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
diesel
Induction Type
wastegate turbocharged aftercooled
Cylinders
6
Displacement (ci)
787
Bore (in)
5.31
Stroke (in)
5.91
Rated RPM
2100
Power Output (hp)
470

Transmission

Type
full power shift
Forward Gears
17
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
291
Width (in)
120
Height (in)
151.3
Operating Weight (lb)
36048

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
hydrostatic power articulated
Coolant Capacity (qts)
-
Front Tire Diameter (in)
70
Front Tire Width (in)
-
Rear Tire Diameter (in)
70
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
42 (assuming based on the tire notation 710/70R42)
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
IVN* (specification implies a hitch type, possibly a typo or abbreviation that is not explicit)
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assuming based on the note 'Height (cab)')
Starter Type
Electric
Brake Type
-
Hydraulic System Type
closed center load sensing (CCLS)
