New Holland T9.435

Last Updated: June 2024

Overview

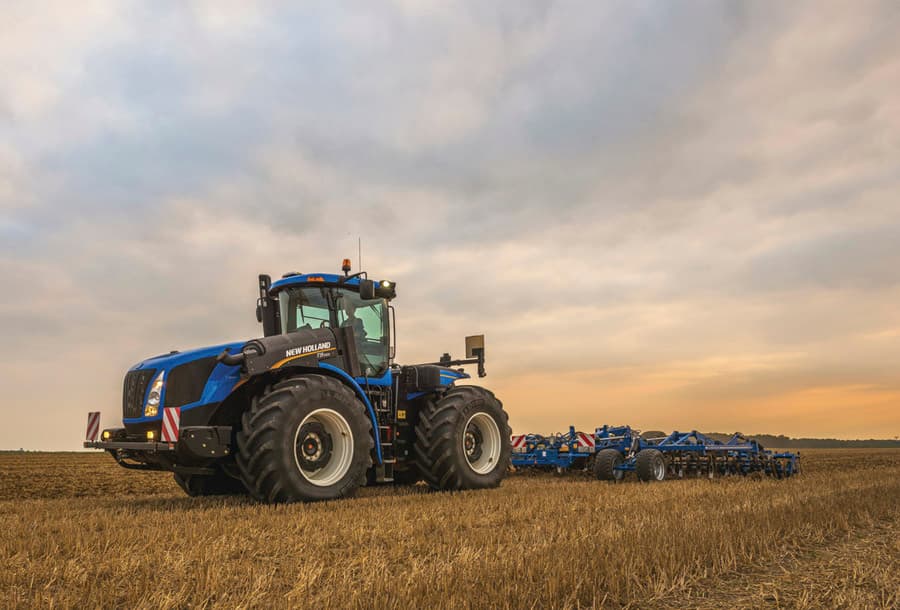

The New Holland T9.435 is a robust and powerful four-wheel drive (4WD) articulated tractor, designed to handle a range of heavy-duty agricultural tasks. Featuring a FPT Cursor 9 engine with a displacement of 531 cubic inches, it offers both high efficiency and performance with a rated power output of 370 horsepower and a maximum power rating of 429 horsepower. The tractor has a hydrostatic power articulated steering for precision and ease of control, further complemented by the responsive 17-speed full power shift transmission. With a substantial operating weight of 35,848 pounds and 4x4 articulated chassis, the T9.435 delivers reliable traction and performance in various ground conditions. The implement versatility is noted, although the specifics of the hitch type are marked as IVN*, with no further details on hitch capacity and specifications. There are also environmental considerations with the inclusion of Tier IV emissions standards met through selective catalytic reduction and diesel oxidation catalyst systems.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 370 rated, 429 maximum

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 35848

Fuel Type: diesel

New Holland T9.435 vs. Similar Tractors

Power Output
Excellent
Greater than 96% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
Cursor 9
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
diesel
Induction Type
variable-geometry turbocharged aftercooled
Cylinders
6
Displacement (ci)
531
Bore (in)
4.61
Stroke (in)
5.31
Rated RPM
2000
Power Output (hp)
370 rated, 429 maximum

Transmission

Type
full power shift
Forward Gears
17
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
291
Width (in)
120 *
Height (in)
151.3
Operating Weight (lb)
35848

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
hydrostatic power articulated
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
42
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
IVN*
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed center load sensing (CCLS)
