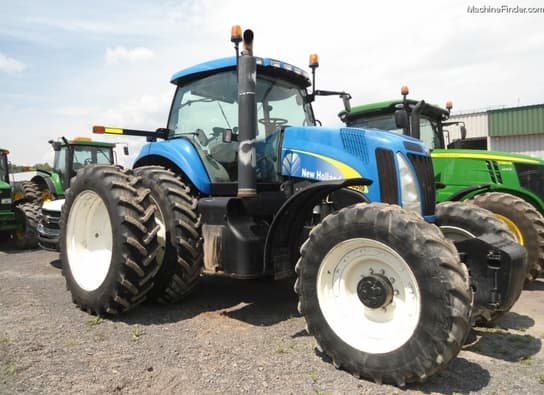

New Holland T8010

Last Updated: June 2024

Overview

The New Holland T8010 is a powerful row-crop tractor designed to meet the demands of modern agriculture. It features a robust 221 horsepower engine with a large 506.5 cubic inch displacement that provides the muscle needed to handle large implements. The six-cylinder engine is liquid-cooled with a turbocharger and intercooler to maintain optimum operating temperatures and improve efficiency, even under heavy loads. The tractor operates on a 4x4 MFWD 4WD chassis and utilizes a full power shift transmission that offers 19 forward and 4 reverse speeds—or an alternative pattern with 23 forward and 6 reverse speeds—with an electro-hydraulic wet disc clutch, highlighting its adaptability for various tasks. Equipped with power steering and a comfortable operating station, the T8010 is designed for ease of use and efficiency throughout long working hours. The tractor's weight can range from 19,752 lbs when shipped to 21,150 lbs during operation. While specific dimensions and tire sizes are not provided, it is known that the front and rear tire fittings are sized 16.9R30 and 20.8R42 respectively. As a vehicle built for heavy-duty agricultural tasks, it features a Category 3 three-point hitch at the rear. Regarding starting mechanisms, the T8010 has a 12-volt electric starter system. Although other details such as PTO speeds and hydraulic system type are not specified, the T8010's specifications suggest a powerful and reliable tractor capable of handling a wide range of farming applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 221

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 21,150

Fuel Type: Diesel

New Holland T8010 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
506.5
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2200
Power Output (hp)
221

Transmission

Type
Full power shift
Forward Gears
23
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
21,150

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category 3-Point Hitch (IIIN/III)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
