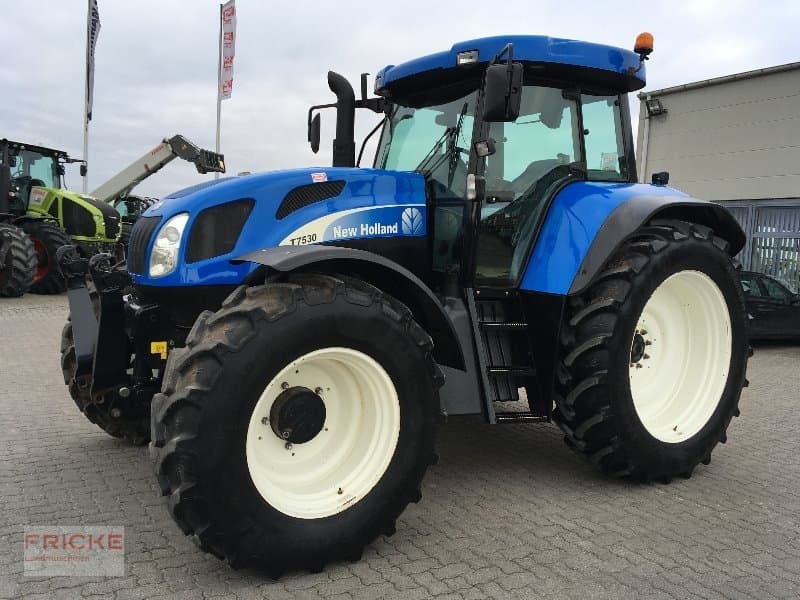

New Holland T7530

Last Updated: June 2024

Overview

The New Holland T7530 is a robust 4WD tractor equipped with a 6.6 L, 6-cylinder liquid-cooled engine. It features a continuously variable (CVT) transmission with an infinite 3-range selection for both forward and reverse gears. This tractor, operating at a rated RPM of 2100, delivers a power output of 157.8 hp and impressive torque of 659.8 Nm at just 1400 RPM, suitable for demanding agricultural tasks. The chassis is set on a 4x4 MFWD wheelbase and maintains a ground clearance of 19.7 inches, which allows for a variety of field operations. With a length of 186.6 inches, a width of 98 inches, and a height of 118.1 inches, the T7530 weighs in at 14,310 lbs. Tire specifications include 540/65 R28 for the front and 650/65 R38 for the rear, which would typically suggest agricultural usage suited for various terrains. The hydraulic system is of the closed center load sensing type, but specifics like the hydraulic flow and maximum pressure capacity were not mentioned. The details of hitch type and PTO system also remain unknown, which could limit the information on this tractor's capability to power attachments. Without specific manufacturing years or a hitch category, the versatility and longevity of the T7530 remain partially undefined.
Show more...

Key Specifications

Power Output: 157.8

Transmission: Continuously variable (CVT)

Drive Type: 4WD

Operating Weight: 14310

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Intercooled turbocharged
Cylinders
6-cylinder
Displacement (ci)
402.8
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
157.8

Transmission

Type
Continuously variable (CVT)
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
Infinite (3-range forward and reverse)

Dimensions

Length (in)
186.6
Width (in)
98
Height (in)
118.1
Operating Weight (lb)
14310

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center load sensing
