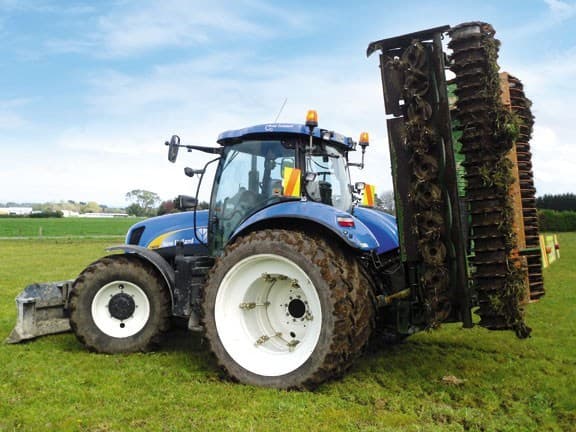

New Holland T6080 Elite

Last Updated: June 2024

Overview

The New Holland T6080 Elite is a row-crop tractor that is designed for a variety of agricultural tasks and is known particularly for its robust design and powerful performance. With a 4x4 MFWD 4WD chassis, the tractor ensures significant traction and stability across diverse terrains. It is equipped with hydrostatic power steering, facilitating easier maneuverability. Enclosed in a cabin providing what can be assumed as a comfortable workspace, the tractor stands tall with 113.4 inches in height to the cab and 112.4 inches to the exhaust. An 18-speed full power shift transmission provides flexibility and efficiency in gear selection. The T6080 Elite is powered by an FPT NEF 6-cylinder, 24-valve, liquid-cooled, turbocharged diesel engine with a displacement of 410.6 cubic inches, delivering a rated power of 155 hp and capable of reaching 2200 RPM at peak. The engine also features a modern high-pressure common rail (HPCR) fuel system. The tractor's operation weight is notably 14585 pounds, indicating its heavy-duty status. Potential applications involve a wide range of crop cultivation tasks, demanding both power and precision from the machine.
Show more...

Key Specifications

Category: Row Crop

Power Output: 155

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 14585

Fuel Type: diesel

New Holland T6080 Elite vs. Similar Tractors

Power Output
Average
Greater than 56% of similar tractors.
Operating Weight
Average
Greater than 59% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
NEF
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
diesel
Induction Type
turbocharged air-to-air intercooled
Cylinders
6
Displacement (ci)
410.6
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
155

Transmission

Type
full power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
113.4 (cab), 112.4 (exhaust)
Operating Weight (lb)
14585

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type: 2/3N
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed center load sensing
