New Holland T6070 Plus

Last Updated: July 2024

Overview

The New Holland T6070 Plus is a utility tractor engineered for various agricultural tasks. Its front wheel assist chassis and hydrostatic power steering system ensure enhanced maneuverability. The tractor features a 16-speed selective gear fixed ratio transmission with partial (8) range operator controlled powershift. Powered by a CNH Diesel 6.7 L, 6-cylinder, turbocharged, air-to-air aftercooled engine, it delivers 128.1 horsepower at 2197 rpm. The cooling system includes a thermostat and variable speed fan. With a weight of 13,130 lbs and a height of nearly 115 inches at the exhaust, the T6070 Plus is built for robust performance in demanding agricultural tasks. It offers a maximum torque of 488.7 lb.-ft. at 1000 rpm with a 59.7% torque rise. The hydraulic system can exert a maximum force of 7665 lbs with a pump delivery rate of 25.2 GPM at maximum hydraulic power.
Show more...

Key Specifications

Category: Utility

Power Output: 128.1

Transmission: selective gear fixed ratio with partial (8) range operator controlled powershift

Drive Type: MFWD 4WD

Operating Weight: 13130

Fuel Type: Fuel No. 2 Diesel

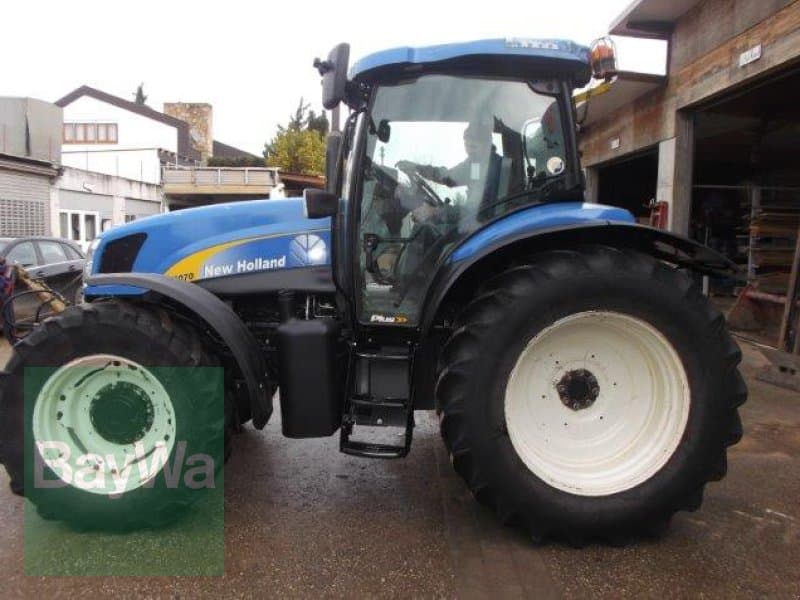

Image Gallery

New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor New Holland T6070 Plus Tractor

New Holland T6070 Plus vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH Diesel
Model
-
Cooling Type
liquid-cooled with thermostat and variable speed fan
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Fuel No. 2 Diesel
Induction Type
turbocharged air-to-air aftercooled
Cylinders
6
Displacement (ci)
411
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
128.1

Transmission

Type
selective gear fixed ratio with partial (8) range operator controlled powershift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
114.9 (height to exhaust)
Operating Weight (lb)
13130

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
front wheel assist
Drive Type
MFWD 4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed center load-sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: December 2007 to May 2008

[Test results content as provided]
