New Holland T6050 Delta

Last Updated: July 2024

Overview

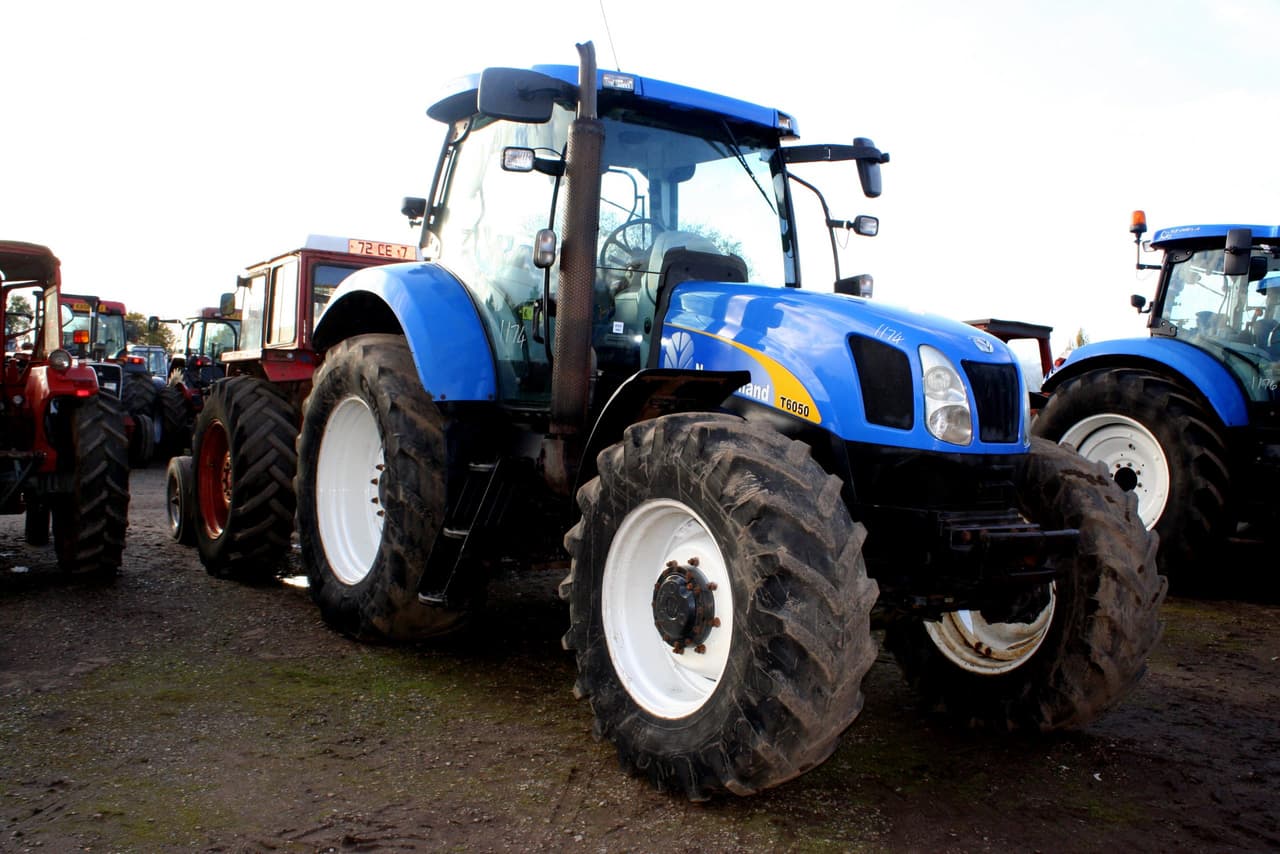

The New Holland T6050 Delta is a utility tractor with a front wheel assist chassis and hydrostatic power steering. Its liquid-cooled, turbocharged, and intercooled 6-cylinder diesel engine manufactured by CNH has a displacement of 410 cubic inches and produces a maximum power output of 114.8 hp. Key specifications include a 24-speed transmission, 12-valve engine configuration, 435.2 lb-ft maximum torque at 901 rpm with 58.7% torque rise, wet disc hydraulically actuated brakes, and a Category II 3-point hitch. The tractor's hydraulic system features a relief valve pressure of 2320 psi, pump delivery rates of 16.6 GPM and 14.8 GPM at minimum and maximum pressures respectively, and a maximum force exerted of 6610 lbs with two lift assist cylinders. PTO performance is rated at 113.3 hp at 2121 rpm (1001 rpm PTO speed). Maximum drawbar performance in 7th gear is 90.4 hp with a 6665 lbs drawbar pull at 5.08 mph.
Show more...

Key Specifications

Category: Utility

Power Output: 114.8

Operating Weight: 11530

Fuel Type: Diesel

Image Gallery

New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor New Holland T6050 Delta Tractor

New Holland T6050 Delta vs. Similar Tractors

Power Output
Above Average
Greater than 88% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
12-valve
Fuel Type
Diesel
Induction Type
turbocharged air-to-air intercooled
Cylinders
6
Displacement (ci)
410
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
114.8

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
178.4
Width (in)
75.3
Height (in)
ROPS: 114.1 | Cab: 111
Operating Weight (lb)
11530

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Front Wheel Assist
Drive Type
-
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 2007 to January 2008

Maximum Power and Fuel Consumption

  • Rated Engine Speed (PTO speed—1037 rpm): 114.8 HP (85.6 kW) at 2197 rpm
  • Fuel Consumption at Rated Engine Speed: 6.97 Gal/hr (26.37 l/h) with a fuel efficiency of 0.425 lb/hp.hr (0.259 kg/kW.h) and 16.48 Hp.hr/gal (3.25 kW.h/l)
  • Standard Power Take-off Speed (1001 rpm): 113.3 HP (84.5 kW) at 2121 rpm

Drawbar Performance

  • Maximum Power—7th Gear (7B): 90.4 HP (67.4 kW) with a drawbar pull of 6665 lbs (29.65 kN), speed of 5.08 mph (8.18 km/h), and fuel efficiency of 0.539 lb/hp.hr (0.328 kg/kW.h)
  • Maximum Power—5th Gear (5B): 86.2 HP (64.3 kW) with a drawbar pull of 10390 lbs (46.23 kN), speed of 3.11 mph (5.01 km/h), and fuel efficiency of 0.555 lb/hp.hr (0.337 kg/kW.h)

Torque and Engine Performance

  • Maximum Torque: 435.2 lb.-ft. (590.1 Nm) at 901 rpm
  • Torque Rise: 58.7% with a torque rise at 1800 engine rpm of 17%

Hydraulic Performance

  • Maximum Force Exerted: 5305 lbs (23.6 kN) with one lift assist cylinder, 6610 lbs (29.4 kN) with two lift assist cylinders
  • Pump Delivery Rate: 16.6 GPM (62.8 l/min) at minimum pressure and 14.8 GPM (56.0 l/min) at maximum hydraulic power
  • Hydraulic Power: 20.0 HP (14.9 kW) at delivery pressure of 2320 psi (160 bar)

    NTTL.(2009).Nebraska Summary: S668 New Holland T6050 Delta. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3144
