New Holland T6030 Elite

Last Updated: July 2024

Overview

The New Holland T6030 Elite is a row-crop tractor designed for high-efficiency agriculture tasks. It features a robust four-wheel drive (4WD) chassis system, reinforcing its capability in various terrains and farming operations. Steering is facilitated by a hydrostatic power system, providing ease of maneuverability. The T6030 Elite is powered by a CNH 6-cylinder, 410 cubic inch, liquid-cooled, turbocharged diesel engine with a high pressure common rail (HPCR) fuel system that meets Tier 3 emissions standards. At 2200 RPM, the engine is rated at 102.2 horsepower (non-boosted) with a maximum power output of 138.8 horsepower at 1998 RPM (boosted). For the transmission, the tractor offers an 18-speed partial power shift, promoting efficient field operation. The tractor stands tall with a height of over 112 inches to the cab and approximately 113 inches to the top of the exhaust, indicating its substantial stature. The operating weight of 13,395 pounds underscores a solid and durable construction. Additional features include a 12-volt starting system, pressure lubrication, Akcela Nexplore fluid for transmission, hydraulics, and front axle, maximum torque of 391.2 lb-ft at 1600 RPM (boosted), 28.1% torque rise (boosted), detailed drawbar and PTO performance data, maximum hydraulic force of 7915 lbs, hydraulic pump delivery rates and pressures, and detailed hitch dimensions and lift force data.
Show more...

Key Specifications

Category: Row Crop

Power Output: 138.8

Transmission: partial power shift

Drive Type: 4WD

Operating Weight: 13395

Fuel Type: diesel

Image Gallery

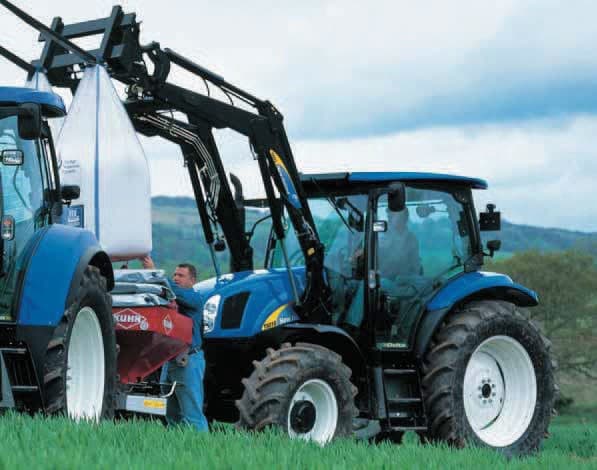

New Holland T6030 Elite Tractor New Holland T6030 Elite Tractor New Holland T6030 Elite Tractor New Holland T6030 Elite Tractor

New Holland T6030 Elite vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
NEF
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
diesel
Induction Type
turbocharged air-to-air intercooled
Cylinders
6
Displacement (ci)
410
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
138.8

Transmission

Type
partial power shift
Forward Gears
-
Reverse Gears
-
Total Gears
18

Dimensions

Length (in)
-
Width (in)
-
Height (in)
112.4 (height from cab), 113.4 (height from exhaust)
Operating Weight (lb)
13395

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category III
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Direct engine drive

Test Results

Nebraska Tractor Test Laboratory - Test Date: September to December, 2008

Maximum Power and Fuel Consumption

  • Maximum Power: 138.8 HP (103.5 kW) at 1998 rpm
  • Fuel Consumption at Maximum Power: 7.83 Gal/hr (29.63 l/h) with a fuel efficiency of 0.396 lb/hp.hr (0.241 kg/kW.h)
  • Standard PTO Power Take-off Speed (1000 rpm): 132.9 HP (99.1 kW) at 2119 rpm with a fuel consumption of 7.59 Gal/hr (28.73 l/h) and fuel efficiency of 0.400 lb/hp.hr (0.244 kg/kW.h)

Drawbar Performance

  • Power at Rated Engine Speed (8th Gear): 74.3 HP (55.4 kW) with a drawbar pull of 6675 lbs (29.7 kN) and a speed of 4.17 mph (6.71 km/h)
  • Fuel Consumption at Rated Speed: 0.588 lb/hp.hr (0.357 kg/kW.h) with a fuel efficiency of 11.93 Hp.hr/gal (2.35 kW.h/l)
  • Maximum Power in 8th Gear: 88.9 HP (66.3 kW) at a speed of 3.57 mph (5.75 km/h)

Torque and Engine Performance

  • Maximum Torque: 391.2 lb.-ft. (530.4 Nm) at 1600 rpm
  • Torque Rise: 28.1% with a torque rise at 1800 engine rpm of 25%

Hydraulic Performance

  • Maximum Force Exerted: 7915 lbs (35.2 kN) at hitch points
  • Pump Delivery Rate: 29.1 GPM (110.1 l/min) at minimum pressure and rated engine speed
  • Hydraulic Power: 41.0 HP (30.6 kW) at delivery pressure of 2755 psi (190 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.50 Hp.hr/gal (3.45 kW.h/l)
  • Fuel Consumption: 7.59 Gal/hr (28.73 l/h) at 2119 rpm

    Nebraska Tractor Test Lab.(2008). Nebraska Summary: S673 New Holland T6030 Elite PC. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3139
