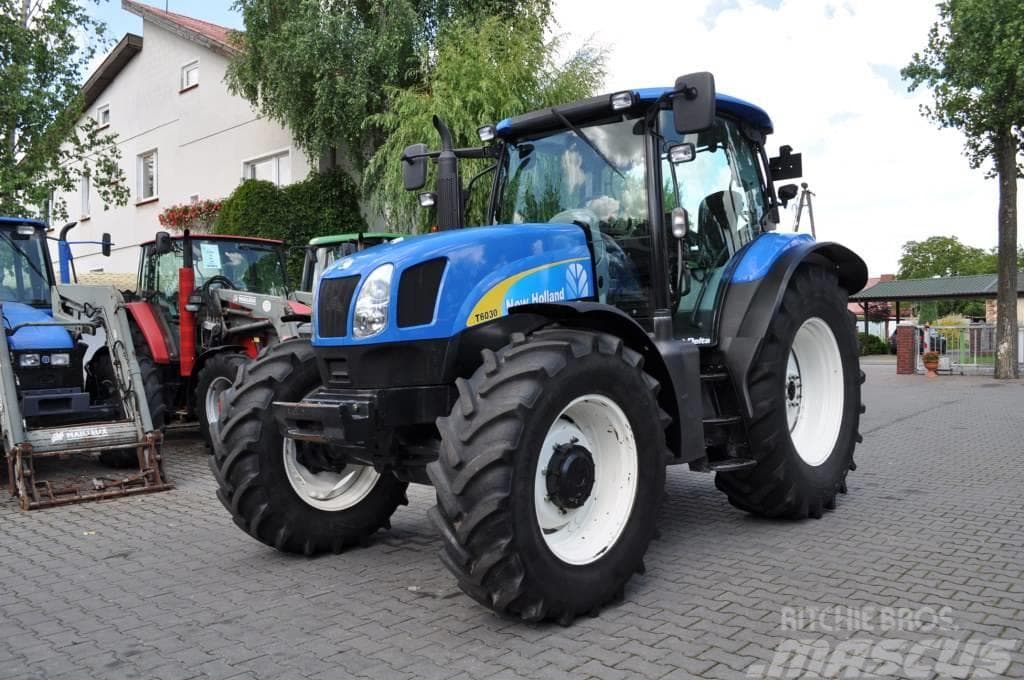

New Holland T6030 Delta

Last Updated: July 2024

Overview

The New Holland T6030 Delta is a utility category tractor available in 2WD or 4WD configurations. It is powered by a 6-cylinder, 410 cubic inch, turbocharged and intercooled diesel engine from CNH rated at 115 hp at 2200 RPM. The transmission is a selective gear fixed ratio with partial (8) range-operator controlled powershift, offering 16 forward and 16 reverse gears. Key specifications include a maximum torque of 420.1 lb-ft at 898 RPM with a 58% torque rise, hydrostatic power steering, and a direct engine-driven hydraulic system with a pump delivery rate of up to 17.1 GPM. The three-point hitch (Category II) has a maximum observed force of 6450 lbs. Overall dimensions are 169 inches long, 75.2 inches wide, and 113.8/110.6 inches tall, with an operating weight of 11,065 lbs with operator.
Show more...

Key Specifications

Category: Utility

Power Output: 115

Transmission: Selective gear fixed ratio with partial (8) range-operator controlled powershift

Drive Type: 2WD/4WD

Operating Weight: 11065

Fuel Type: Diesel

Image Gallery

New Holland T6030 Delta Tractor New Holland T6030 Delta Tractor New Holland T6030 Delta Tractor New Holland T6030 Delta Tractor New Holland T6030 Delta Tractor New Holland T6030 Delta Tractor

New Holland T6030 Delta vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.
Hitch Capacity
Excellent
Greater than 98% of similar tractors.
Operating Weight
Excellent
Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged air-to-air intercooled
Cylinders
6
Displacement (ci)
410
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
115

Transmission

Type
Selective gear fixed ratio with partial (8) range-operator controlled powershift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
169
Width (in)
75.2
Height (in)
113.8/110.6
Operating Weight (lb)
11065

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic clutch
PTO Speed 1 (rpm)
540/1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD/4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2012
Hitch Type
Three-point
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
6450
Operator Station Type
Open/Cab
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Direct engine drive

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 2007 to January 2008

Maximum Power and Fuel Consumption

  • Rated Engine Speed (PTO speed—1037 rpm): 111.3 HP (83.0 kW) at 2197 rpm
  • Fuel Consumption at Rated Speed: 6.77 Gal/hr (25.61 l/h) with a fuel efficiency of 0.426 lb/hp.hr (0.259 kg/kW.h)
  • Fuel Efficiency: 16.45 Hp.hr/gal (3.24 kW.h/l)

Drawbar Performance

  • Maximum Power (9th Gear): 93.3 HP (69.6 kW) with a drawbar pull of 5790 lbs (25.76 kN) and a speed of 6.04 mph (9.73 km/h)
  • Fuel Consumption at Maximum Power (9th Gear): 0.508 lb/hp.hr (0.309 kg/kW.h) with a fuel efficiency of 13.81 Hp.hr/gal (2.72 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 420.1 lb.-ft. (569.6 Nm) at 898 rpm
  • Torque Rise: 58.0%

Hydraulic Performance

  • Maximum Force Exerted: 6450 lbs (28.7 kN)
  • Pump Delivery Rate: 17.1 GPM (64.8 l/min) at minimum pressure

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.75 Hp.hr/gal (3.30 kW.h/l)
  • Fuel Consumption: 6.64 Gal/hr (25.15 l/h) at 2119 rpm



Nebraska Tractor Test Lab.(2007).Nebraska Summary: S667 New Holland T6030 Delta. Lincoln, NE: University of Nebraska–Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3145
