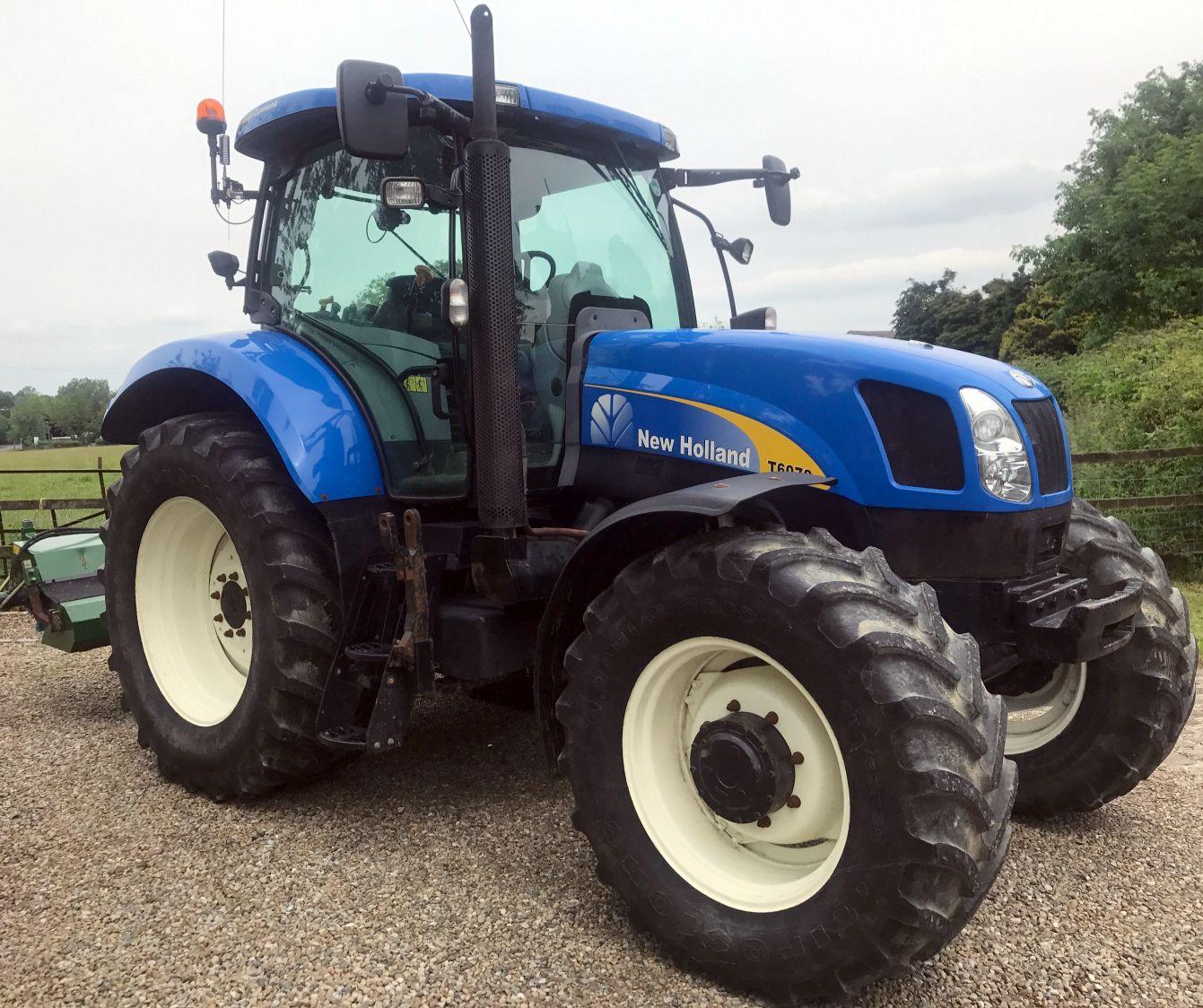

New Holland T6010

Last Updated: June 2024

Overview

The New Holland T6010 is a robust and versatile tractor designed for a variety of tasks in the agricultural sector. It features a 4x4 MFWD 4WD chassis, optimizing it for traction and handling across different terrains. Under the hood, it's powered by a New Holland 4-cylinder, turbocharged, 8-valve, liquid-cooled, 273.7 cubic inch engine that delivers 99.2 horsepower at 2200 rpm. Multiple transmission options are available, including a Dual Command transmission with up to 48 forward and reverse gears and an Electro Command transmission, catering to various task complexities. The tractor has a wheelbase of 95 inches, ensuring stability, and its operating weight ranges from 10,450 to 11,110 pounds. The T6010's dimensions, with a length of 169 inches, width of 73.7 inches, and height of 107.3 inches, denote a substantial presence that can handle demanding jobs. However, details such as tire type, starter type, and hydraulic system remain unspecified. This tractor is well-suited for medium to large-scale farming operations where power and reliability are key considerations.
Show more...

Key Specifications

Power Output: 99.2

Drive Type: 4WD

Operating Weight: 10450 to 11110

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
-
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
273.7
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
99.2

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
48

Dimensions

Length (in)
169
Width (in)
73.7
Height (in)
107.3
Operating Weight (lb)
10450 to 11110

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
