New Holland T5070

Last Updated: July 2024

Overview

The New Holland T5070 is a utility tractor equipped with a turbocharged intercooled 4-cylinder diesel engine manufactured by CNH Italia SpA. It has a displacement of 274 cubic inches (4485 ml) and a compression ratio of 17.0 to 1. The engine produces a maximum power output of 98.6 hp (2WD) or 101.0 hp (FWA) at 2300 rpm. The transmission is a 12-speed selective gear fixed ratio with 12 forward and 12 reverse gears. The chassis is available in 2WD or 4WD (Front Wheel Assist) configurations. The tractor has power steering, a three-point hitch (Category II) at the rear, and an open center hydraulic system. The wheelbase measures 92.2 inches for the 2WD and 92.5 inches for the FWA variant. The length is 92.2 inches (2WD) or 92.5 inches (FWA), and the height is 100.8 inches. The brake system consists of wet disc brakes hydraulically operated by two foot pedals. The Power Take-Off (PTO) operates at 540 rpm at 2198 engine rpm or 1000 rpm at 2261 engine rpm. Detailed test results are available for drawbar performance, hydraulic performance, hitch performance, sound levels, weight, and tire specifications.
Show more...

Key Specifications

Category: Utility

Power Output: 98.6 (2WD) / 101.0 (FWA)

Transmission: 12-speed selective gear fixed ratio

Drive Type: 2WD / 4WD (Front Wheel Assist)

Fuel Type: Diesel

Image Gallery

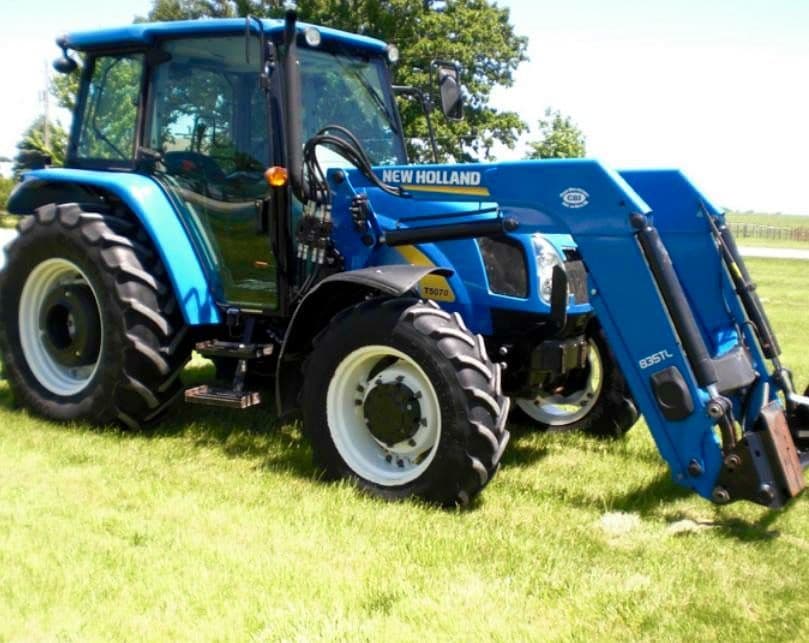

New Holland T5070 Tractor New Holland T5070 Tractor New Holland T5070 Tractor New Holland T5070 Tractor New Holland T5070 Tractor New Holland T5070 Tractor

New Holland T5070 vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH Italia SpA
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
274 (4485 ml)
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
98.6 (2WD) / 101.0 (FWA)

Transmission

Type
12-speed selective gear fixed ratio
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
92.2 (2WD) / 92.5 (FWA)
Width (in)
-
Height (in)
100.8
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
2WD (with Front Wheel Assist variant)
Drive Type
2WD / 4WD (Front Wheel Assist)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: December 2008 to July 2009

Maximum Power and Fuel Consumption

  • Maximum Power: 103.0 HP (76.8 kW) at 2001 rpm
  • Fuel Consumption at Maximum Power: 5.95 Gal/hr (22.54 l/h) with a fuel efficiency of 0.405 lb/hp.hr (0.246 kg/kW.h)
  • Standard PTO Speed (1000 rpm): 99.5 HP (74.2 kW) at 2261 rpm, 6.31 Gal/hr (23.87 l/h), 0.444 lb/hp.hr (0.270 kg/kW.h)

Drawbar Performance

  • Maximum Power at 7th Gear (3 II): 80.7 HP (60.2 kW) with a drawbar pull of 6010 lbs (26.73 kN) and speed of 5.04 mph (8.11 km/h)
  • Fuel Consumption at Maximum Power in 7th Gear: 0.540 lb/hp.hr (0.329 kg/kW.h) with fuel efficiency of 12.97 Hp.hr/gal (2.56 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 332.7 lb.-ft. (451.1 Nm) at 999 rpm
  • Torque Rise: 47.8% with a torque rise at 1800 engine rpm of 28%

Hydraulic Performance

  • Maximum Force Exerted: 4180 lbs (18.6 kN) at hitch points
  • Pump Delivery Rate: 21.3 GPM (80.8 l/min) at minimum pressure and rated engine speed
  • Hydraulic Power: 23.3 HP (17.4 kW) at delivery pressure of 2030 psi (140 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 15.78 Hp.hr/gal (3.11 kW.h/l)
  • Fuel Consumption: 6.31 Gal/hr (23.87 l/h) at 2261 rpm



NTTL.(2008). Nebraska Summary: S741 New Holland T5070 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3226
