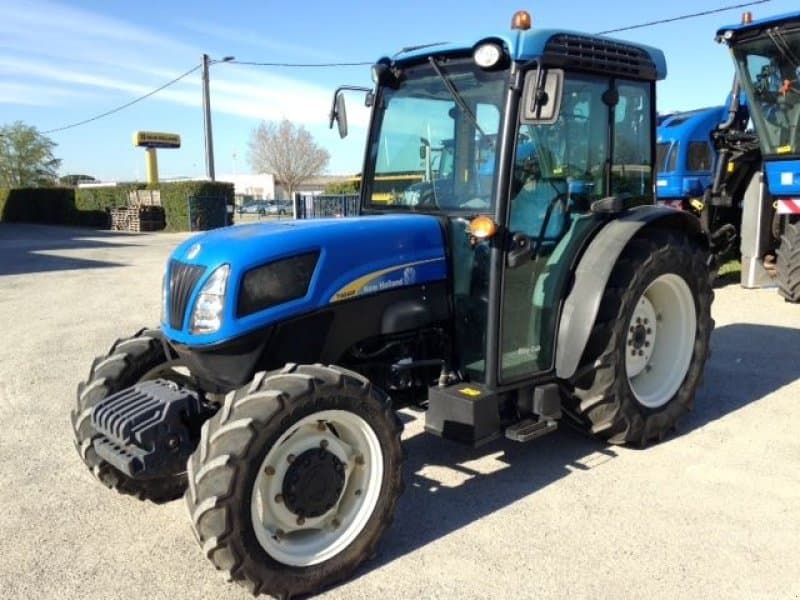

New Holland T4040F

Last Updated: September 2024

Overview

The New Holland T4040F is a utility tractor built for versatility and power. It features a 2WD chassis with power steering, making it easy to maneuver in various farm settings. The tractor is equipped with a mechanical shuttle transmission, offering an impressive 32 forward and 16 reverse gears for precise speed control.

Under the hood, the T4040F boasts a New Holland F5C engine. This 4-cylinder diesel engine is turbocharged and intercooled, providing strong performance with 87 hp at 2300 rpm. The engine displacement is average for its class at 195 cubic inches. With a rear 3-point hitch and an open center hydraulic system, this tractor is ready to handle a wide range of farm implements. The T4040F weighs 6089 lb, which is above average for its category, offering good stability. Its compact width of 58.5 inches makes it suitable for working in tight spaces or between crop rows.
Show more...

Key Specifications

Category: Utility

Power Output: 87 hp (64.9 kW)

Transmission: Mechanical Shuttle

Drive Type: 2WD

Operating Weight: 6089 lb (2762 kg)

Fuel Type: Diesel

New Holland T4040F vs. Similar Tractors

Power Output

The Power Output for the New Holland T4040F is Above Average. It is greater than 76% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the New Holland T4040F is Average. It is greater than 61% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the New Holland T4040F is Average. It is greater than 56% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the New Holland T4040F is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
New Holland
Model
F5C
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement
195 ci (3.2 L)
Rated RPM
2300
Power Output
87 hp (64.9 kW)

Transmission

Type
Mechanical Shuttle
Total Gears
32 forward, 16 reverse

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
