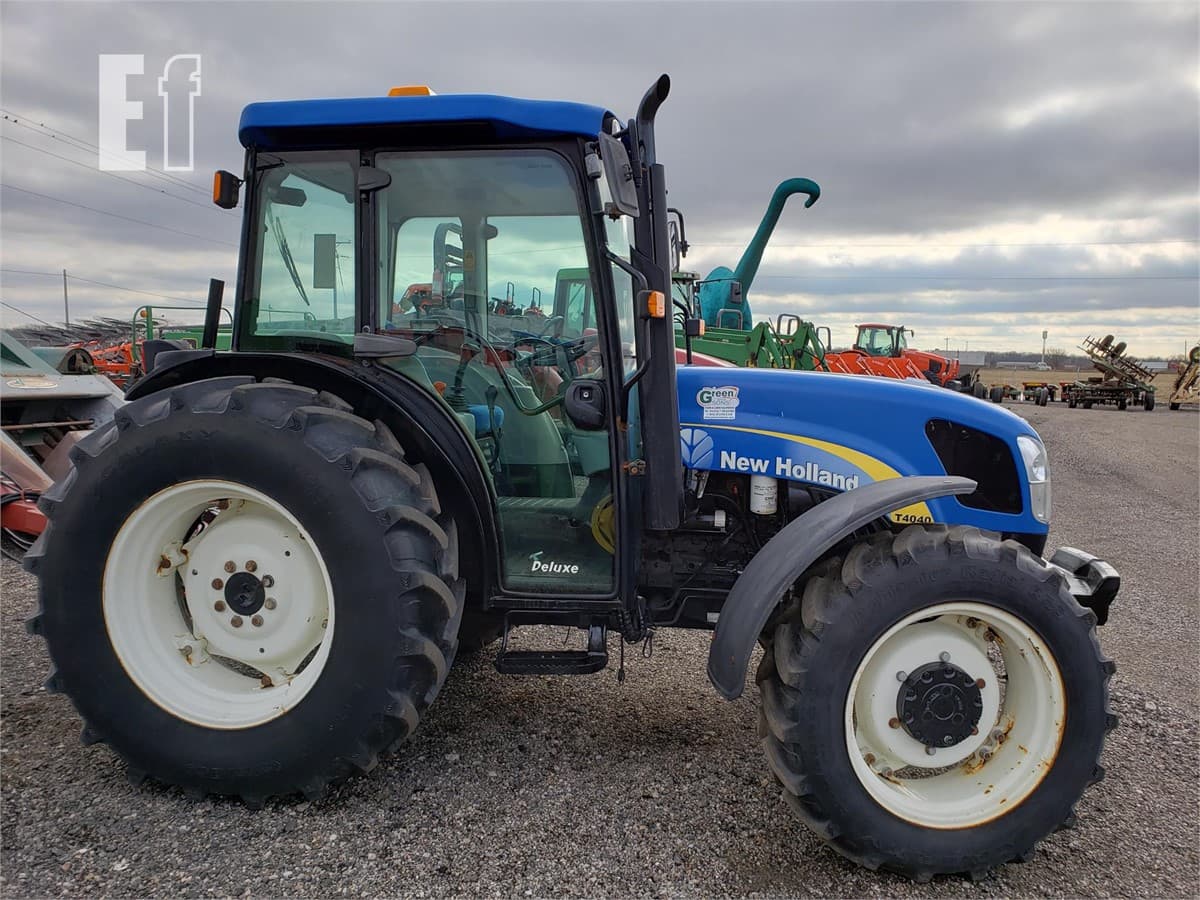

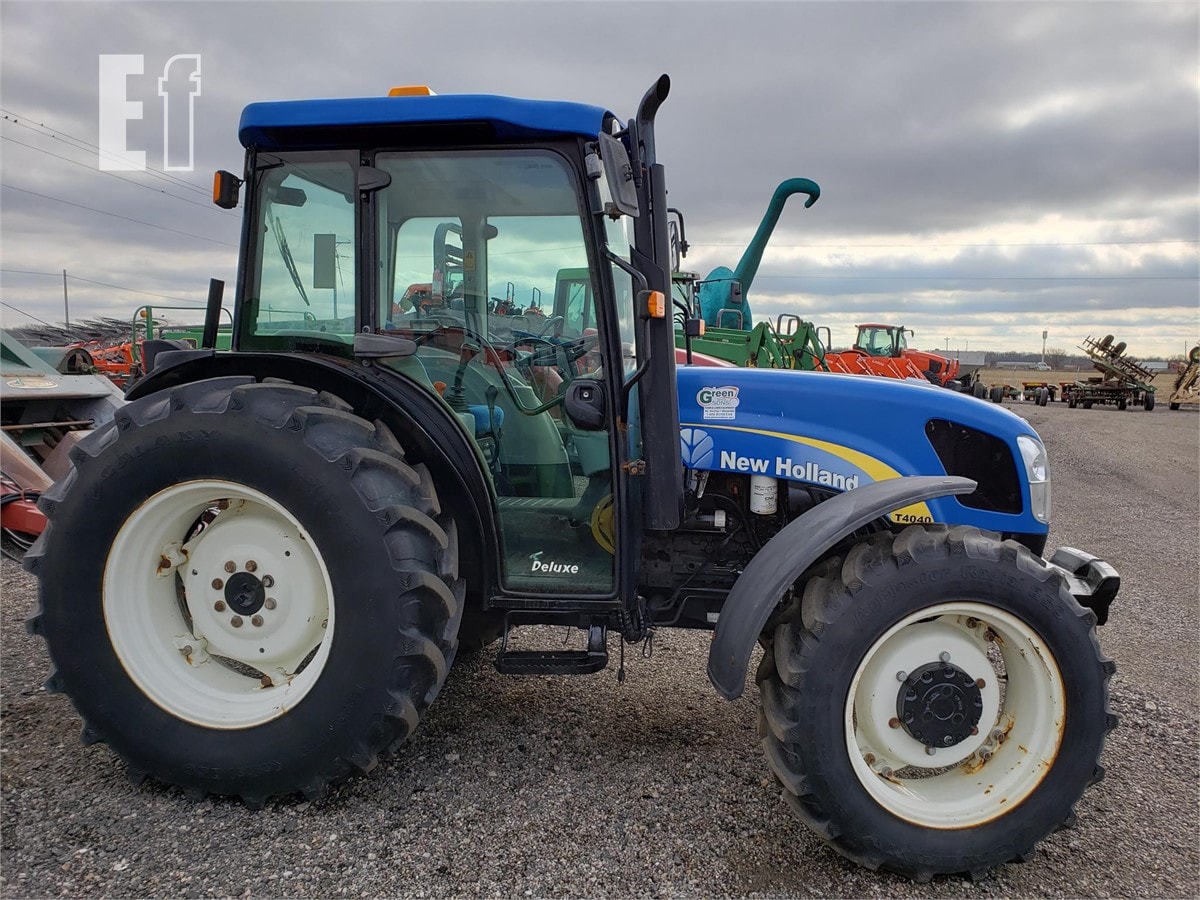

New Holland T4040

Last Updated: July 2024

Overview

The New Holland T4040 is a versatile and robust utility tractor designed for a variety of tasks. The machine is powered by a 4-cylinder, turbocharged intercooled diesel engine with a displacement of 274 cubic inches and rated at 84 horsepower, while operating at a rated RPM of 2300. With a hydrostatic power steering system, it ensures ease of maneuverability. The tractor comes standard with a mechanical shuttle transmission offering up to 16 forward and reverse speeds, accommodating various operational requirements. Notably, the tractor provides sufficient flexibility in terms of spacing with adjustable front and rear treads. It operates efficiently with a weight range between 5953 to 6944 pounds and is specified with features such as open centre hydraulics and a Category 3 hitch system. The T4040 is equipped with comforts including an optional cab or foldable ROPS, making it suitable for diverse working conditions. As practicality is emphasized, the tractor showcases a combination of power, ease of use, and adaptability suitable for various agricultural, landscaping, or utility tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 84

Transmission: mechanical shuttle

Drive Type: 2WD

Operating Weight: 5953 to 6944

Fuel Type: diesel

Image Gallery

New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor New Holland T4040 Tractor

New Holland T4040 vs. Similar Tractors

Power Output
Above Average
Greater than 73% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
NEF
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged intercooled
Cylinders
4
Displacement (ci)
274
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
84

Transmission

Type
mechanical shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
138.6
Width (in)
-
Height (in)
91.4 (cab), 77.8 (folded ROPS)
Operating Weight (lb)
5953 to 6944

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab, ROPS
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: July to September 2008

Maximum Power and Fuel Consumption

  • Rated Engine Speed (PTO speed—564 rpm): 75.2 HP (56.1 kW) at 2302 rpm
  • Fuel Consumption at Rated Speed: 4.72 Gal/hr (17.87 l/h) with a fuel efficiency of 0.439 lb/hp.hr (0.267 kg/kW.h), 15.94 Hp.hr/gal (3.14 kW.h/l)
  • Standard PTO Speed (540 rpm): 74.6 HP (55.6 kW) at 2205 rpm
  • Fuel Consumption at Standard PTO Speed: 4.51 Gal/hr (17.06 l/h) with a fuel efficiency of 0.422 lb/hp.hr (0.257 kg/kW.h), 16.55 Hp.hr/gal (3.26 kW.h/l)

Drawbar Performance

  • Maximum Power—7th (3M) Gear: 63.2 HP (47.1 kW) with a drawbar pull of 4630 lbs (20.60 kN) and a speed of 5.11 mph (8.23 km/h)
  • Fuel Consumption at Maximum Power: 0.506 lb/hp.hr (0.308 kg/kW.h) with a fuel efficiency of 13.81 Hp.hr/gal (2.72 kW.h/l)
  • Maximum Power in 8th (1H) Gear: 63.8 HP (47.6 kW) with a drawbar pull of 3465 lbs (15.41 kN) and a speed of 6.91 mph (11.12 km/h)

Torque and Engine Performance

  • Maximum Torque: 271.5 lb.-ft. (368.1 Nm) at 888 rpm
  • Torque Rise: 58.2% with a power increase at 1850 engine rpm of 12%

Hydraulic Performance

  • Observed Maximum Pressure: 2975 psi (205 bar) at remote outlets
  • Pump Delivery Rate at Minimum Pressure: 16.9 GPM (64.0 l/min) for the Standard pump
  • Hydraulic Power: 21.2 HP (15.7 kW) at a delivery pressure of 2420 psi (167 bar)

Overall Efficiency

  • Fuel Efficiency at Rated PTO Speed (564 rpm): 15.94 Hp.hr/gal (3.14 kW.h/l)
  • Fuel Consumption at Standard PTO Speed: 4.51 Gal/hr (17.06 l/h)



NTTL.(2008).Nebraska OECD Tractor test 2477 for New Holland T4040 Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3214
