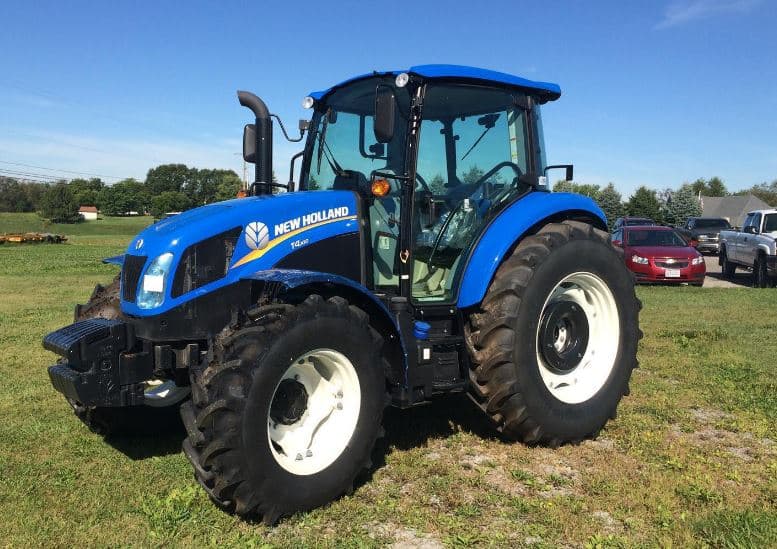

New Holland T4.100

Last Updated: June 2024

Overview

The New Holland T4.100 is a versatile utility tractor that comes equipped with an FPT turbocharged diesel engine, optionally in a 195 or 207 cubic-inch displacement, providing 94 to 99 horsepower, and runs at a rated RPM of 2300. Available with different transmission options including partially synchronized mechanical shuttle, mechanical shuttle, power shuttle, and a two-speed power shift known as Dual Command, this tractor can have up to 24 forward and reverse gears. It's designed with hydrostatic power steering and can be either 2WD or 4WD, with the wheelbase varying slightly between configurations. The operating weight ranges from 6989 to 8157 pounds, and it offers a high hitch lift capacity of up to 9436 pounds, ensuring powerful performance for various farming tasks. Distinguishing features like a dry-type air cleaner and grid heater for pre-heating underscore its focus on reliability and durability in diverse conditions. A choice between ROPS or cabin types provides flexibility for operator comfort and safety. The T4.100 is a strong candidate for a range of utility tasks on any modern farm.
Show more...

Key Specifications

Category: Utility

Power Output: 94 / 99 (two different power outputs provided)

Transmission: Partially synchronized mechanical shuttle / Mechanical shuttle / Power shuttle / Two-speed power shift

Drive Type: 2WD

Operating Weight: 6989 to 8157

Fuel Type: Diesel

New Holland T4.100 vs. Similar Tractors

Power Output
Excellent
Greater than 99% of similar tractors.
Hitch Capacity
Above Average
Greater than 85% of similar tractors.
Operating Weight
Excellent
Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT (assumed from Engine detail mentioning FPT as the engine detail)
Model
F5G (assumed from Engine detail mentioning FPT F5G)
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled / Aftercooled Turbocharged Diesel (both types mentioned)
Cylinders
4-Cylinder
Displacement (ci)
195 / 207 (provided two different measurements)
Bore (in)
3.898 / 3.898 (two identical measures for bore size provided)
Stroke (in)
4.094 / 4.331 (two different stroke measurements provided)
Rated RPM
2300
Power Output (hp)
94 / 99 (two different power outputs provided)

Transmission

Type
Partially synchronized mechanical shuttle / Mechanical shuttle / Power shuttle / Two-speed power shift
Forward Gears
8 / 12 / 24 (assumed from total gears and types)
Reverse Gears
8 / 12 / 24 (assumed from total gears and types)
Total Gears
24 (highest number provided assuming it covers all options)

Dimensions

Length (in)
163.1/160.1 (assumed to be the range for 2WD and 4WD)
Width (in)
75.7
Height (in)
106.5/102.1 (assumed to be the range for ROPS and cab)
Operating Weight (lb)
6989 to 8157

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Rear Type: II (assumed rear hitch type from 'Rear Type: 2')
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
Max capacity: 9436 lbs (assumed to refer to hitch lift based on context though not explicitly stated)
Operator Station Type
Cab / ROPS (both options mentioned)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
