New Holland T1530

Last Updated: June 2024

Overview

The New Holland T1530 is a compact utility tractor, part of the T1500 Series. This model was manufactured by New Holland from 2011 to 2013. It features a Shibaura N844L four-cylinder liquid-cooled diesel engine with a displacement of 135.2 cubic inches, producing 45 horsepower at 2600 rpm. Available transmissions included an infinite (3-range) hydrostatic and a 12 forward and 12 reverse synchronized shuttle, giving varied operational flexibility. The tractor is designed with a four-wheel drive (4x4 MFWD 4WD) chassis, hydrostatic power steering, and wet disc brakes. A two-post foldable ROPS and a 39.0-liter fuel tank are also standard. Furthermore, the T1530 offers a hitch lift capacity of 2,328 pounds at 24 inches behind the lift point and a standard rear PTO speed of 540 rpm, accommodating various attachments for versatile agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Unknown (Assumption based on text: Possibility of both Hydrostatic and Sync Shuttle)

Drive Type: 4WD

Operating Weight: 3307 (Assumption: shipping weight represents operating weight)

Fuel Type: Diesel

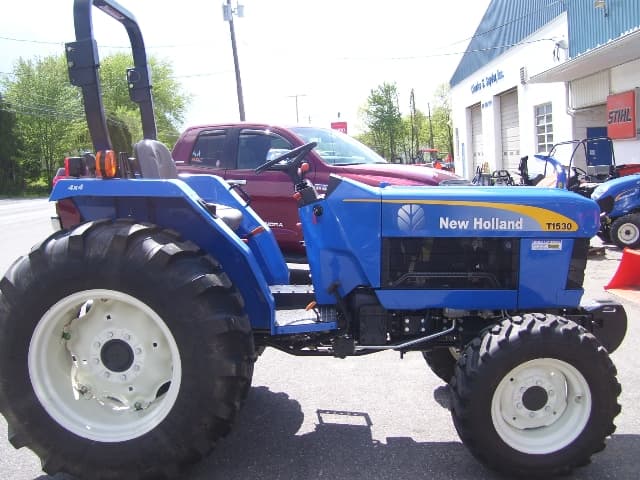

Image Gallery

New Holland T1530 Tractor New Holland T1530 Tractor New Holland T1530 Tractor New Holland T1530 Tractor New Holland T1530 Tractor New Holland T1530 Tractor New Holland T1530 Tractor New Holland T1530 Tractor

New Holland T1530 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Hitch Capacity
Excellent
Greater than 99% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
135.2
Bore (in)
3.31
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
45

Transmission

Type
Unknown (Assumption based on text: Possibility of both Hydrostatic and Sync Shuttle)
Forward Gears
Unknown (Assumption: Hydrostatic - Infinite (3-range), Sync Shuttle - 12 forward)
Reverse Gears
Unknown (Assumption: Hydrostatic - Infinite (3-range), Sync Shuttle - 12 reverse)
Total Gears
-

Dimensions

Length (in)
121.7
Width (in)
68.1
Height (in)
97.2
Operating Weight (lb)
3307 (Assumption: shipping weight represents operating weight)

Power Take-Off (PTO)

PTO Type
Unknown (Availability of both Live (gear) or independent (hydro) mentioned)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
14 (Assumption based on text: Front tire: 7.4x14)
Front Tire Width (in)
Unknown (Exact width not specified, dimension "7.4x14" could refer to either the tire width or profile)
Rear Tire Diameter (in)
24 (Assumption based on text: Rear tire: 11.2x24)
Rear Tire Width (in)
Unknown (Exact width not specified, dimension "11.2x24" could refer to either the tire width or profile)
Front/Rear Rim Diameter (in)
-
Tire Type
Unknown (Options listed but not specified which type is the standard)
Manufacture - End Year
2013
Hitch Type
-
Hitch Category
Unknown (Assuming "I" based on TS_Category)
Hitch Position
-
Hitch Capacity (lb)
2328 (at 610 mm/24 in)
Operator Station Type
Two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
