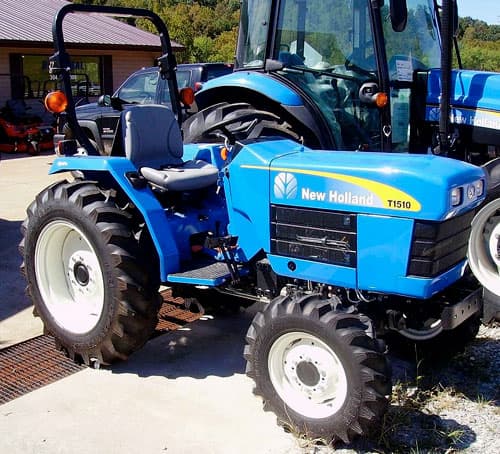

New Holland T1510

Last Updated: June 2024

Overview

The New Holland T1510 is a compact utility tractor from the T1500 series, produced by New Holland between 2008 and 2013. It was available with either a two-wheel (2WD) or four-wheel drive (4WD) chassis and powered by a Shibaura N843 three-cylinder diesel engine with a displacement of 91.3 cubic inches, delivering 30 horsepower at 2600 RPM. The tractor could be equipped with two transmission options: a hydrostatic transmission offering infinite (3-range) forward and reverse speeds, or a gear type transmission with 9 forward and 3 reverse speeds. With hydrostatic power steering, wet disc brakes, a two-post foldable ROPS, and a fuel tank capacity of 7.1 US gallons, the T1510 provided functionality and comfort. It also featured a three-point hitch with a lift capacity of 1,930 pounds and standard PTO options, adaptable for various attachments and implements including an optional loader.
Show more...

Key Specifications

Category: Utility

Power Output: 30

Transmission: Hydrostatic and Gear type

Operating Weight: 2,385

Fuel Type: Diesel

Lift Capacity: 1,930 lbs (at ends)

Image Gallery

New Holland T1510 Tractor New Holland T1510 Tractor New Holland T1510 Tractor New Holland T1510 Tractor New Holland T1510 Tractor New Holland T1510 Tractor

New Holland T1510 vs. Similar Tractors

Power Output
Below Average
Greater than 25% of similar tractors.
Hitch Capacity
Poor
Greater than 3% of similar tractors.
Operating Weight
Poor
Greater than 1% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N843
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
3
Displacement (ci)
91.3
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
30

Transmission

Type
Hydrostatic and Gear type
Forward Gears
9 (Gear type) or Infinite (3-range) (Hydrostatic)
Reverse Gears
3 (Gear type) or Infinite (3-range) (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
111.4
Width (in)
62
Height (in)
82.3
Operating Weight (lb)
2,385

Power Take-Off (PTO)

PTO Type
Live (2WD) or Transmission (4WD)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000 (Mid PTO Speed)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
14 (Ag) and Varies (Others)
Front Tire Width (in)
7.4 (Ag), 8.50 (Lawn/Turf), 8.50 (Industrial)
Rear Tire Diameter (in)
24 (Ag) and Varies (Others)
Rear Tire Width (in)
11.2 (Ag), 16 (Lawn/Turf), 19.5 (Industrial)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
2013
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
1,930 lbs (at ends)
Operator Station Type
Two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc type
Hydraulic System Type
Open center
