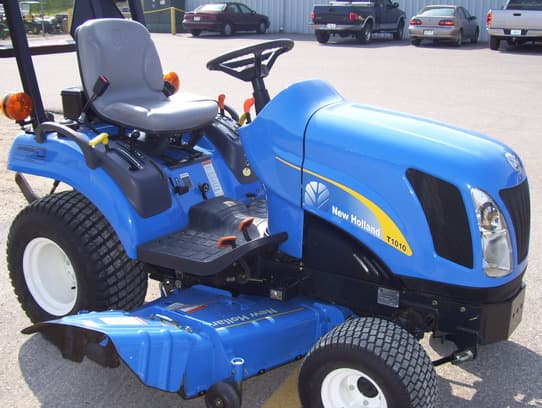

New Holland T1010

Last Updated: June 2024

Overview

The New Holland T1010 is a sub-compact utility tractor, part of the T1000 series introduced in 2008. It features a Shibaura model S753 diesel engine with a displacement of 58.2 cubic inches, producing a gross power rating of 20 horsepower at 3000 RPM. This tractor comes equipped with a hydrostatic transmission offering infinite gear ranges both forward and reverse. The T1010 is designed with a 4x4 MFWD 4WD chassis, providing better traction and power delivery. The tractor has a wheelbase of 55.1 inches and weighs approximately 1455 pounds. Its dimensions stand at 96.3 inches in length, 46.4 inches in width, and a height of 72.4 inches with ROPS. It steers with ease thanks to its power steering system and handles a variety of tasks on the property with its Category I hitch type. It comes with power steering and an open center hydraulic system. Tire options include lawn/turf and industrial types. This versatile tractor serves well for those who need a reliable machine for their sub-compact utility tasks.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 20

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1455

Fuel Type: Diesel

New Holland T1010 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
S753
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
58.2
Bore (in)
-
Stroke (in)
-
Rated RPM
3000
Power Output (hp)
20

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
96.3
Width (in)
46.4
Height (in)
72.4 (ROPS)
Operating Weight (lb)
1455

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
8.5
Rear Tire Diameter (in)
26
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center
