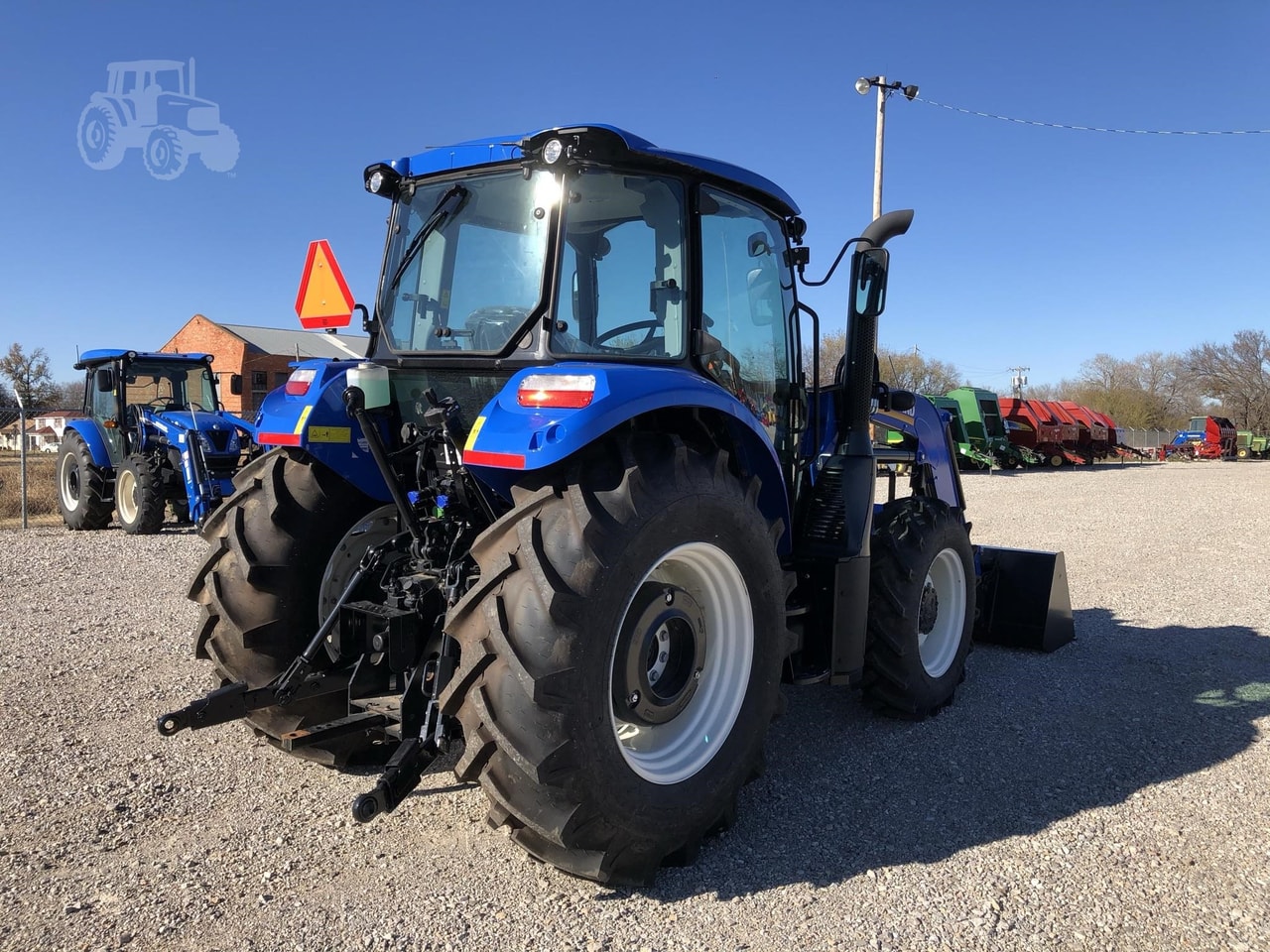

New Holland PowerStar 90

Last Updated: June 2024

Overview

The New Holland PowerStar 90 tractor, a utilitarian workhorse, is propelled by an FPT F5G diesel engine with a power output of 86 horsepower achieved through a 4-cylinder turbocharged aftercooled system with electronic high-pressure common rail direct injection. Cooling is liquid-based ensuring operational stability during extensive work sessions. Power is delivered through a choice of transmission systems – either a synchronized mechanical shuttle or a creeper both offering 12 forward and reverse gears, with the creeper option extending to 20 gears. Designed for a variety of tasks, the tractor features a three-point hitch system in the rear and the ease of operation provided by power steering. The PowerStar 90 is tailor-made to accommodate varying demands with its 2WD/4WD options and a range of operating weights depending on configuration.
Show more...

Key Specifications

Category: Utility

Power Output: 86

Transmission: Synchronized Mechanical Shuttle / Creeper

Drive Type: 2WD/4WD Option

Operating Weight: 6988 (2WD ROPS) / 7672 (4WD ROPS) / 7473 (2WD Cab) / 8157 (4WD Cab)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
FPT (Fiat Powertrain Technologies)
Model
F5G
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement (ci)
206.7
Bore (in)
3.898
Stroke (in)
4.331
Rated RPM
-
Power Output (hp)
86

Transmission

Type
Synchronized Mechanical Shuttle / Creeper
Forward Gears
12/20 (based on transmission type)
Reverse Gears
12/20 (based on transmission type)
Total Gears
-

Dimensions

Length (in)
163.1 (2WD) / 160.9 (4WD)
Width (in)
75.7
Height (in)
106.5 (ROPS) / 102.1 (cab)
Operating Weight (lb)
6988 (2WD ROPS) / 7672 (4WD ROPS) / 7473 (2WD Cab) / 8157 (4WD Cab)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD/4WD Option
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
