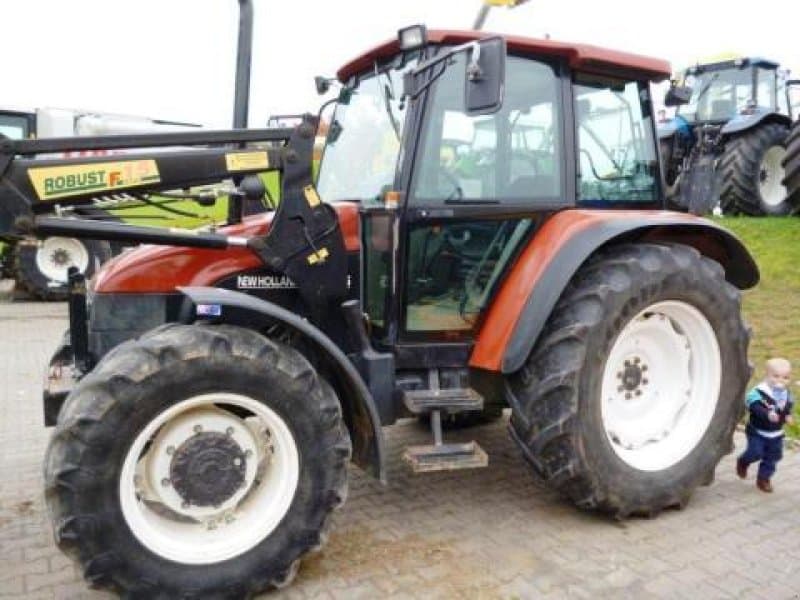

New Holland L95

Last Updated: June 2024

Overview

The New Holland L95 is a utility tractor that comes equipped with a 95 horsepower Iveco engine, offering robust performance for a range of farming tasks. It operates with a liquid-cooled turbocharged engine at a rated RPM of 2500, which includes an 8-valve configuration. The 238 ci engine displacement ensures reliable power delivery. This 2WD tractor features a 24-speed partial power shift transmission, which provides versatility for various operations. With power steering, operators can expect ease of maneuverability. The L95 comes standard with an open center hydraulic system and is capable of running ag tires sized 7.50-16 in the front and 13.6-38 in the rear. The weight range of this model extends from 6834 to 7936 pounds, depending on the specific configuration, and has a broad wheelbase for stability. The starting system is electric, ensuring quick and effortless engine start-ups. Differences are present between models with ROPS and those with a cab, affecting dimensions like height and coolant capacity. Overall, the L95 is built to offer durability and longevity for comprehensive agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 95

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 7936

Fuel Type: Diesel

New Holland L95 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
8045.25
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
238
Bore (in)
4.094
Stroke (in)
4.527
Rated RPM
2500
Power Output (hp)
95

Transmission

Type
Partial power shift
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
72.6
Height (in)
-
Operating Weight (lb)
7936

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
16.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
