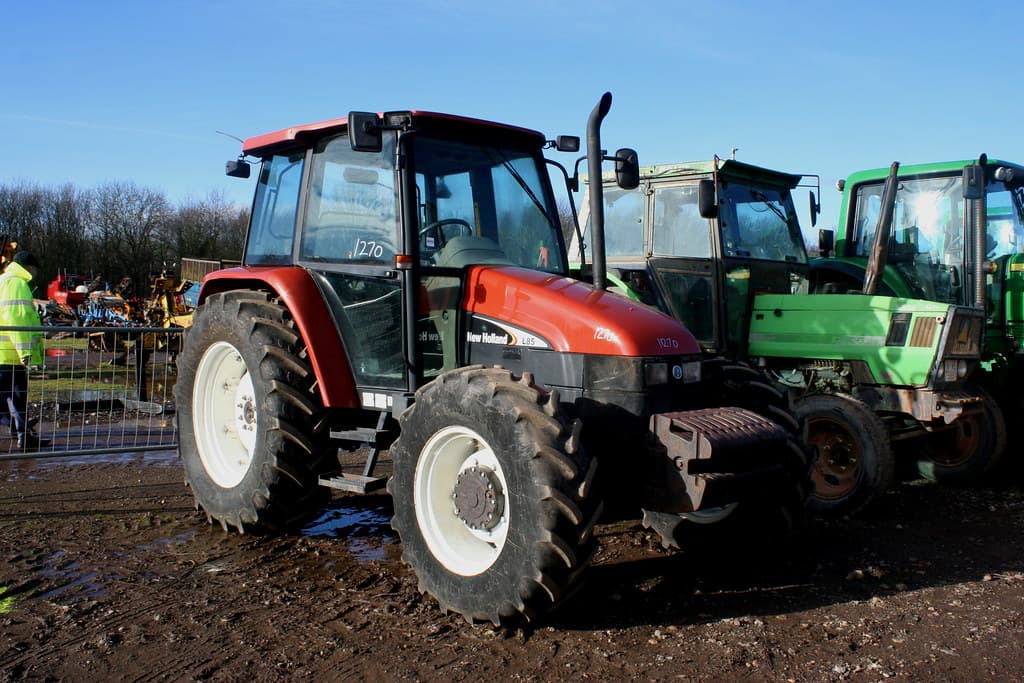

New Holland L85

Last Updated: June 2024

Overview

The New Holland L85 is a utility tractor that is powered by a turbocharged diesel engine. With an 85 hp (63.4 kW) Iveco 8045.25 engine, the tractor handles a variety of tasks with relative ease. The engine's large displacement of 238 ci and liquid cooling system ensure long hours of operation without concern for overheating. This is complemented by a 12-speed partially synchronized transmission with a sync shuttle, ensuring smooth transitions between gears and efficient field or transport work. The tractor sits on a 4x2 2WD chassis with a choice of a ROPS or a Cab operator station for the comfort and safety of the user. The rated RPM of the engine is 2,500, which, combined with the tractor's power, delivers robust performance for diverse agricultural tasks. The hydraulic system is based on an open center design, but more specific details about its capabilities are not provided. With a weight ranging from 6,834 to 7,936 pounds, the L85 is built to withstand heavy-duty applications.
Show more...

Key Specifications

Category: Utility

Power Output: 85

Transmission: Partially Synchronized with Sync Shuttle / Partial Power Shift

Drive Type: 2WD

Operating Weight: 6834 to 7936

Fuel Type: Diesel

New Holland L85 vs. Similar Tractors

Power Output
Above Average
Greater than 74% of similar tractors.
Operating Weight
Excellent
Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
8045.25
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
238
Bore (in)
4.094
Stroke (in)
4.527
Rated RPM
2500
Power Output (hp)
85

Transmission

Type
Partially Synchronized with Sync Shuttle / Partial Power Shift
Forward Gears
24-Dec
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
-
Width (in)
72.6
Height (in)
105.5 (ROPS) / 97.5 (Cab)
Operating Weight (lb)
6834 to 7936

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
14.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
