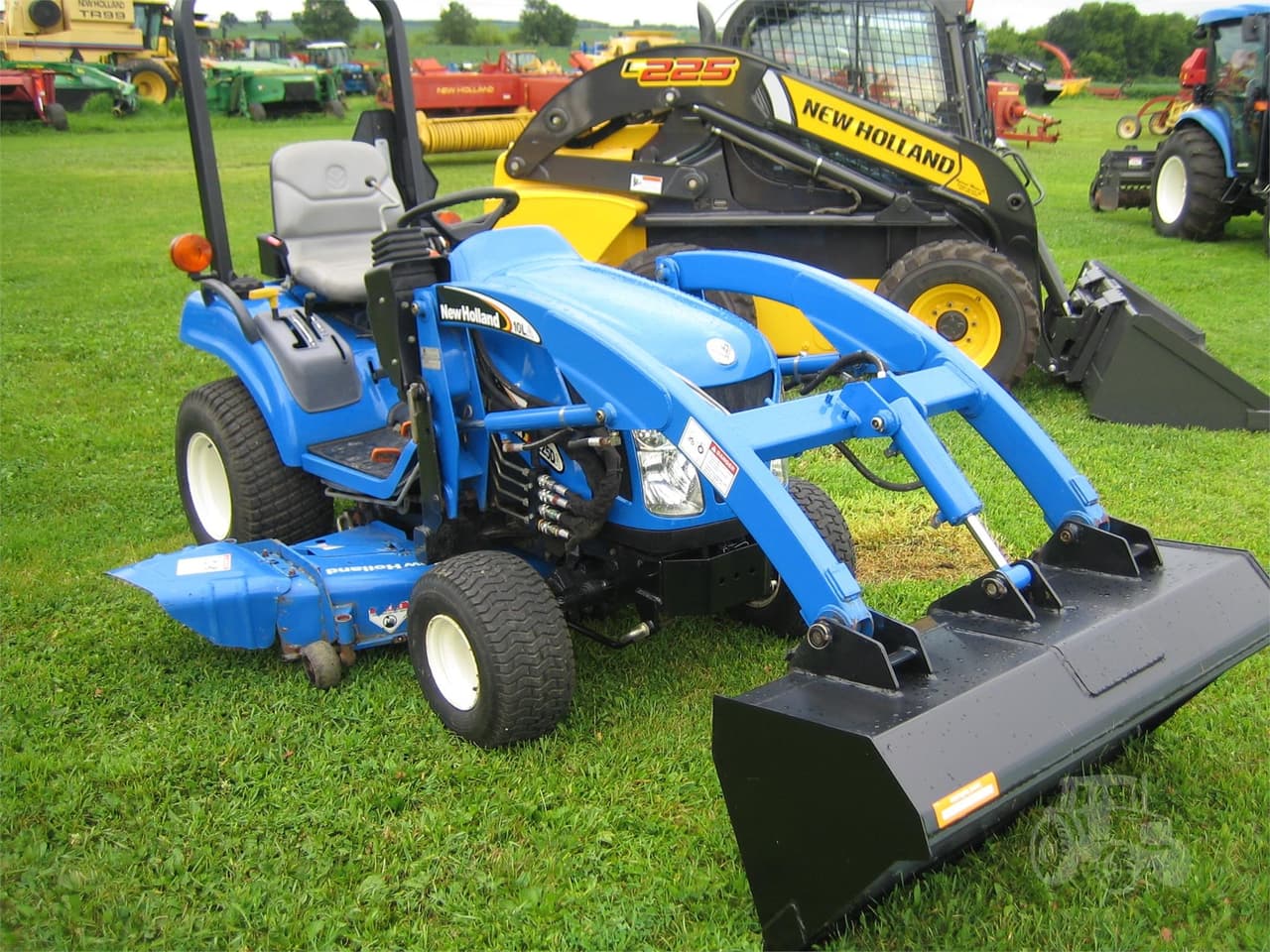

New Holland Boomer TZ25DA

Last Updated: June 2024

Overview

The New Holland Boomer TZ25DA is a sub-compact utility tractor, part of the Boomer TZ series, and was manufactured by New Holland from 2005 to 2008. It hosts a Shibaura S773, 1.0 L, three-cylinder diesel engine with a power output of 25 hp at 3000 RPM. The Boomer TZ25DA features a liquid-cooled inline engine situated within a 4x4 MFWD 4WD chassis. This model is facilitated by a hydrostatic transmission with infinite gears in a 2-range forward and reverse setup. It includes power steering, wet disc brakes, two-post ROPS, and is equipped to handle a rear hitch with a lift capacity of 699 lbs. Both a standard mid-PTO at 2200 RPM and an independent rear PTO at 540 RPM are installed. Notably, this tractor has industrial type tires but specific tire dimensions are not provided. Overall, the Boomer TZ25DA is designed for a variety of tasks and suited for small-scale farming, landscaping, and property maintenance.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 25

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1320

Fuel Type: Diesel

New Holland Boomer TZ25DA vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Hitch Capacity
Below Average
Greater than 16% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
S773
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
61.3
Bore (in)
3.03
Stroke (in)
2.83
Rated RPM
3000
Power Output (hp)
25

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
96.3
Width (in)
45.9
Height (in)
89.8
Operating Weight (lb)
1320

Power Take-Off (PTO)

PTO Type
Standard Mid and Independent Rear
PTO Speed 1 (rpm)
2200
PTO Speed 2 (rpm)
540
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
2008
Hitch Type
Category I
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
699 lbs
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Wet Disc
Hydraulic System Type
Open Center
