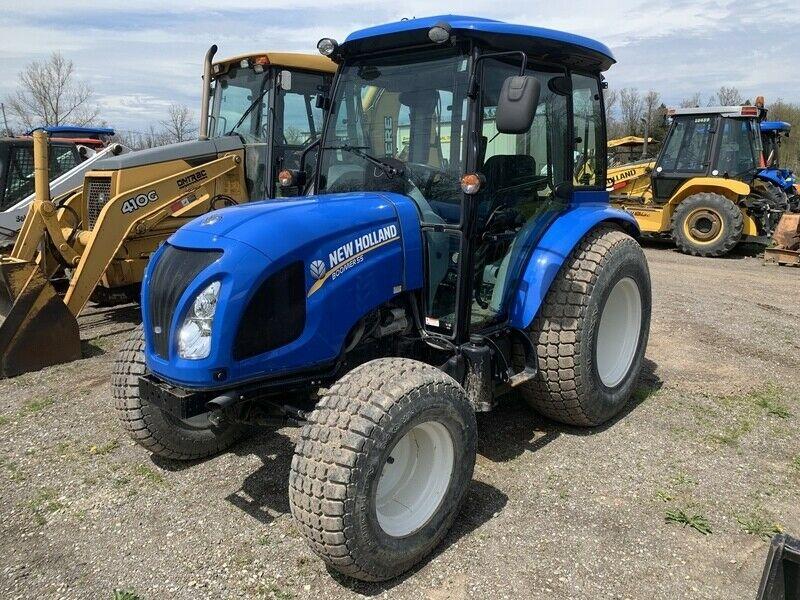

New Holland Boomer 55

Last Updated: June 2024

Overview

The New Holland Boomer 55 is a compact utility tractor designed for a range of tasks on smaller farms and properties. With a power output of 55 horsepower, this model is equipped with a turbocharged three-cylinder LS Mitron L3C19-T engine, which adheres to Tier IV emissions standards through methods such as exhaust gas recirculation and a diesel particulate filter. The tractor's chassis supports a 4x4 MFWD 4WD (mechanical front-wheel drive) providing enhanced traction across various terrains. Operators can benefit from the comfort of power steering and the flexibility offered by the 16-speed synchronized shuttle transmission. The Boomer 55 shows off its versatility by accommodating different tire options suited for agricultural, lawn, turf, or industrial applications. The tractor dimensions, with a length of 128.1 inches, width of 69.1 inches, and with the height varying between 97.1 inches with the ROPS and 94 inches with the cab, demonstrate the Boomer 55's substantial presence yet adequate size for maneuverability and operation in tighter spaces. The hydraulic system utilizes an open center type; however, specifics like PTO speeds and braking system details are not specified. With different configurations available, such as the hydrostatic transmission and choices between ROPS or a cab, the tractor is catered to a variety of user preferences and requirements. The weight of the tractor can range from 3424 to 4194 pounds, depending on the chosen setup.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Drive Type: MFWD 4WD

Operating Weight: 4194 with cab (heaviest configuration)

Fuel Type: Diesel

New Holland Boomer 55 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Average
Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer
LS Mitron
Model
L3C19-T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
114.7
Bore (in)
3.465
Stroke (in)
4.055
Rated RPM
2600
Power Output (hp)
55

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
128.1
Width (in)
69.1
Height (in)
97.1 with ROPS / 94 with cab
Operating Weight (lb)
4194 with cab (heaviest configuration)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (assuming the tire size format is in inches)
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
24
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
