New Holland Boomer 41

Last Updated: June 2024

Overview

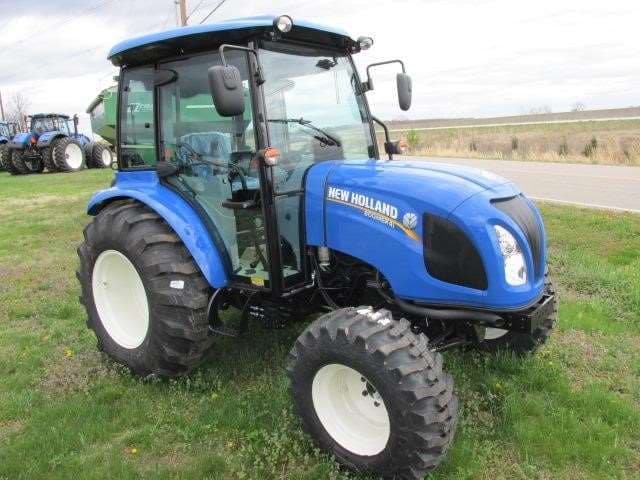

The New Holland Boomer 41 is a compact utility tractor that is designed to offer a versatile performance in a variety of agricultural tasks. Equipped with a 4-wheel drive and hydrostatic power steering, it provides easy maneuverability and handling. At the heart of the Boomer 41 is a Shibaura N844L 4-cylinder diesel engine that delivers 40.2 horsepower and a rated RPM of 2600. This engine features liquid cooling and indirect injection, which ensure reliable performance and adherence to Tier IV emissions standards through advanced methods like exhaust gas recirculation, diesel particulate filtering, and a diesel oxidation catalyst. The Boomer 41 comes with a choice of two transmission systems: a hydrostatic transmission with infinite (3-range) forward and reverse gears, and a partially synchronized transmission offering 16 forward and reverse gears. The tractor's wheelbase measures at 73.2 inches, and its overall dimensions maintain a presence that's large enough for effective work but compact enough for ease of movement. Weighing between 3424 to 3490 pounds and with a hydraulic system operating under an open-center design, the Boomer 41 is built for a variety of tasks while ensuring an efficient operation.
Show more...

Key Specifications

Category: Utility

Power Output: 40.2 hp

Transmission: hydrostatic and partially synchronized with mechanical shuttle

Drive Type: 4WD

Operating Weight: 3424 to 3490

Fuel Type: diesel

New Holland Boomer 41 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
4-cylinder
Displacement (ci)
135.2 ci
Bore (in)
3.307
Stroke (in)
3.937
Rated RPM
2600
Power Output (hp)
40.2 hp

Transmission

Type
hydrostatic and partially synchronized with mechanical shuttle
Forward Gears
Infinite (3-range) forward and 16 forward
Reverse Gears
Infinite (3-range) reverse and 16 reverse
Total Gears
-

Dimensions

Length (in)
128.1
Width (in)
69.1
Height (in)
97.1 (ROPS)
Operating Weight (lb)
3424 to 3490

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
ag
Manufacture - End Year
-
Hitch Type
I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
