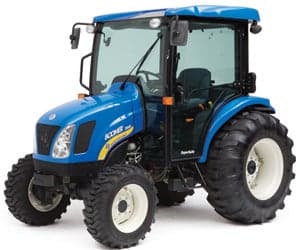

New Holland Boomer 3045

Last Updated: June 2024

Overview

The New Holland Boomer 3045 is a compact utility tractor that offers versatility and agility for a range of agricultural tasks. With a 4x4 MFWD (mechanical front-wheel drive) chassis and hydrostatic power steering, it is designed to deliver enhanced traction and ease of handling in varied terrain. This tractor is powered by a Shibaura N844L 4-cylinder liquid-cooled diesel engine with a displacement of 135.2 cubic inches, generating 45 horsepower at 2600 RPM. It features several transmission options that include hydrostatic powershift, gear, and a continuously variable transmission (CVT), with infinite gear selections for forward and reverse drive. The tractor's operator station details are not explicitly stated, but it offers both options with ROPS and cab configurations, which do have differing height dimensions. The New Holland Boomer 3045 has an open-center hydraulic system, and it rides on 8.0x16 front agricultural tires and 14.9x24 rear agricultural tires, supporting its capability in a wide range of tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 45 hp

Transmission: Multiple (hydrostatic powershift, gear, CVT)

Drive Type: MFWD 4WD

Operating Weight: 3497 to 4115 pounds

Fuel Type: diesel

New Holland Boomer 3045 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
natural aspiration (assumed since turbocharging not specified)
Cylinders
4-cylinder
Displacement (ci)
135.2 ci
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
45 hp

Transmission

Type
Multiple (hydrostatic powershift, gear, CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
122 inches
Width (in)
68.3 inches
Height (in)
Unknown (Height with ROPS is 97.4 inches, height with cab is 90.3 inches)
Operating Weight (lb)
3497 to 4115 pounds

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
Unknown (6.4 qts listed as oil capacity)
Front Tire Diameter (in)
Unknown (Size mentioned 8.0x16)
Front Tire Width (in)
Unknown (Size mentioned 8.0x16)
Rear Tire Diameter (in)
Unknown (Size mentioned 14.9x24)
Rear Tire Width (in)
Unknown (Size mentioned 14.9x24)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-point hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (ROPS and cab heights suggest both types may be available)
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
