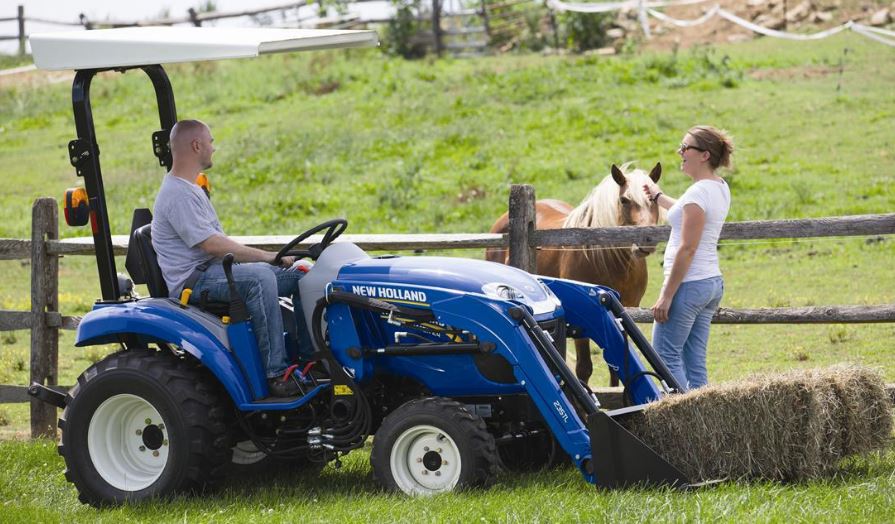

New Holland Boomer 24

Last Updated: June 2024

Overview

The New Holland Boomer 24 is a 4WD sub-compact utility tractor designed for various light-duty tasks. Manufactured by LS for New Holland, it is equipped with a Mitsubishi S3L three-cylinder, naturally aspirated diesel engine with a displacement of 80.4 ci. It produces 24 hp at 2,700 RPM and features a hydrostatic power steering and mechanical wet disc brakes. The tractor supports Category I hitch system, has an operating weight of 1832 lbs, and dimensions of 103.5 inches long, 43.7 inches wide, and 85.6 inches in height. The tractor offers ease of operation with features like hydrostatic transmission with infinite (2-range) forward and reverse gears, and an operator station with two-post foldable ROPS.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 24

Transmission: Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 1832

Fuel Type: Diesel

Image Gallery

New Holland Boomer 24 Tractor New Holland Boomer 24 Tractor New Holland Boomer 24 Tractor New Holland Boomer 24 Tractor New Holland Boomer 24 Tractor New Holland Boomer 24 Tractor

New Holland Boomer 24 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Hitch Capacity
Below Average
Greater than 27% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2700
Power Output (hp)
24

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
103.5
Width (in)
43.7
Height (in)
85.6
Operating Weight (lb)
1832

Power Take-Off (PTO)

PTO Type
Independent with Electro-hydraulic Clutch
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
1433
Operator Station Type
Two-pose Foldable ROPS
Starter Type
Electric
Brake Type
Mechanical Wet Disc
Hydraulic System Type
Open Center
