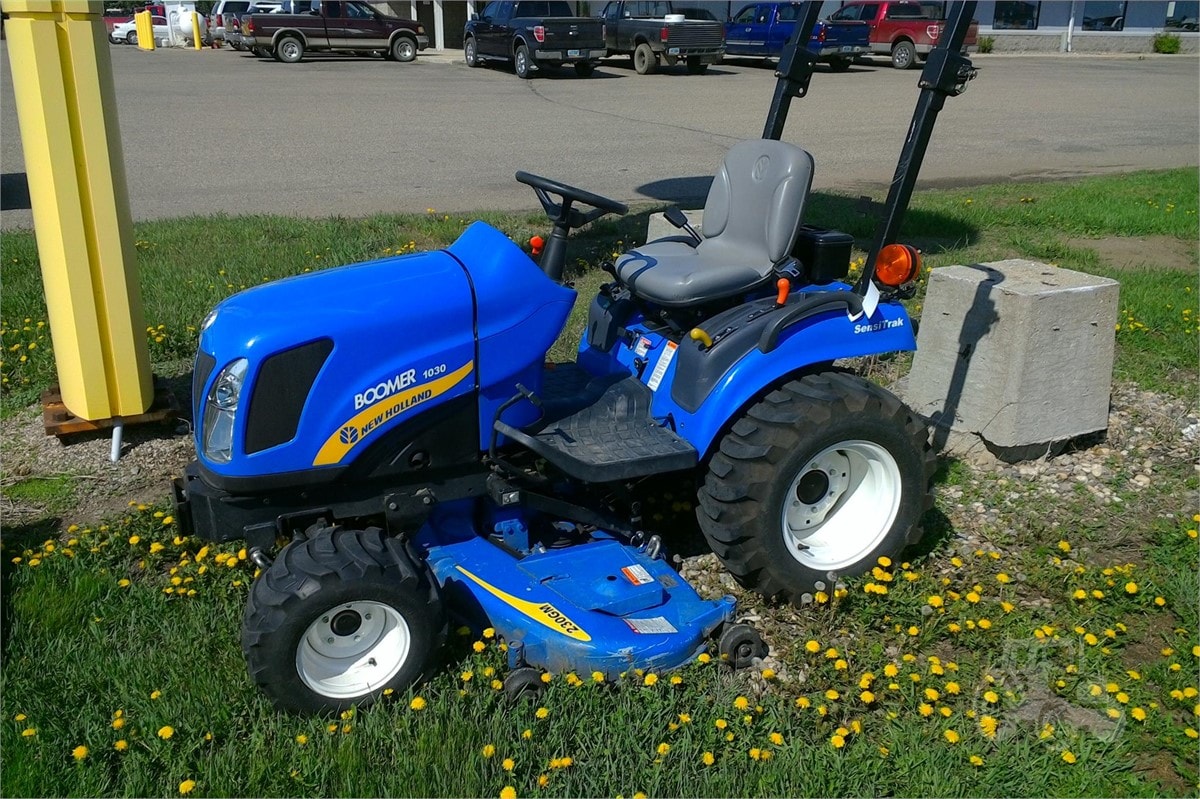

New Holland Boomer 1030

Last Updated: June 2024

Overview

The New Holland Boomer 1030 is a compact utility tractor equipped for a variety of tasks around the farm, estate, or landscaped area. It features a four-wheel drive (4x4 MFWD 4WD) chassis that enhances its capability over different terrains. With power steering and hydrostatic transmission offering infinite ranges in both forward and reverse gears, it provides the operator with a smooth and manageable driving experience. The tractor houses a Shibaura S773L three-cylinder liquid-cooled diesel engine, which produces a gross power of 28 horsepower at a rated RPM of 3100. The engine's displacement reaches 69 cubic inches and includes glow plugs for easier starting in cold conditions. The tractor's dimensions accommodate its utility nature, measuring 98.5 inches in length, 52 inches in width, and with a height at the ROPS of 76 inches. Rolling on industrial-type tires, the tractor maintains a ground clearance of 7.8 inches, ensuring it navigates well over uneven fields. The Boomer 1030 weighs in at 1,492 pounds and includes features like an open center hydraulic system to facilitate a variety of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 28

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1492

Fuel Type: Diesel

New Holland Boomer 1030 vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
S773L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (Assumption based on lack of data indicating turbocharging or supercharging)
Cylinders
3
Displacement (ci)
69
Bore (in)
-
Stroke (in)
-
Rated RPM
3100
Power Output (hp)
28

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
98.5
Width (in)
52
Height (in)
76 (ROPS)
Operating Weight (lb)
1492

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
4.2
Front Tire Diameter (in)
Unknown (spec provided is tire model/size, not diameter)
Front Tire Width (in)
Unknown (spec provided is tire model/size, not width)
Rear Tire Diameter (in)
Unknown (spec provided is tire model/size, not diameter)
Rear Tire Width (in)
Unknown (spec provided is tire model/size, not width)
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Assumption based on Height (ROPS) specification)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
