New Holland 9684

Last Updated: July 2024

Overview

The New Holland 9684 is a large, powerful tractor designed for heavy-duty farm work. It features a robust cumulative diesel engine which is both turbocharged and liquid-cooled, ensuring efficient and reliable performance. With its six-cylinder engine displacing 855 cubic inches and boasting 360 horsepower, this tractor can handle a wide range of challenging tasks. It is configured with a 4x4 articulated chassis and equipped with an articulated power steering system, enhancing maneuverability in demanding environments. The transmission is a 12-speed partially synchronized Quadrasync with a hydraulic wet disc clutch, offering 12 forward gears and 4 reverse gears for versatile operation on the field. The operating weight of the tractor, with duals, is 30,630 pounds (13,893 kg), reflecting its ability to sustain heavy-duty applications. This model was manufactured from 2000 to 2001 and would serve well in large-scale agricultural operations requiring significant power and traction.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 360

Transmission: partially synchronized

Drive Type: 4WD

Operating Weight: 30630

Fuel Type: diesel

Image Gallery

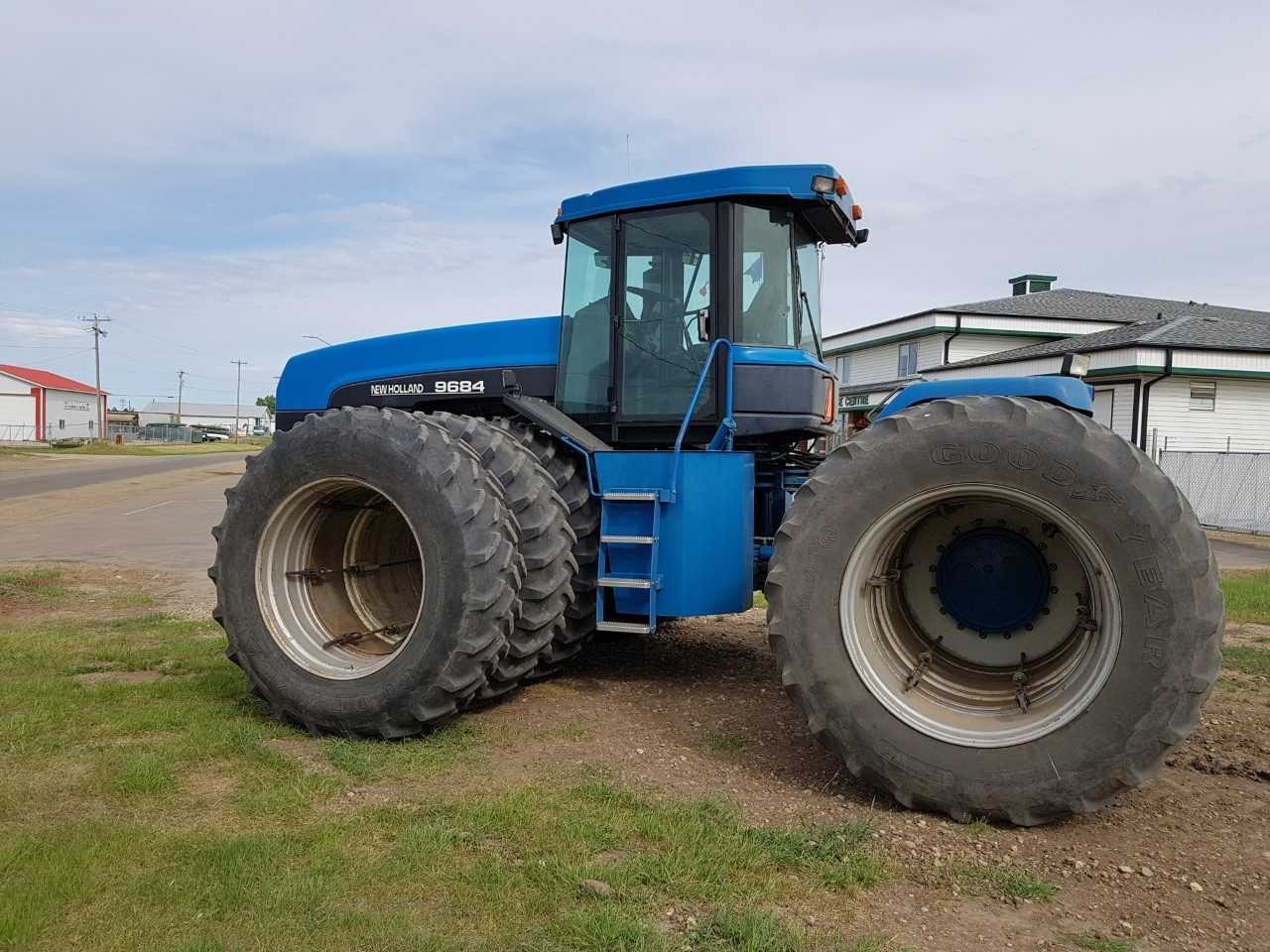

New Holland 9684 Tractor

New Holland 9684 vs. Similar Tractors

Power Output

Excellent

Greater than 96% of similar tractors.

Operating Weight

Above Average

Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: turbocharged
Cylinders: 6
Displacement (ci): 855
Bore (in): 5.5
Stroke (in): 6
Rated RPM: 2100
Power Output (hp): 360

Transmission

Type: partially synchronized
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 30630

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: articulated power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2001
Hitch Type: III/IVN
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volt
Brake Type: -
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: June-July, 2000

Maximum Power and Fuel Consumption

Maximum Power (Two Hours): 349.1 HP (260.3 kW) at 1800 rpm
Fuel Consumption at Maximum Power: 18.49 Gal/hr (69.99 l/h) with a fuel efficiency of 0.375 lb/hp.hr (0.228 kg/kW.h) and 18.88 Hp.hr/gal (3.72 kW.h/l)
Rated Engine Speed (PTO speed-997 rpm): 301.3 HP (224.7 kW) at 2100 rpm
Fuel Consumption at Rated Speed: 17.84 Gal/hr (67.53 l/h) with a fuel efficiency of 0.419 lb/hp.hr (0.255 kg/kW.h)

Drawbar Performance

Maximum Power (4th Gear): 277.2 HP (206.7 kW) with a drawbar pull of 22420 lbs (99.73 kN) and a speed of 4.64 mph (7.46 km/h)
Fuel Consumption at Maximum Power: 0.453 lb/hp.hr (0.276 kg/kW.h) with a fuel efficiency of 15.53 Hp.hr/gal (3.06 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1099 lb.-ft. (1490 Nm) at 1400 rpm
Torque Rise: 45.7%

Hydraulic Performance

Maximum Force Exerted: 15285 lbs (68.0 kN) at hitch points
Pump Delivery Rate at Minimum Pressure: 49.0 GPM (185.5 l/min)
Hydraulic Power: 56.2 HP (41.9 kW) at delivery pressure of 2175 psi (150 bar)

Tires and Weight

Rear Tires: Four 20.8R42; ply & psi 8 (55 kPa)
Front Tires: Four 20.8R42; ply & psi 12 (83 kPa)
Total Static Weight: 30795 lb (13968 kg)

Nebraska Tractor Test Lab.(2000).Nebraska Summary: S351 New Holland 9684. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2826
