New Holland 9282

Last Updated: June 2024

Overview

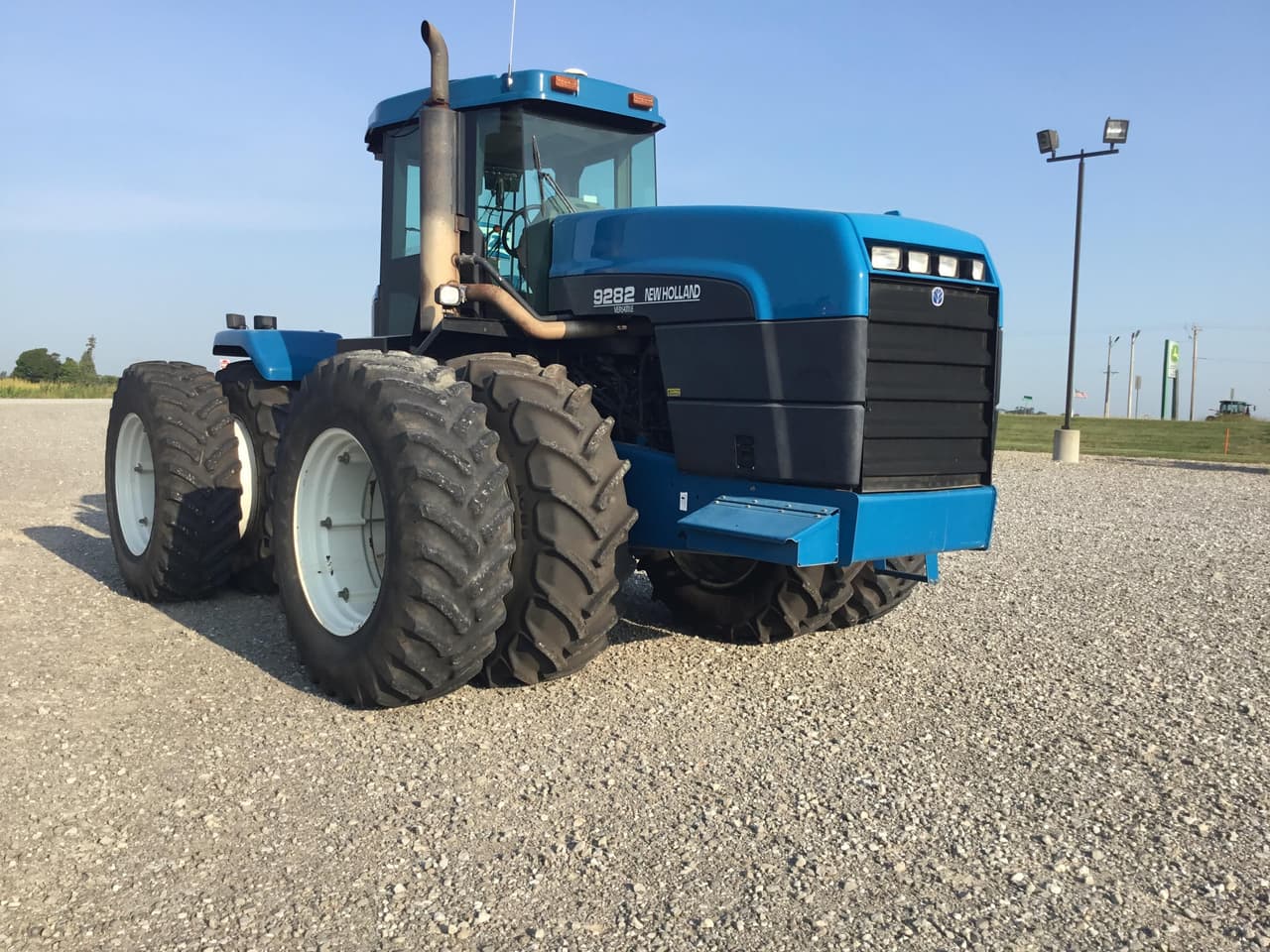

The New Holland 9282, a versatile and robust tractor, was manufactured by Versatile in Winnipeg, Manitoba, Canada, and distributed by New Holland from 1996 to 1999. Belonging to the 9082 series and designed primarily for utility applications with its 4x4 articulated four-wheel-drive chassis, it offers reliable performance and durability. The 9282 is powered by a turbocharged aftercooled Cummins C8.3 diesel engine, ensuring efficient operation with a liquid-cooling system. With a displacement of 505 cubic inches and a bore and stroke of 4.49 and 5.31 inches, respectively, it is capable of delivering 260 horsepower at 2200 RPM. The tractor's steering is hydrostatic power, and the 12 forward and 4 reverse gear partially synchronized transmission with a hydraulic wet disc clutch allows for smooth operation under various conditions. The NH 9282 is equipped with a comfortable cab that includes air-conditioning, making long working hours more bearable for operators. The dry disc hydraulic brakes ensure safety, and the tractor's large fuel tank capacity allows for extensive work periods without the need for frequent refueling. The tractor's lifting capabilities are considerable, with a hitch lift capacity of 13,000 pounds, conducive for a variety of tasks. Overall, the New Holland 9282 stands out for its robust build and reliable performance in a range of agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 260

Transmission: Partially synchronized

Drive Type: 4WD

Operating Weight: 24805

Fuel Type: Diesel

New Holland 9282 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Hitch Capacity
Above Average
Greater than 87% of similar tractors.
Operating Weight
Above Average
Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
C8.3
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
505
Bore (in)
4.49
Stroke (in)
5.31
Rated RPM
2200
Power Output (hp)
260

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
265.7
Width (in)
150.4
Height (in)
136.6
Operating Weight (lb)
24805

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic clutch
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
58
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
38
Tire Type
Ag
Manufacture - End Year
1999
Hitch Type
III/IVN (Optional)
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
13000
Operator Station Type
Cab with air-conditioning
Starter Type
Electric
Brake Type
Hydraulic dry disc
Hydraulic System Type
Closed center load sensing (CCLS)
