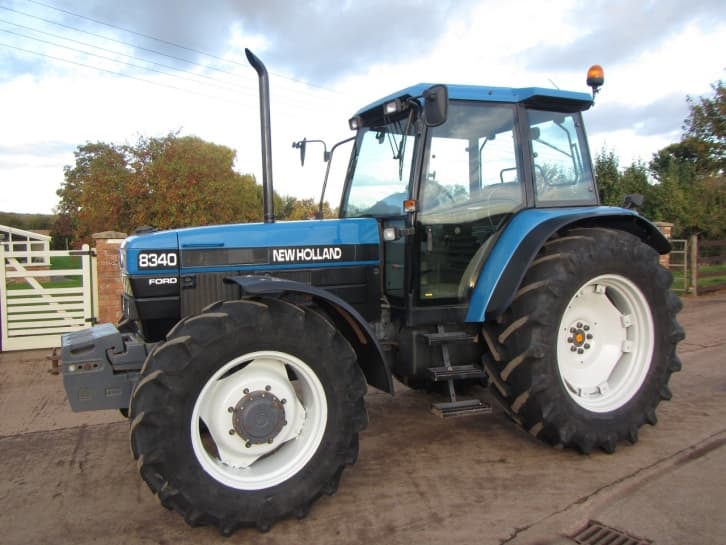

New Holland 8340

Last Updated: June 2024

Overview

The New Holland 8340 is a versatile row-crop tractor that was part of the PowerStar 40 series. Manufactured by New Holland in Basildon, England, the 8340 was in production from 1996 to 1997. It's equipped with a robust Ford Genesis 6-cylinder turbocharged diesel engine, offering a considerable 106 horsepower. It provides the convenience of a synchronized shuttle transmission with 12 forward and 12 reverse gears or a four-speed power shift transmission with 16 forward and 16 reverse gears. This tractor, suitable for various agricultural tasks, comes with options for 2WD or 4WD wheelbase configurations, ensuring adequate traction across different terrains. The 8340 also features hydrostatic power steering and hydraulic wet disc brakes for improved control and safety. Depending on the operator’s preference, it could be outfitted with either a two-post foldable ROPS or an optional Comfort Command Cab. The machine's large fuel tank capacity of 57.5 US gallons ensures extended working hours with lesser refueling breaks. It was designed to cater to demanding fieldwork with a durable build and an ergonomic design for operator comfort.
Show more...

Key Specifications

Category: Row Crop

Power Output: 106

Transmission: SynchroShift / ElectroShift / Pulse Command

Drive Type: 4WD

Operating Weight: 8684 to 10882

Fuel Type: Diesel

New Holland 8340 vs. Similar Tractors

Power Output
Below Average
Greater than 26% of similar tractors.
Operating Weight
Excellent
Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
Genesis
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.41
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
106

Transmission

Type
SynchroShift / ElectroShift / Pulse Command
Forward Gears
16-Dec
Reverse Gears
16-Dec
Total Gears
-

Dimensions

Length (in)
176
Width (in)
82.7
Height (in)
109.8
Operating Weight (lb)
8684 to 10882

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
21.1
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1997
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Two-post foldable ROPS / Comfort Command Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Gear pump (SL) / Closed center load sensing (SLE)
