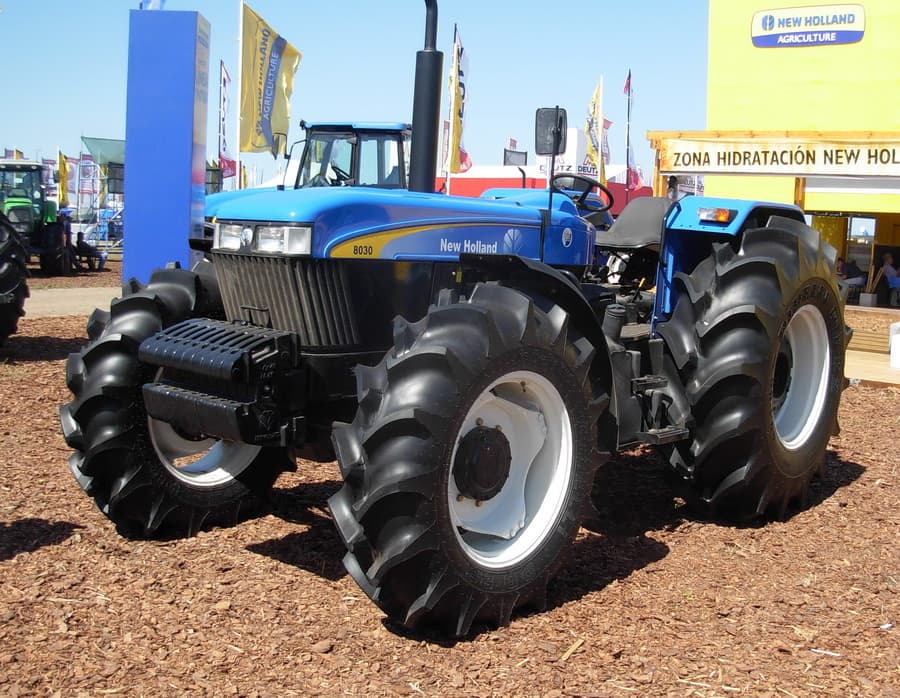

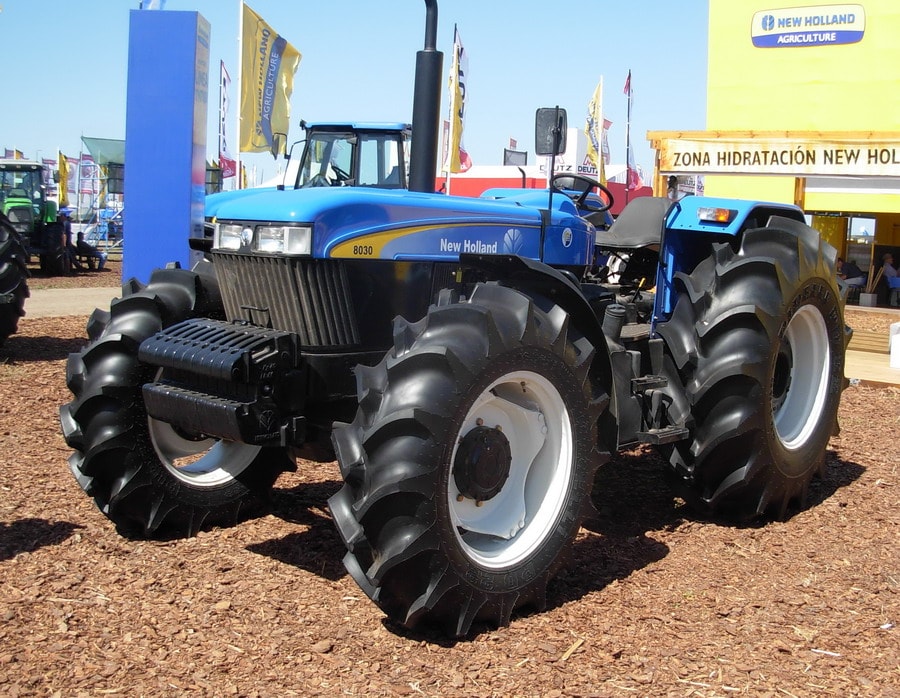

New Holland 8030

Last Updated: June 2024

Overview

The New Holland 8030 is a utility tractor encompassing a robust build suitable for a variety of agricultural tasks. Equipped with a 4x4 MFWD 4WD chassis, it is designed to provide exceptional traction and stability in diverse field conditions. The hydrostatic power steering contributes to ease of operation and maneuverability. Its heart lies in a 274.6 cubic inches turbocharged intercooled diesel engine, which produces 122 horsepower, contributing to its substantial power. Designed with efficiency in mind, the engine operates at a rated RPM of 2200 while delivering substantial torque. This model includes a 16-speed constant mesh transmission which further underscores its versatility by providing a wide range of speeds suitable for different tasks around the farm. Built between 2002 and 2007, the 8030 provides dependability and power, contained within its 9943-pound operating weight.
Show more...

Key Specifications

Category: Utility

Power Output: 122

Transmission: Constant mesh

Drive Type: 4WD

Operating Weight: 9943

Fuel Type: Diesel

New Holland 8030 vs. Similar Tractors

Power Output
Above Average
Greater than 88% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
274.6
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
122

Transmission

Type
Constant mesh
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
162.2
Width (in)
-
Height (in)
100.2 (ROPS), 112.6 (exhaust)
Operating Weight (lb)
9943

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2007
Hitch Type
-
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
